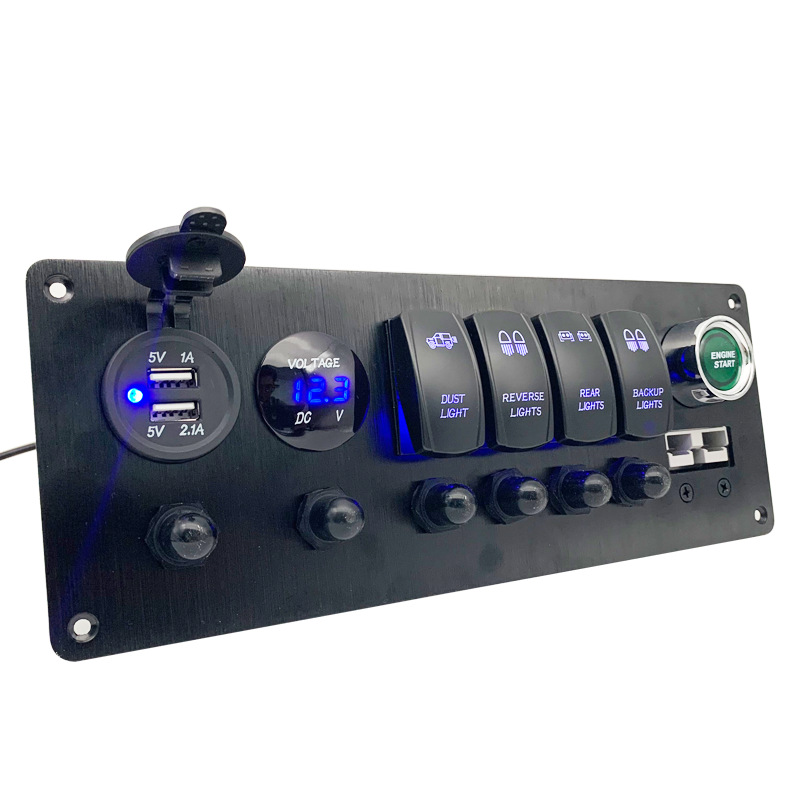

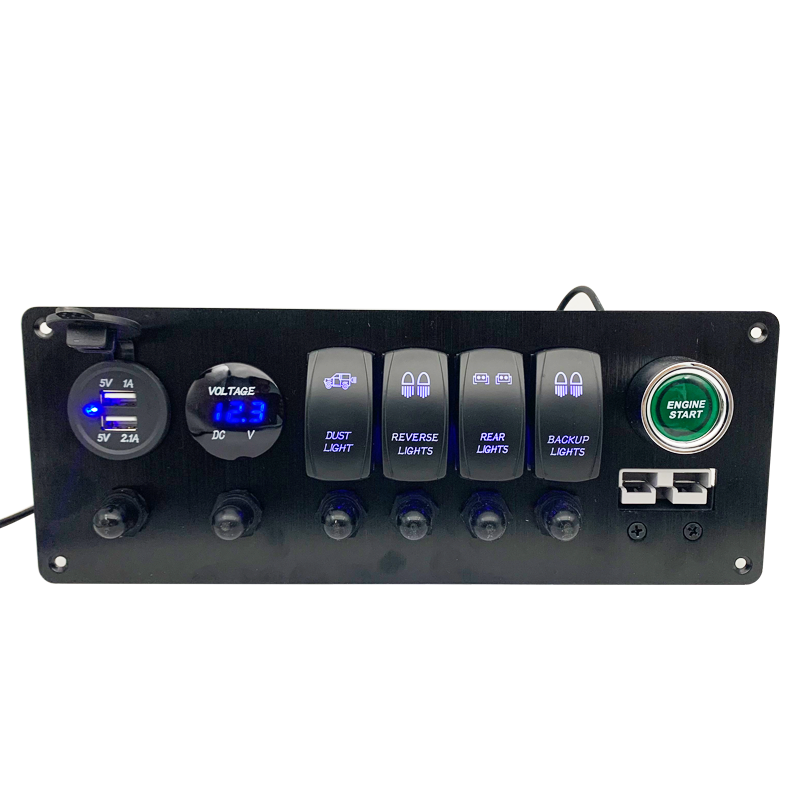

4-Gang Rocker Switch Panel with USB and Voltmeter
This 4-gang rocker switch panel is designed for 12V and 24V systems. It includes integrated USB charging ports and a voltmeter for monitoring electrical performance.
Technical Specifications
Product Overview
Versatile 4-Gang Control Panel
This multifunctional rocker switch panel is designed for comprehensive electrical management in marine and automotive environments. It integrates four illuminated toggle switches with a dual USB charging station, a digital voltmeter, and a dedicated engine start button. Constructed from a durable blend of aluminum and ABS, it provides a centralized, professional-grade solution for controlling lighting and monitoring battery health in 12V and 24V systems.
Technical Specifications
Electrical Ratings
20 A
Rating at 12V
10 A
Rating at 24V
3.1 A
Total USB Output
Operating Voltage
- 12V DC
- 24V DC
- Voltmeter Display Range
- 0 - 30V
Interface & Controls

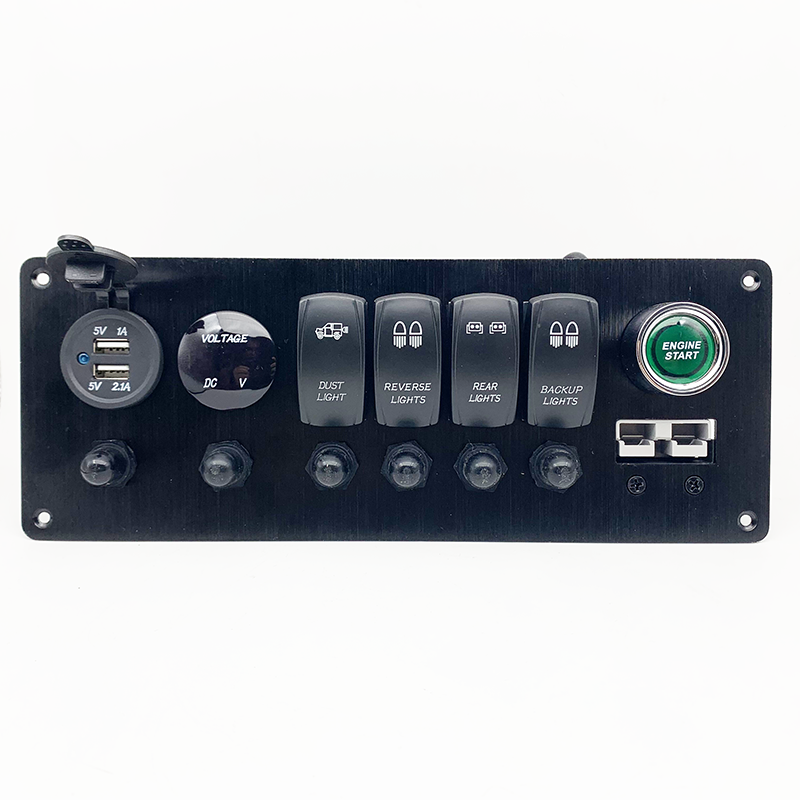

Standard Labels
- Dust Light
- Reverse Lights
- Rear Lights
- Backup Lights
- Control Interface
- 4-Gang RockerAircraft ToggleEngine Start ButtonTouch Sensitive
- Illumination Color
- Blue LED
Physical Construction
- Materials
- AluminumABSMetal
- Housing Finish
- Local Tyrant Gold (Customizable)

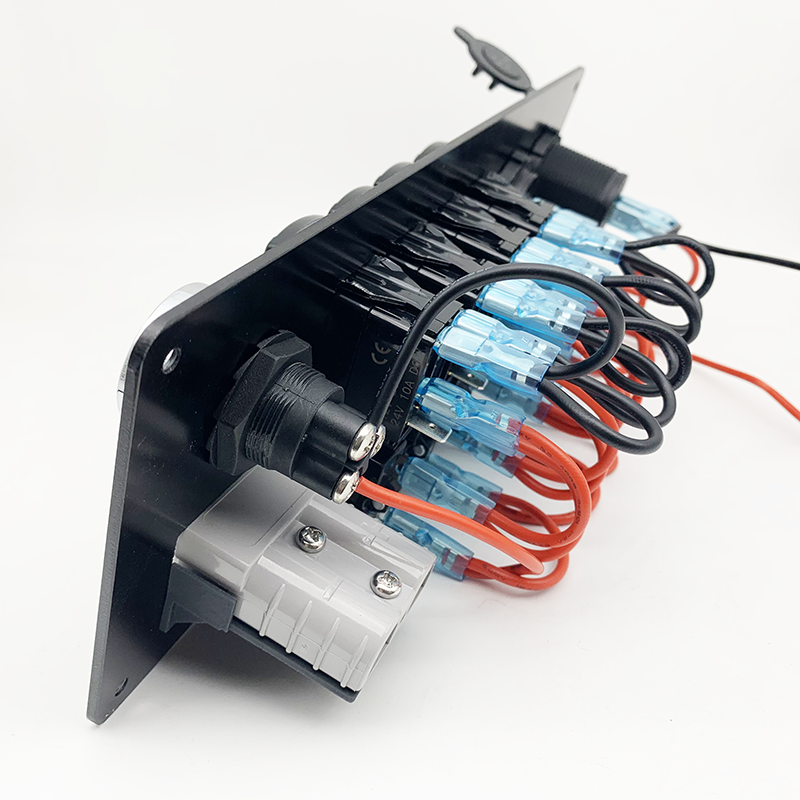

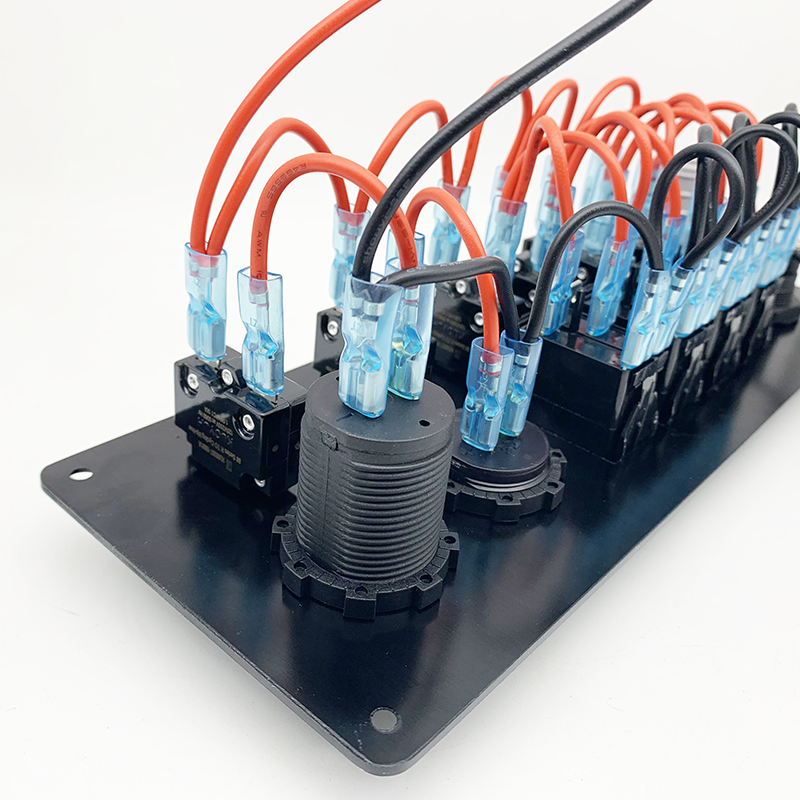

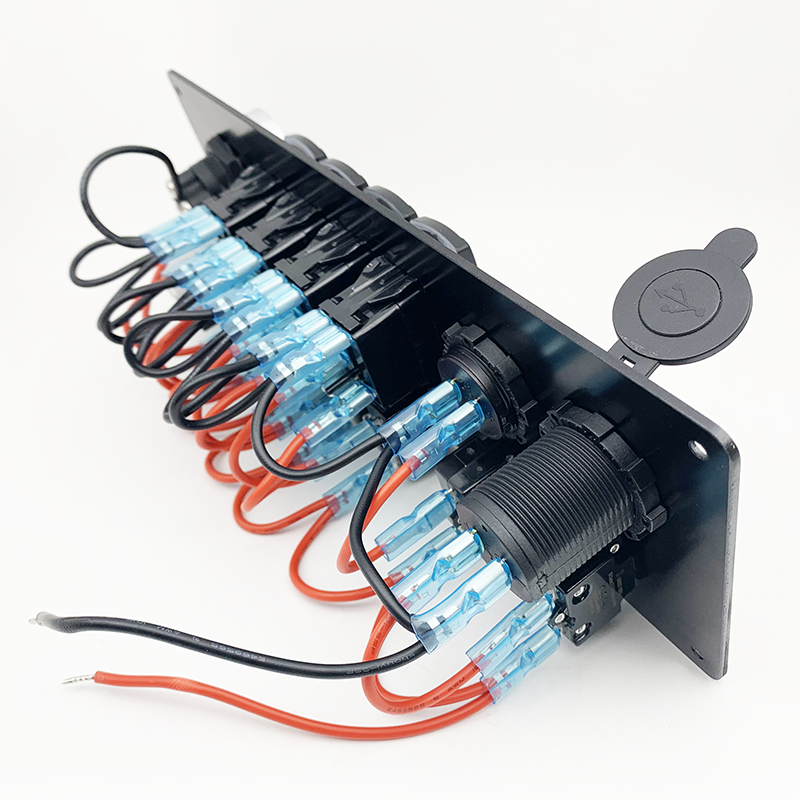

- Internal Wiring
- 12 AWG (AWM 1015)
Application
Compatible Applications
MarineBoatRVAuto CarYacht
- Installation Method
- Flush Mount / Pre-wired
