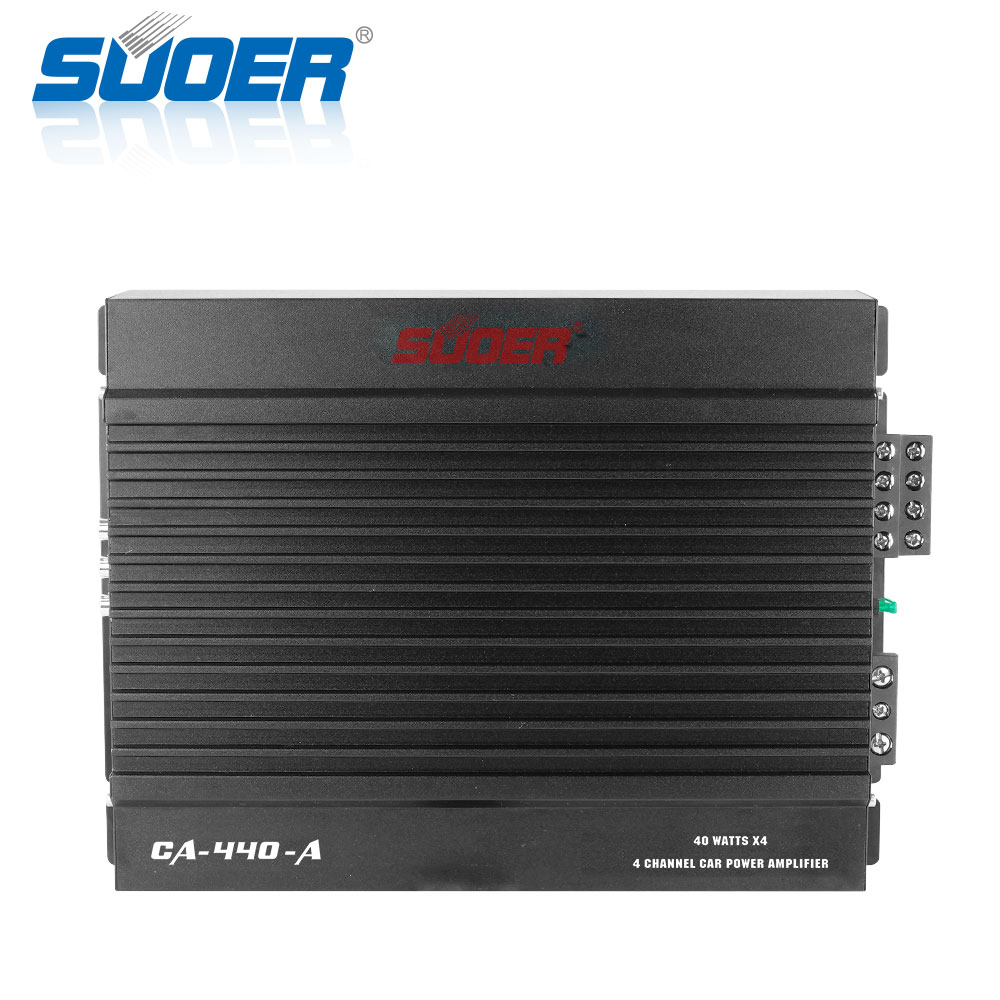

4-Channel 480W Class AB Car Amplifier
This 4-channel car amplifier delivers 480W of Class AB audio power. It enhances the sound quality of car audio systems, providing increased volume and clarity.
Technical Specifications
Overview
High-Performance 4-Channel Car Audio Enhancement
This Class AB car power amplifier is engineered to deliver high-fidelity audio with a focus on clarity and immersive 3D surround sound. Featuring a robust 4-channel configuration, it provides versatile power options for various speaker setups while maintaining exceptionally low distortion levels. Designed for professional-grade car audio systems, it offers adjustable tuning controls to ensure a premium listening experience on every journey.
Performance Metrics
Power Output
40 W x 4
RMS Power (4Ω)
60 W x 4
RMS Power (2Ω)
480 W
Peak Power
Audio Specifications
Technical Audio Parameters
| Parameter | Value |
|---|---|
| Amplifier Class | Class AB |
| Signal-to-Noise Ratio (SNR) | > 92dB |
| Total Harmonic Distortion (THD) | < 0.01% |
| Frequency Response | 15 Hz - 40 kHz (-3 dB) |
| Input Sensitivity | 0.15V - 5V |
Acoustic Tuning
Sound Customization
- Adjustable Low-Pass Filter: 20 Hz - 250 Hz
- Adjustable High-Pass Filter: 20 Hz - 250 Hz
- Bass Boost Control: 0 - 12 dB
- Independent Gain Control for CH1/CH2 and CH3/CH4
- 3D Surround Sound Processing
Electrical & Physical
Grounding System
Negative Ground
- Operating Voltage
- 14.4V DC (Range: 9V - 15V)
- Protection Fuse
- 30 A
- Net Weight
- 1.93 kg
