Technical Specifications
Product Overview

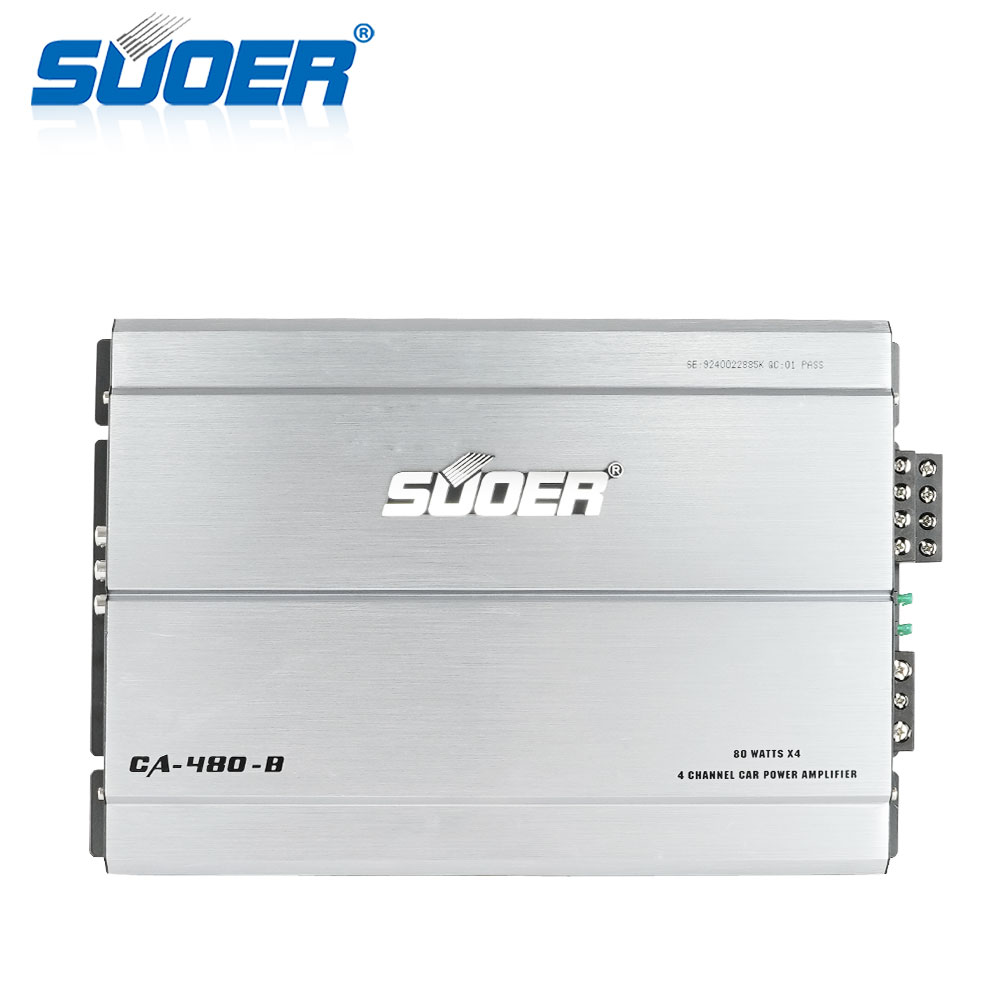

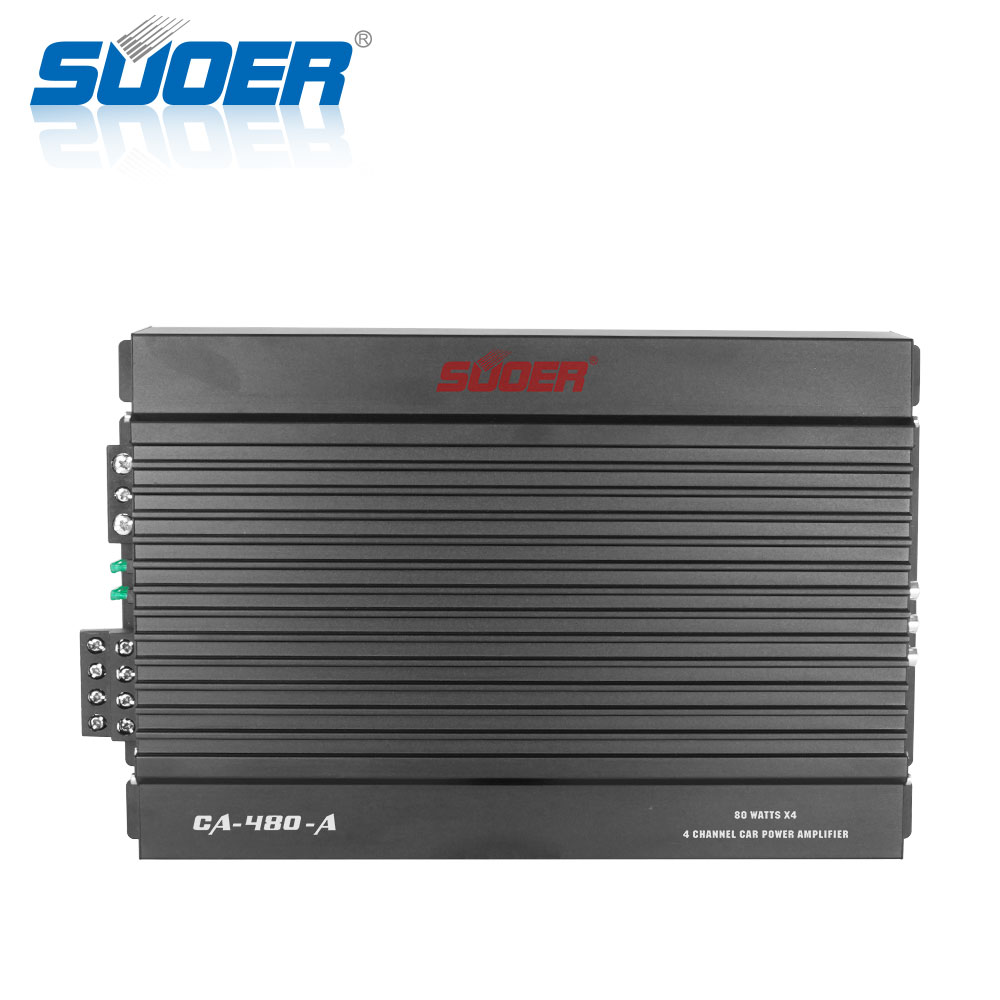

High-Performance 4-Channel Car Audio Amplifier
This Class AB car power amplifier is designed to deliver high-quality audio performance with a robust 1000W peak capability. Featuring a 4-channel configuration, it provides versatile power output for car speakers and subwoofers, ensuring clear and immersive sound reproduction. The unit is built with a finned heat sink for efficient thermal management and includes integrated protection circuitry to safeguard against overloads and short circuits.
Performance Metrics
Key Performance Metrics
80 W x 4
RMS Power (4Ω)
92 dB
Signal-to-Noise Ratio
0.01 %
Total Harmonic Distortion
Audio Specifications
Amplifier Class
Class AB
- Frequency Response
- 15Hz - 40kHz (-3dB)
- Input Sensitivity
- 0.15V - 5V
- THD (Total Harmonic Distortion)
- <0.01%
Crossover & Tuning
- Low-Pass Frequency
- 20Hz - 250Hz
- High-Pass Frequency
- 20Hz - 250Hz
- Bass Boost
- 0 - 12dB
Electrical & Power
- Operating Voltage
- 14.4V (9V-15V) Negative Ground
- Fuse Protection
- 30A x 2
Physical Characteristics
Design Features
- Finned heat sink for efficient heat dissipation
- Robust chassis for durability
- Standard input and output terminals
- Integrated protection circuitry
- Dimensions
- 340mm x 230mm x 50mm
- Net Weight
- 2.27 kg
