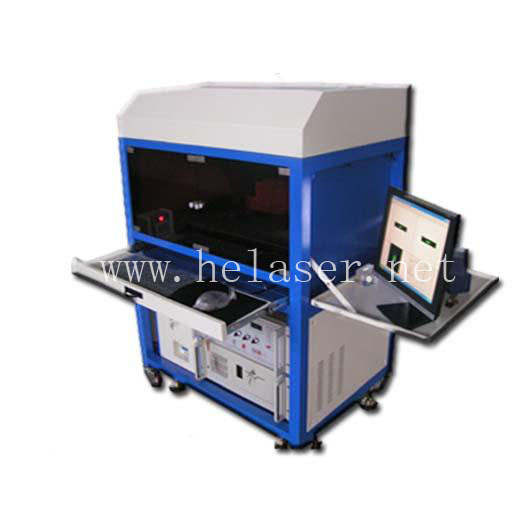

3D Laser Subsurface Engraving Machine for Crystal and Glass
This 3D laser subsurface engraving machine is designed for creating intricate designs within crystal and glass. It utilizes advanced laser technology to produce high-resolution, three-dimensional engravings without affecting the surface of the material.
Technical Specifications
Product Overview
Advanced 3D Subsurface Engraving

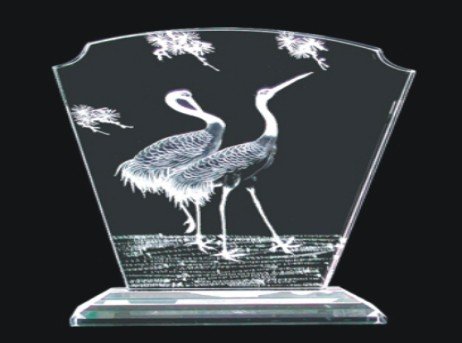

This laser processing equipment integrates advanced optics, precision mechanics, and computer-controlled systems to engrave intricate 3D patterns inside transparent crystal and glass. Utilizing a non-touch laser process, it ensures the material surface remains perfectly intact while creating high-resolution, crystal-clear imagery. Designed for high reliability and continuous operation, this machine is ideal for producing personalized gifts, decorative items, and high-precision glass art.
Performance Metrics
Engraving Speed
6,000 dots/min
Max Speed
4,000 dots/min
Min Speed
Laser Specifications
| Parameter | Value |
|---|---|
| Laser Medium | Xe lamp pumped |
| Laser Power | 3 W |
| Pulse Width | 12 ns |
| Beam Quality (M2) | < 15 |
Operational Capabilities
Precision & Accuracy
- Positioning Accuracy: 0.005 mm
- Focus Diameter: 0.06 mm
- Effective Engraving Area
- 250 x 250 x 80 mm
- Supported Graphic Formats
- DXFBMP
System Requirements
- Working Power
- AC380V±10%/50-60Hz or AC220V±10%/50-60Hz
- Operating Temperature
- 35 °C
Physical Dimensions
- Outline Dimensions
- 900 x 770 x 1400 mm
- Weight
- 330 kg
