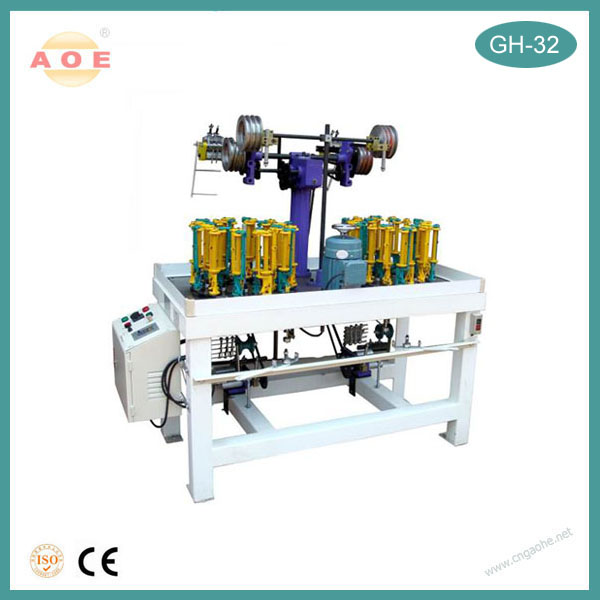

32-Spindle High-Speed Lace Braiding Machine
This high-speed braiding machine features 32 spindles for efficient lace production. It is designed to produce intricate patterns for various textile applications.
Technical Specifications
Overview
High-Efficiency Lace Braiding Solution
The 32-Spindle High-Speed Lace Braiding Machine is engineered for the rapid production of intricate textile components including RIC-RAC lace, piping tape, and jacquard bands. This dual-head system combines a robust cast-iron construction with high-frequency surface treatments to ensure long-term precision and stability. Designed with human-centric maintenance in mind, it features an automated yarn cutting device and frequency converter for flexible speed control, making it an ideal choice for high-volume apparel and industrial textile manufacturing.
Performance Metrics
Key Performance Metrics
Technical Specifications
Machine Parameters
| Parameter | Value |
|---|---|
| Model | GH-32 |
| Machine Dimensions | 1370 x 950 x 1700 mm |
| Bobbin Dimension | 48 x 140 mm |
| Motor Power | 0.75 kW |
| Voltage Support | 220/380 VAC, 50/60Hz |
Applications
- Common Applications
- RIC-RAC LacePiping TapeJacquard TapeElastic BandFibre BandShoelacesSpecialty Ropes
Engineering Advantages
Construction & Durability
- Base casting machined after aging treatment for perfect flatness
- Panel uses ductile iron 800 for superior wear resistance
- Core shaft rotor (impeller) features high-frequency surface hardening
- Precision-controlled tolerance (within 0.03mm) between spindle base and impeller
- Nylon 66 rotor pads with imported wearing-grease for extended lifespan
Operational Features
Operational Efficiency
- Integrated auto yarn cutting device
- Frequency converter for stepless speed adjustment
- Quick-change bobbin spindle structure
- Humanized design for safe and easy maintenance
Logistics & Compliance
Compliance
Delivery Details
Orders under 10 sets are packed in individual wooden cases with a 20-day lead time. Larger orders exceeding 10 sets are loaded into full containers with a 30-day delivery schedule. Export services include goods checking upon request and multiple port options including Shanghai, Ningbo, and Shenzhen.
