32-Meter Concrete Placing Boom
This concrete placing boom has a 32-meter reach and a 3-section boom for flexible operation. Its hydraulic system allows for smooth and controlled movements, ensuring accurate concrete delivery.
Technical Specifications
Overview
High-Efficiency Concrete Placement

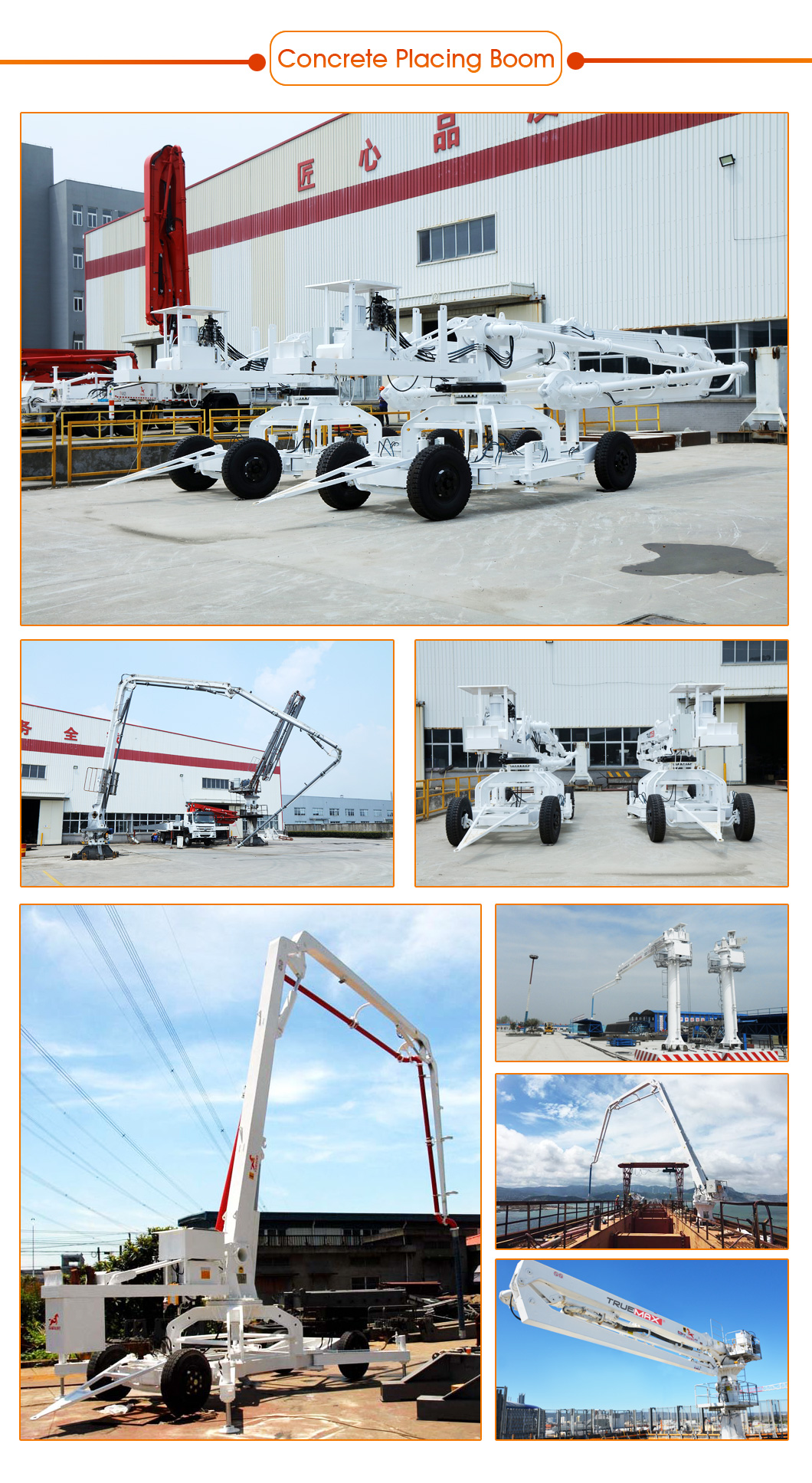

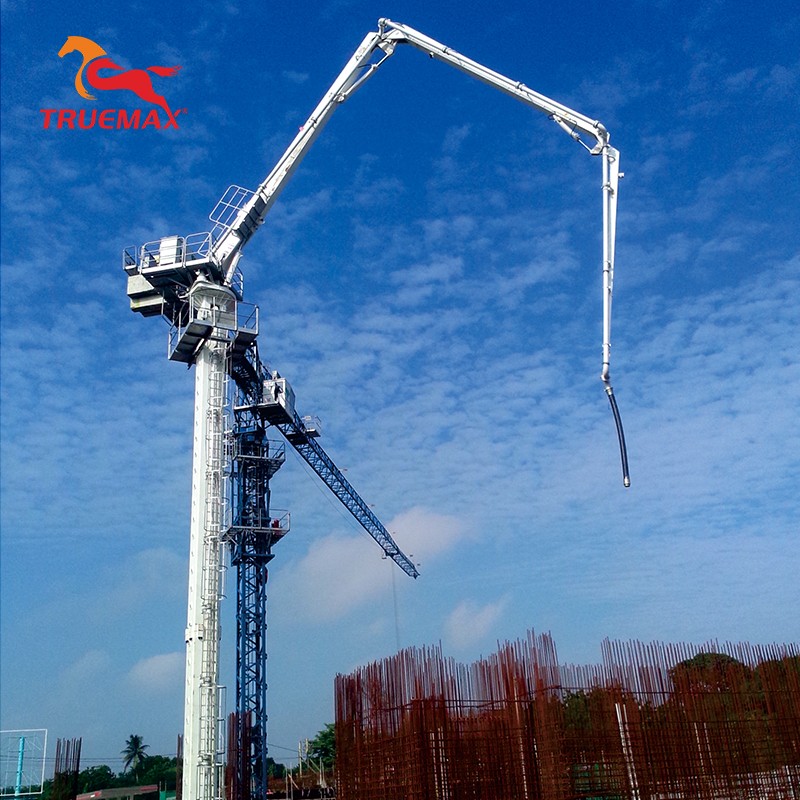

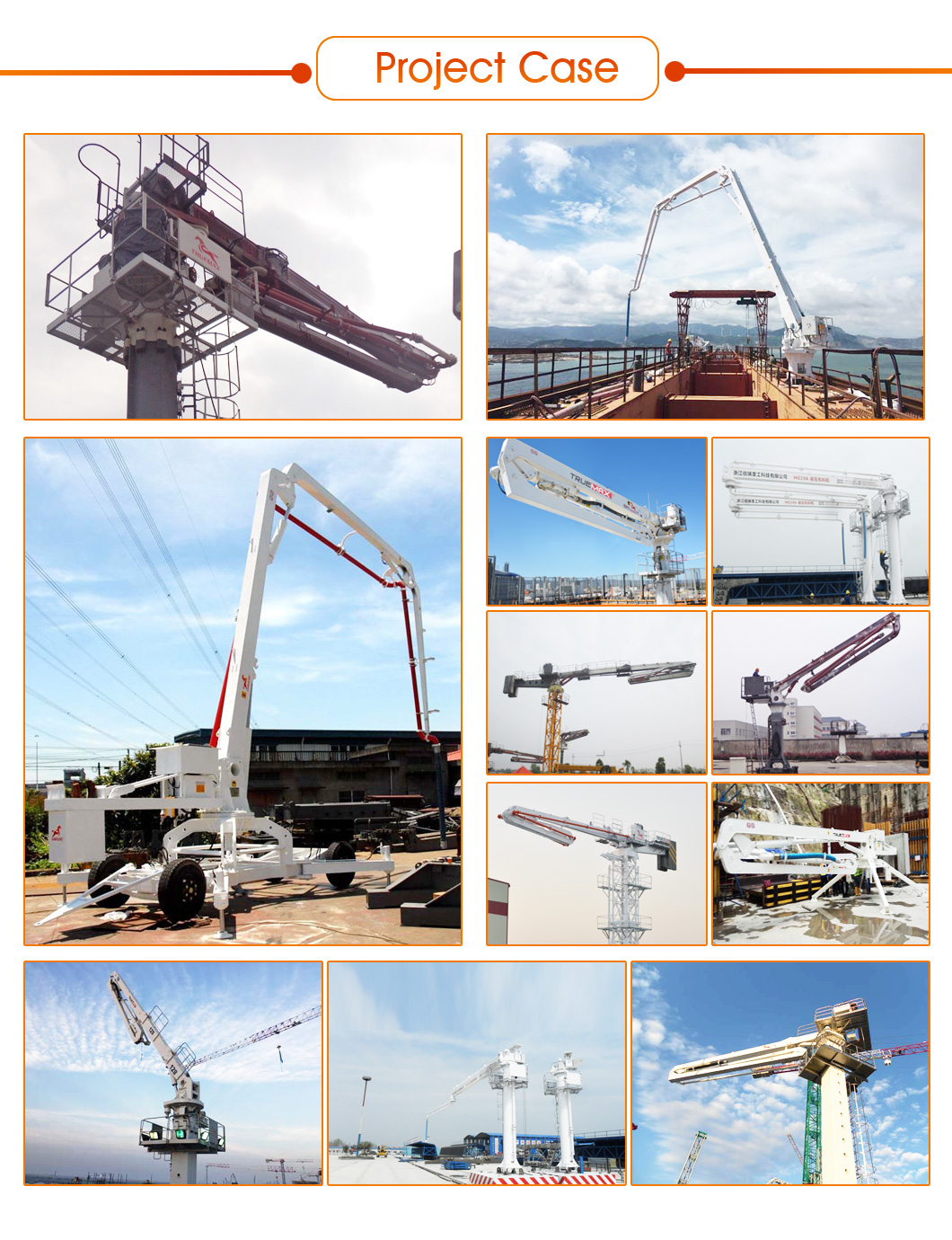

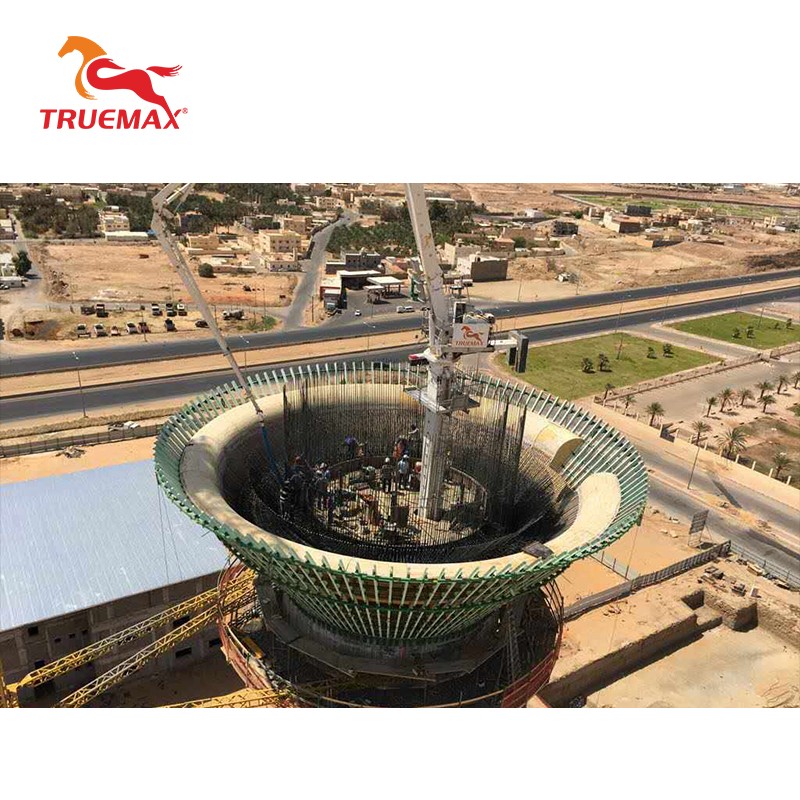

The PB32A-3R-II is a versatile 32-meter hydraulic concrete placing boom designed for precise distribution in high-rise buildings, bridges, and large-scale construction projects. Featuring a 3-section R-type boom configuration, it offers exceptional maneuverability and a full 360-degree slewing range to navigate complex site obstacles. Its modular, lightweight design facilitates easy installation and floor or shaft climbing, significantly reducing labor costs and improving overall project efficiency.
Key Performance Metrics
Performance Metrics
31.7 m
Max Placing Radius
21.3 m
Free-standing Height
360 °
Slewing Range
11 kW
Motor Power
Boom Configuration
Boom Section Details
| Section | Length (m) | Articulation Range |
|---|---|---|
| 1st Section | 14.5 | 0° to 86° |
| 2nd Section | 9.2 | 0° to 180° |
| 3rd Section | 8 | 0° to 180° |
Technical Specifications
- Hydraulic System Pressure
- 28 MPa
- Total Machine Weight
- 18150 kg
- Delivery Pipeline Diameter
- Φ133 x 4.5 mm
- Operating Temperature Range
- -20°C to 55°C
Features & Options
Climbing Modes
- Floor climbing
- Shaft climbing
Design Advantages
- Integrated hydraulic pump station and electric cabinet
- No balance arm for flexible slewing
- Lightweight design for floor loading safety
- Customizable column lengths (4M, 5M, 6M, 10M)
- Push-in hydraulic connectors for easy maintenance
- Control Systems
- HBC Remote ControlAUTEC Remote ControlElectric Proportional ControlRadio Remote ControlCable Remote Control
Compliance
Quality Standards
ISO 9001:2015ISO 14001OHSMS 18001CE Certified2014/35/EU
