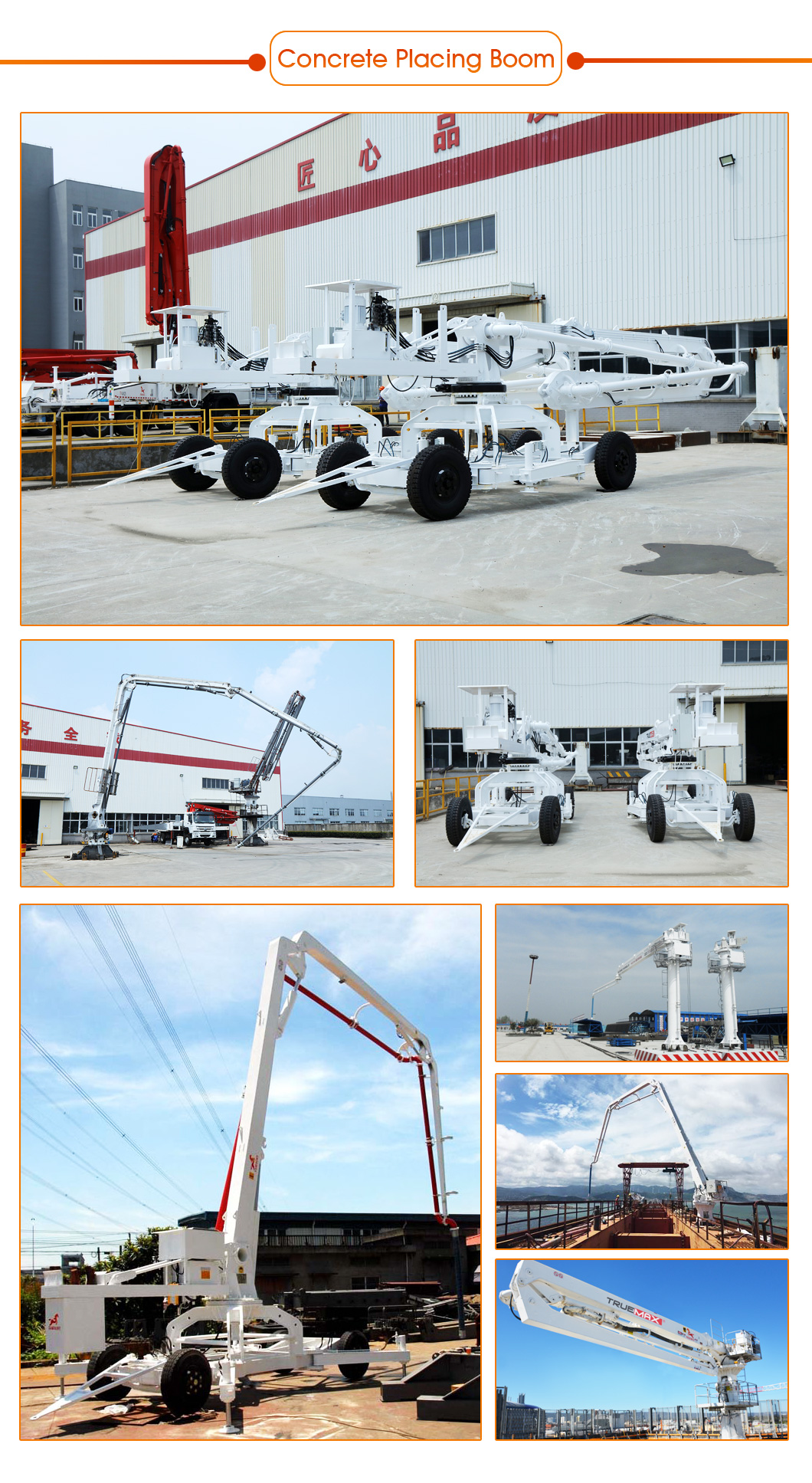

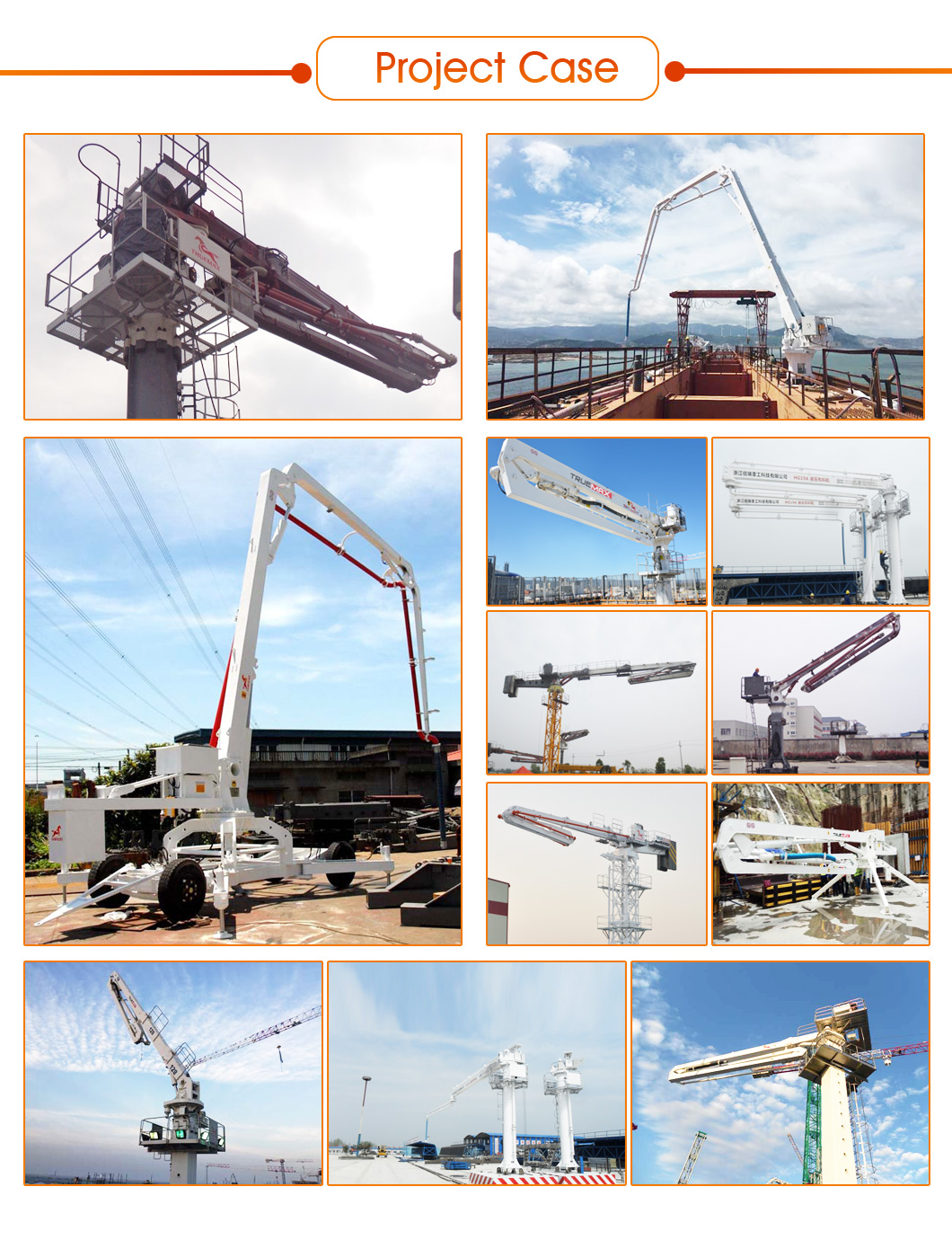

17m Concrete Placing Boom
This concrete placing boom features a three-section boom with a reach of 17 meters, allowing flexible operation. It is equipped with a hydraulic system for smooth boom movements and accurate concrete delivery.
Technical Specifications
Overview

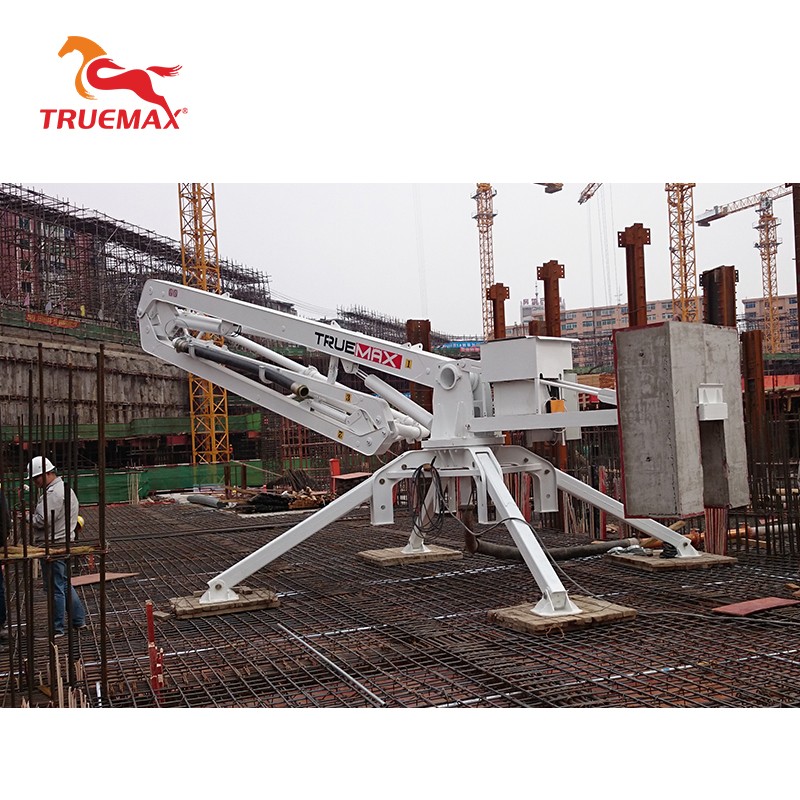

High-Efficiency 17m Spider Placing Boom
The PB17B-3R-II is a mobile hydraulic concrete placing machine designed for precise and efficient concrete distribution on diverse construction sites. Featuring a three-section 'R' folding boom with a 17-meter reach, it offers exceptional maneuverability and a full 360-degree slewing range. Its lightweight, balance-arm-free design simplifies floor loading and on-site relocation, making it an ideal solution for high-rise buildings, bridges, and complex infrastructure projects.
Performance Metrics
Key Performance Metrics
17 m
Max Placing Radius
360 °
Slewing Range
5.5 kW
Motor Power
25 MPa
System Pressure

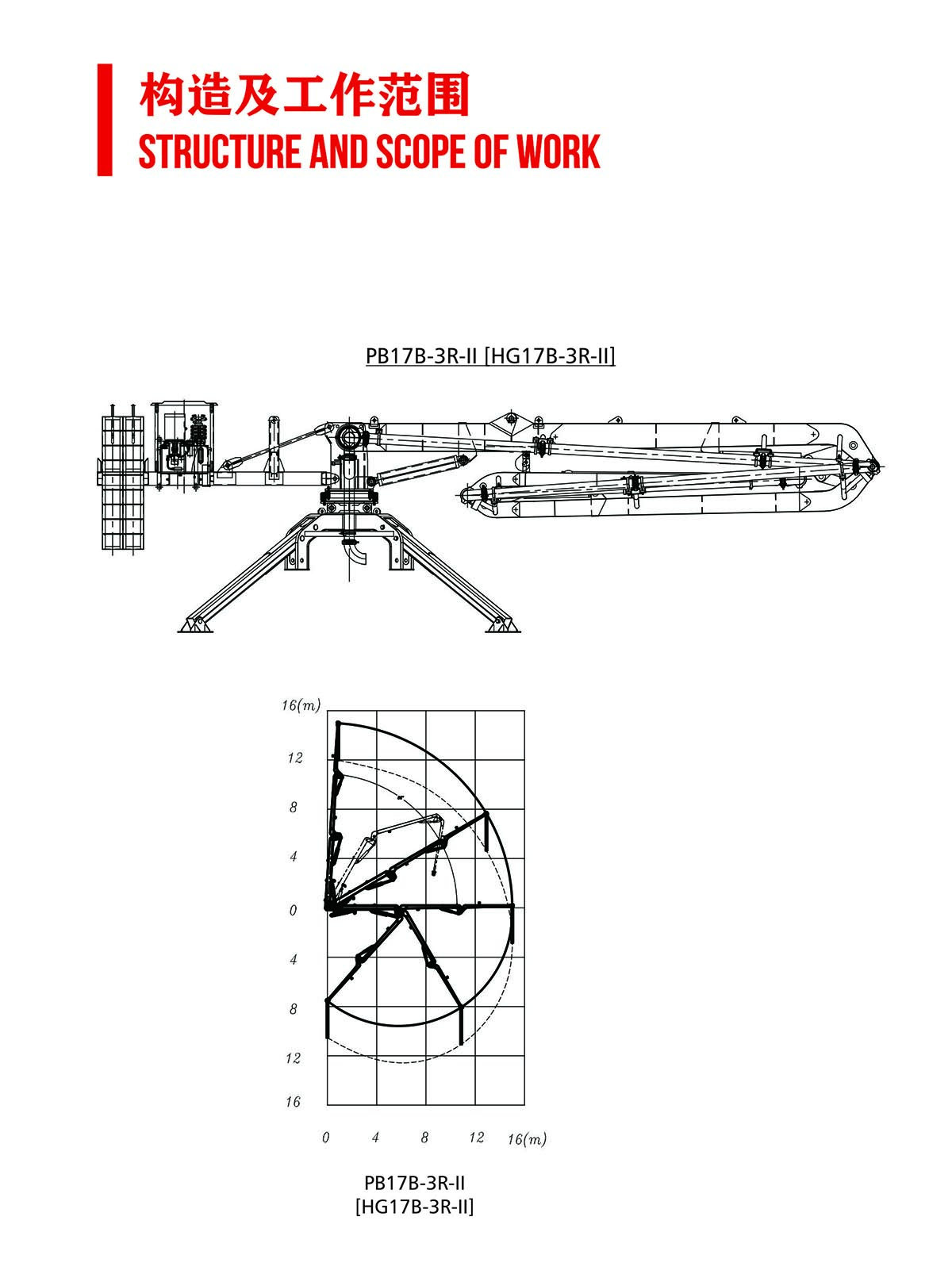

Boom Configuration
Boom Section Details
| Section | Length (m) | Articulation Angle |
|---|---|---|
| 1st Section | 7.1 | 0°~86° |
| 2nd Section | 5.5 | 0°~180° |
| 3rd Section | 4.5 | 0°~180° |
Technical Specifications
Delivery System
- Pipeline Diameter: Φ133 x 4.5 mm
- Delivery Hose: 5" x 3000 mm
- Slewing Mode: Turbo Worm Drive
- Outrigger Structure: Inclined for stability
- Operating Conditions
- Temperature range from -20°C to 55°C with specific anti-wear hydraulic oil (HM32/HM46) depending on climate.
Physical Properties
Weight & Dimensions
- Total Machine Weight: 6500 kg
- Maximum Lifting Unit: 1520 kg
- Free Standing Height: 2.7 m
Control & Options
Available Customizations
- Custom Column Lengths: 4m, 5m, 6m, 10m
- Climbing Modes: Floor climbing or Shaft climbing
- Voltage/Frequency: Customizable to local requirements
- Control Options
- Radio Remote ControlCable Remote ControlElectric Proportional ControlHBC/AUTEC Remote (Optional)
Certifications
Compliance & Standards
ISO 9001:2015CE CertifiedEN 60204-1 Compliant2014/35/EU (LVD)
