Technical Specifications
Product Overview

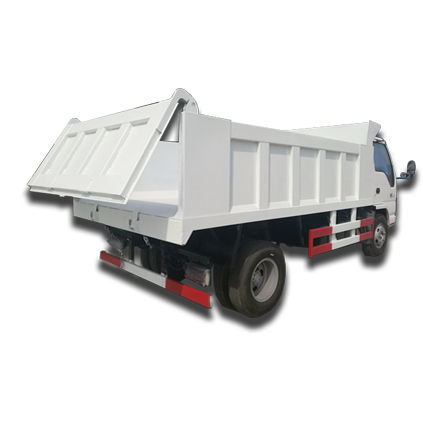

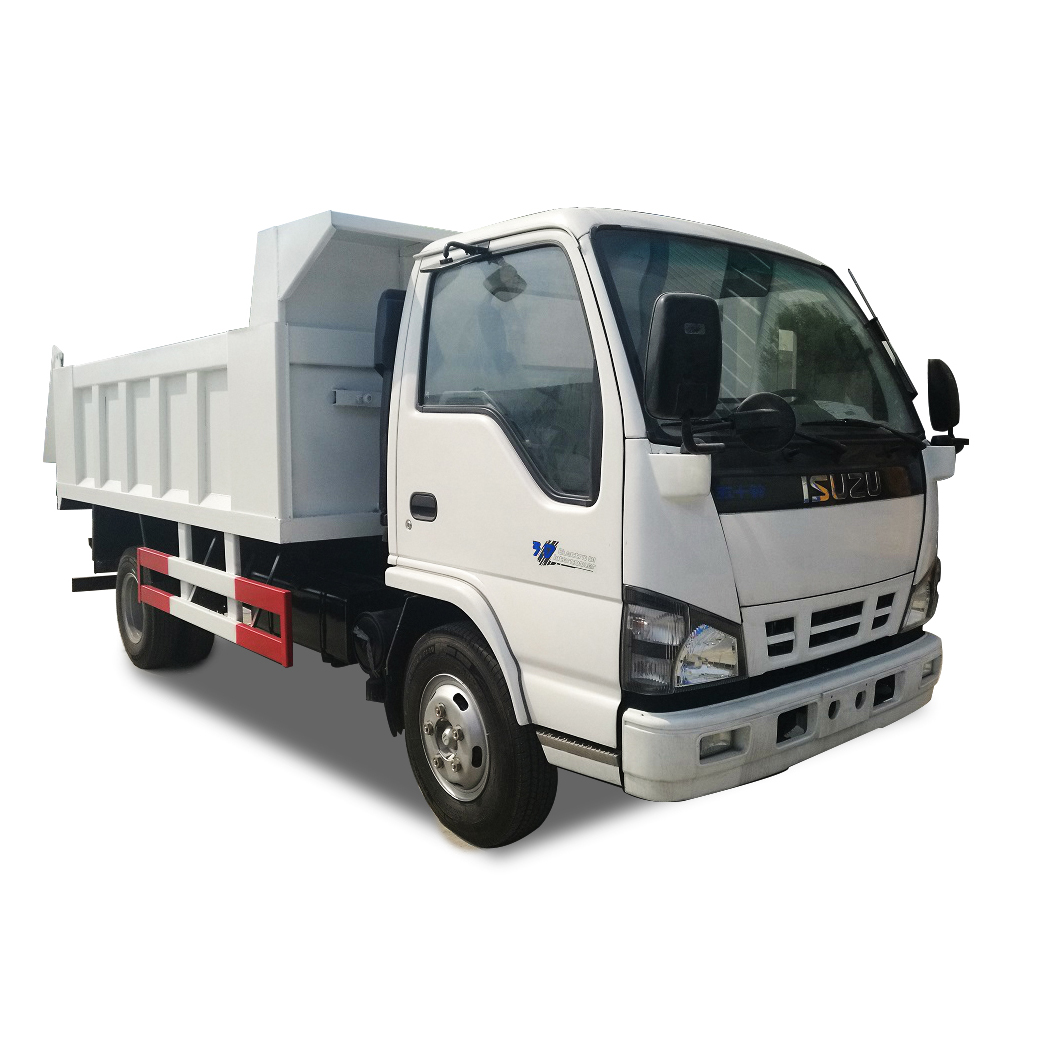

Versatile 3-Ton Tipper Truck
This 3-ton tipper dumper truck is engineered for efficient material handling and transportation in demanding environments like construction and landscaping. Featuring a robust hydraulic middle-lifting mechanism and a durable steel cargo bed, it ensures rapid unloading of bulk materials such as gravel or soil. Its compact 4x2 drive configuration provides excellent maneuverability in tight spaces while maintaining a high gross vehicle weight capacity.
Key Performance Metrics
Performance Highlights
3 Ton
Payload Capacity
88 Kw
Engine Power
120 Hp
Horsepower
6,580 Kg
GVW
Vehicle Dimensions
- Overall Dimensions
- 5035 x 1945 x 2180 mm
- Wheelbase
- 2765 mm
Engine & Transmission
Emission Standard
Euro 4
- Engine Model
- 4KH1-TCG40
- Displacement
- 2999 ml
- Transmission
- MSB-5SM (5 Forward + 1 Reverse)
Dump Body Specifications
Steel Thickness
- Bottom: 3mm
- Sides: 2mm
- Cargo Box Dimensions
- 3260 x 1780 x 380 mm
- Lifting System
- Middle Lifting Cylinder
Chassis & Tires
- Drive Type
- 4x2
- Tire Configuration
- 7.00R16 14PR (7 units including spare)
Standard Configuration
- Included Features
- Power SteeringAir ConditioningABSTubeless TiresFree Maintenance BatteryRetro-reflective Marking
Weight Parameters
Weight Distribution
| Parameter | Value |
|---|---|
| Curb Weight | 2950 Kg |
| Gross Vehicle Weight | 6580 Kg |
| Axle Configuration | Double Axles |
