3-Gang LED Rocker Switch Panel with USB and Voltmeter
This 3-gang switch panel features LED rocker switches, a USB socket, and a voltmeter. It is suitable for installation in vehicles, boats, RVs, and buses with 12V/24V power systems.
Technical Specifications
Overview
Versatile 3-Gang Control Solution

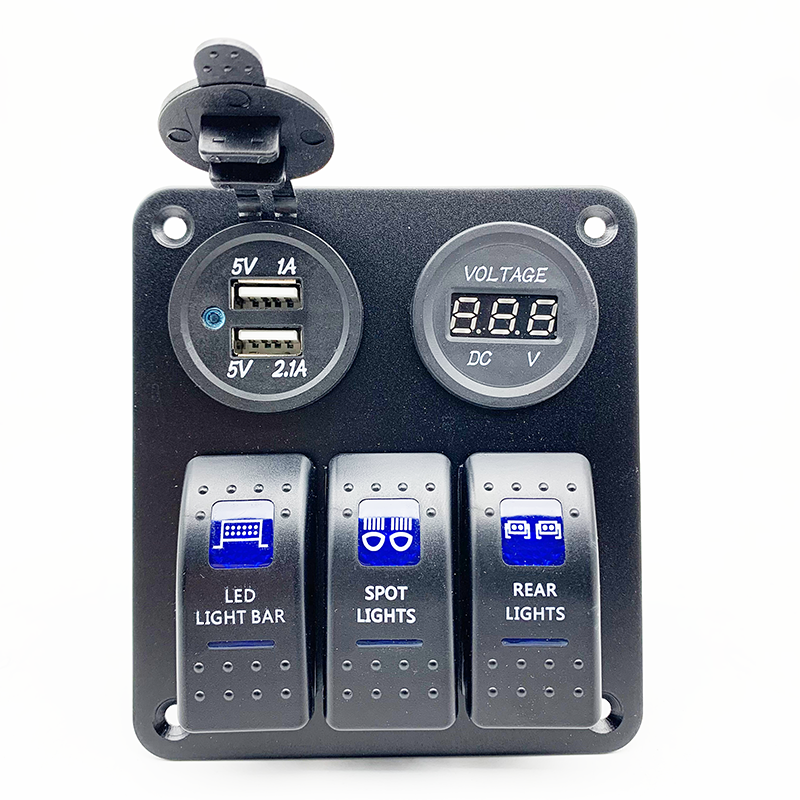

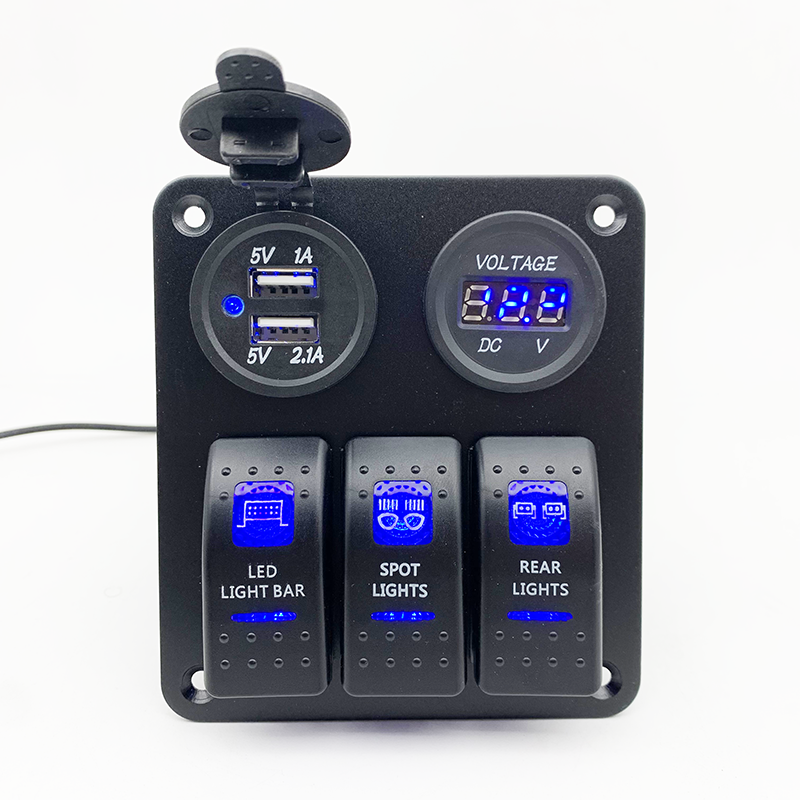

This integrated switch panel features three LED rocker switches, a dual USB charging port, and a digital voltmeter, providing a centralized control hub for vehicle and marine electronics. Built with high-quality flame-retardant materials, it is designed to operate reliably in extreme temperatures ranging from -24°C to 80°C. The IP66 waterproof rating ensures durability in demanding environments like yachts, RVs, and off-road vehicles.
Key Performance Metrics
Performance Highlights
240 W
Max Power
3.1 A
USB Output
66
IP Rating
Electrical Specifications
Output Specifications
| Component | Voltage | Current Rating |
|---|---|---|
| USB Ports | 5V | 3.1A (1A + 2.1A) |
| Rocker Switches (12V) | 12V | 20A |
| Rocker Switches (24V) | 24V | 10A |
- Input Voltage
- DC 12V/24V
- Voltmeter Test Range
- 6V - 30V
Physical Design
- Construction Materials
- ABSAluminum AlloyPCPBT
- Panel Dimensions
- 11 x 10.5 x 7.5 cm
- Installation Hole Size
- 8.1 x 6.7 cm
- Net Weight
- 202.6 g
Application & Environment
Recommended Applications
- Marine Ships & Yachts
- Recreational Vehicles (RVs)
- Buses
- Large-scale transportation tools
- Operating Temperature
- -24°C to 80°C
Compliance & Safety
Product Certifications
CEROHS
Package Contents
What's in the Box
- 1 x 3-Gang Rocker Switch Panel
- 4 x Mounting Screws
- 1 x Waterproof Pad
- 1 x Functional Sticker Set
