Technical Specifications
Overview

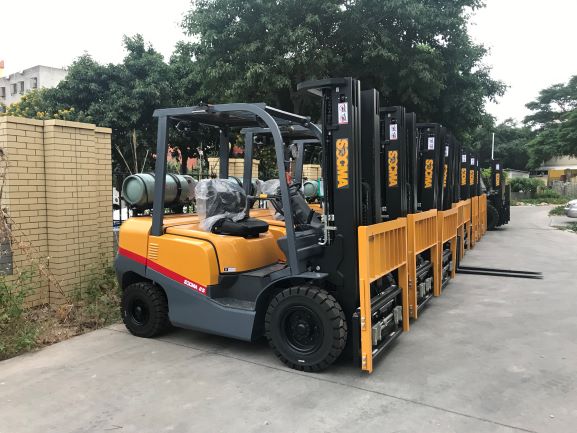

High-Efficiency 2.5 Ton LPG Forklift
This 2.5 Ton LPG forklift is a radical innovation designed to meet the rigorous demands of modern warehouse management and driver comfort. Powered by a clean-burning LPG engine, it offers high efficiency and energy savings while maintaining exceptional durability and reliability. The design features a uniquely improved uploading system and an ergonomic cab to ensure world-class performance in various industrial applications.
Core Performance
Key Performance Metrics
2,000 kg
Rated Capacity
3,000 mm
Max Lifting Height
17 km/h
Travel Speed (Loaded)
500 mm/s
Lifting Speed (Loaded)

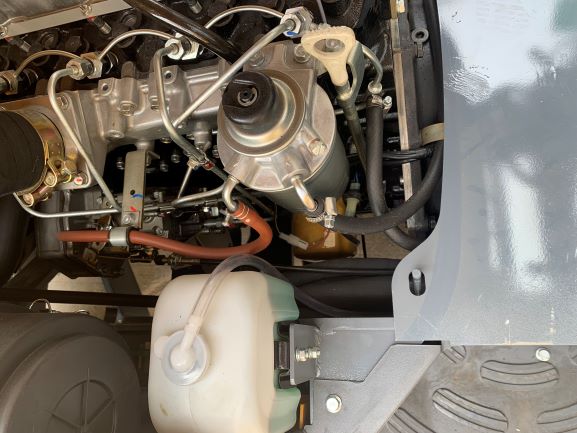

Engine & Powertrain
Engine Specifications
| Feature | Specification |
|---|---|
| Power Unit | LPG/Gasoline |
| Engine Model | K21 |
| Rated Power | 31.2 kw / 2250 rpm |
| Rated Torque | 143.7 n-m / 1600 rpm |
| Cylinders | 4 |
| Displacement | 2.06 L |
| Fuel Tank Capacity | 70 L |
Operator Comfort & Safety
Safety & Ergonomics
- New suspension system with adjustable seat to reduce fatigue
- Expanded step area (1.5x larger) with lower step height

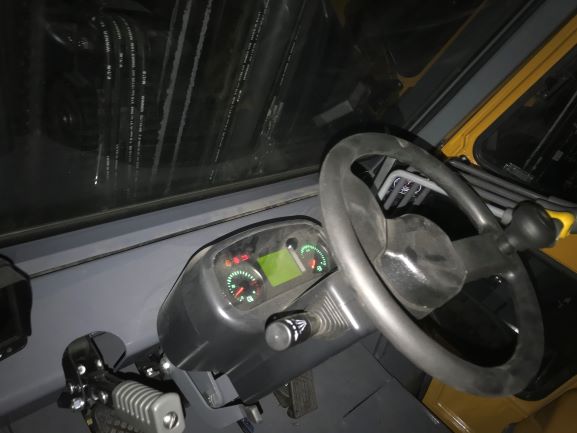

- Embedded LCD instrument with neutral start protection
- Double protection type brake lever to prevent misuse
- Advanced single chain design for enhanced front view
- Plastic ceiling protection for safe operation in rainy conditions
- Large double muffler for superior noise reduction
Technical Dimensions
Physical Dimensions
| Dimension | Value |
|---|---|
| Overall Length (without fork) | 2605 mm |
| Overall Width | 1150 mm |
| Overhead Guard Height | 2090 mm |
| Fork Size (LxWxT) | 1220 x 122 x 40 mm |
| Turning Radius | 2170 mm |
| Truck Weight | 3310 kg |
| Load Center | 500 mm |
Maintenance & Service
Maintenance Features
- Removable side cover for easy inspection and repairs
- Integrated control box for fuses and relays
- Aluminum heat sink radiator for significantly enhanced cooling
- 12-month or 2000-hour comprehensive warranty
- Global spare parts support network
Operational Capabilities
Maneuverability & Handling
| Parameter | Loaded | Unloaded |
|---|---|---|
| Lifting Speed | 500 mm/s | 550 mm/s |
| Lowering Speed | 480 mm/s | 450 mm/s |
| Travelling Speed | 17 km/h | 19 km/h |
| Max Gradeability | 21% | - |
| Mast Tilting (Fwd/Bwd) | 6 deg | 12 deg |
Compliance & Quality
- Standards & Certifications
- ISO 9001:2015EN ISO 12100:2010EN ISO 3691-5:2014CE Certified
