25 Spindle High Speed Lace Braiding Machine
This high-speed lace braiding machine features 25 spindles for simultaneous braiding of intricate patterns. It is designed for efficient production of RIC-RAC lace, piping tape, and various other bands.
Technical Specifications
Product Overview
High-Speed Precision Braiding

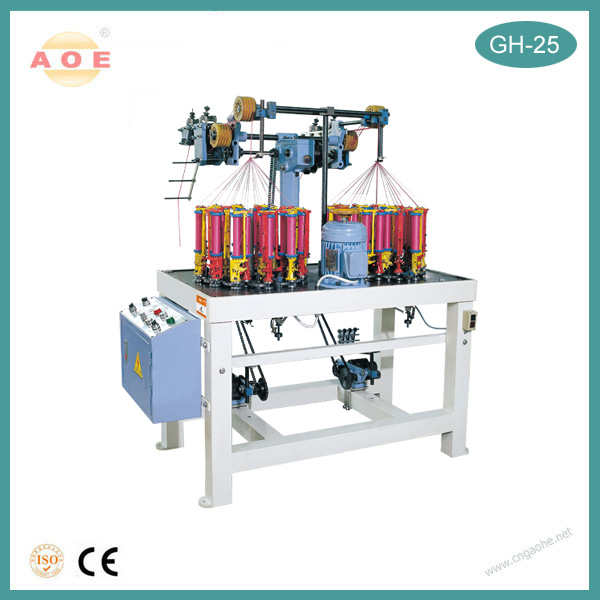

The GH-25 is a high-performance 25-spindle braiding machine engineered for the efficient production of RIC-RAC lace, piping tapes, and elastic bands. Designed with a focus on durability, it features a base and panel made from high-grade ductile iron that has undergone aging treatment to ensure long-term flatness and precision. This machine offers a user-friendly experience with a frequency converter for flexible speed control and an automatic yarn cutting device to streamline operations.
Key Performance Metrics
Performance Highlights
300 RPM
Max Speed
25
Carriers Per Head
2
Production Heads
0.75 kW
Motor Power
Technical Specifications
Technical Details
| Parameter | Value |
|---|---|
| Model | GH-25 |
| Machine Dimensions | 1200 x 750 x 1700 mm |
| Bobbin Dimension | 48 x 140 mm |
| Voltage | 220/380 VAC, 50/60Hz |
| Max M.P.H | 60 x 2 |
Applications
Supported Products
- RIC-RAC Lace
- Piping Tape
- Jacquard Tape
- Elastic Band
- Fibre Band
- Shoelaces
- Specialty Ropes
Mechanical Advantages
Construction Features
- Base casting machined after aging treatment for flatness
- Ductile iron 800 panel for high precision and wear resistance

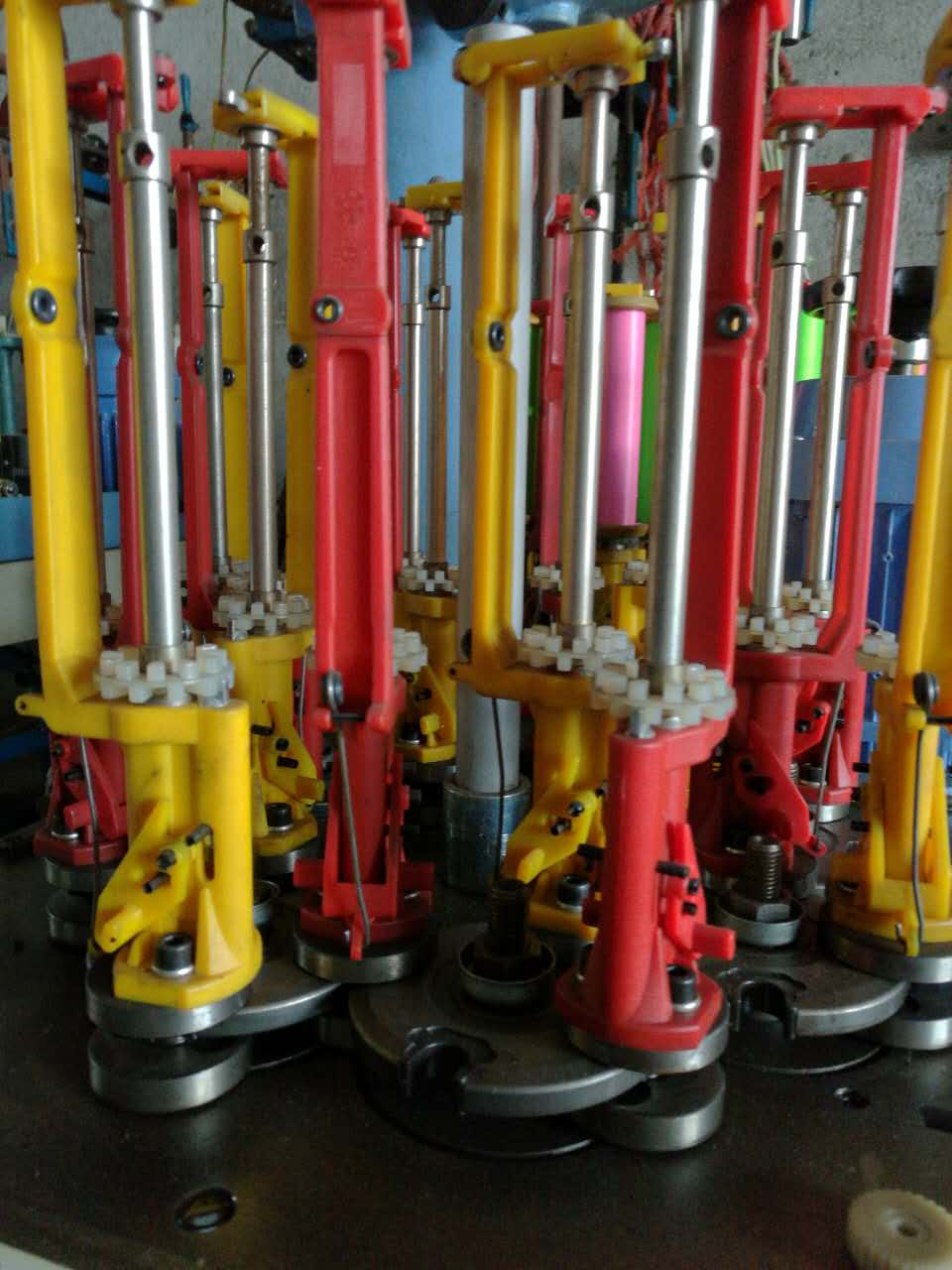

- Core shaft rotor with high-frequency surface hardening
- Precision-ground spindle components with 0.03mm fit tolerance
- Nylon 66 rotor pads with imported wear-resistant grease
Operational Features
Operational Features
- Frequency converter for variable speed control
- Automatic yarn cutting device
- Humanized design for safe and easy operation
- Simplified spindle structure for fast bobbin changes
- Direct and convenient maintenance access
Compliance & Quality
Certifications
CEISO
- Quality Assurance
- All machines undergo careful inspection before delivery.
