Overview
High-Performance LED Signaling
The AD22-22DRS is a high-brightness LED indicator designed to replace traditional incandescent and neon lamps in industrial control panels. Featuring a 22mm mounting diameter and durable polycarbonate construction, it offers superior anti-surge performance and long operational life. These indicators are ideal for signaling, accident forewarning, and status monitoring across electrical power, telecommunications, and machinery applications.
Technical Specifications
- Mounting Diameter
- 22 mm
- Operating Voltage
- 12V (Supports AC/DC)
- Insulated Resistance
- ≥2MΩ
- Voltage of Working Frequency
- 2.5kV (AC valid value), 1min
- Voltage Wave Allowed
- ±20%

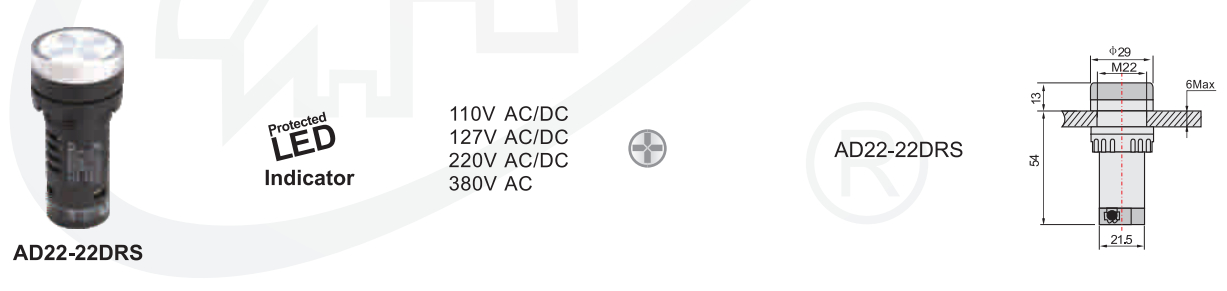

Physical Dimensions
Unit Dimensions
| Parameter | Value |
|---|---|
| Head Diameter | 29mm |
| Height Above Panel | 13mm |
| Total Length | 54mm |
| Base Diameter | 21.5mm |
| Max Panel Thickness | 6mm |
Key Features
Performance Highlights
22 mm
Mounting Hole
12 V
Rated Voltage
Core Advantages
- High brightness LED chip light source
- Low power consumption and lightweight design
- Polycarbonate lampshade with high intensity
- Enhanced anti-surge performance
- Bolt-type connector for safe installation
Compliance & Standards
- Standards Compliance
- IEC60947-5-1EN60947-5-1
Applications
Target Industries
Machine ToolsTelecommunicationsWatercraftTextile MachineryPrinting EquipmentMining Machinery
