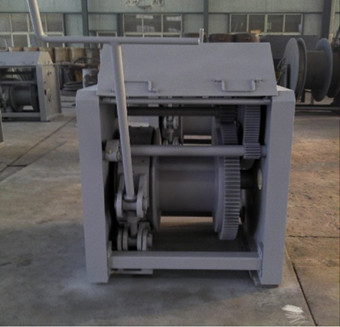

20KN Electric Mooring Winch
This 20KN electric mooring winch is engineered for durability and performance in heavy-duty lifting. It features a sturdy frame, a high-torque electric motor, and a precision-engineered gear system.
Technical Specifications
Product Overview
High-Performance Mooring Solutions
This electric mooring winch is engineered for heavy-duty marine applications, providing reliable pulling power and efficient operation in demanding environments. Built with a robust frame and a precision gear system, it ensures durability and long-lasting performance for vessel mooring tasks. The unit features a high-torque electric motor and a large drum capacity to accommodate significant wire rope lengths, making it an essential tool for secure maritime operations.
Key Performance Metrics
Rated Pull
20 kN
Rated Pull
Rated Speed
12 m/min
Rated Speed
Technical Specifications
- Drum Capacity
- Φ 15 * 150 m
- Motor Power
- 8.5 kW
Certifications
- Classification Standards
- CCSLRGLRS
Product Range
Available Models
| Model (kN) | Speed (m/min) | Motor (kW) |
|---|---|---|
| 5 | 5/12 | 3/1.2 |
| 20 | 12 | 8.5/3.5 |
| 50 | 15 | 22/22/16 |
| 100 | 12 | 30/30/22 |
| 200 | 9.6 | 60/60/45 |
| 650 | 6 | 110 |
