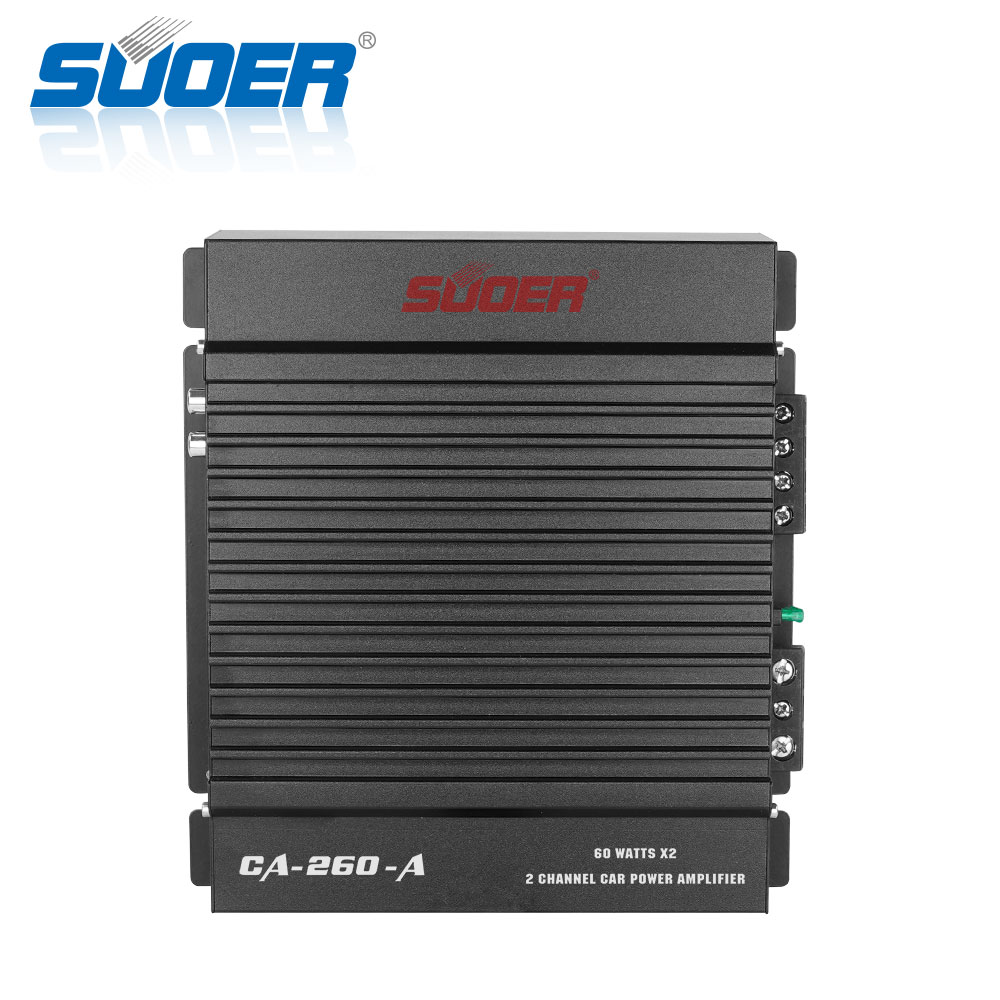

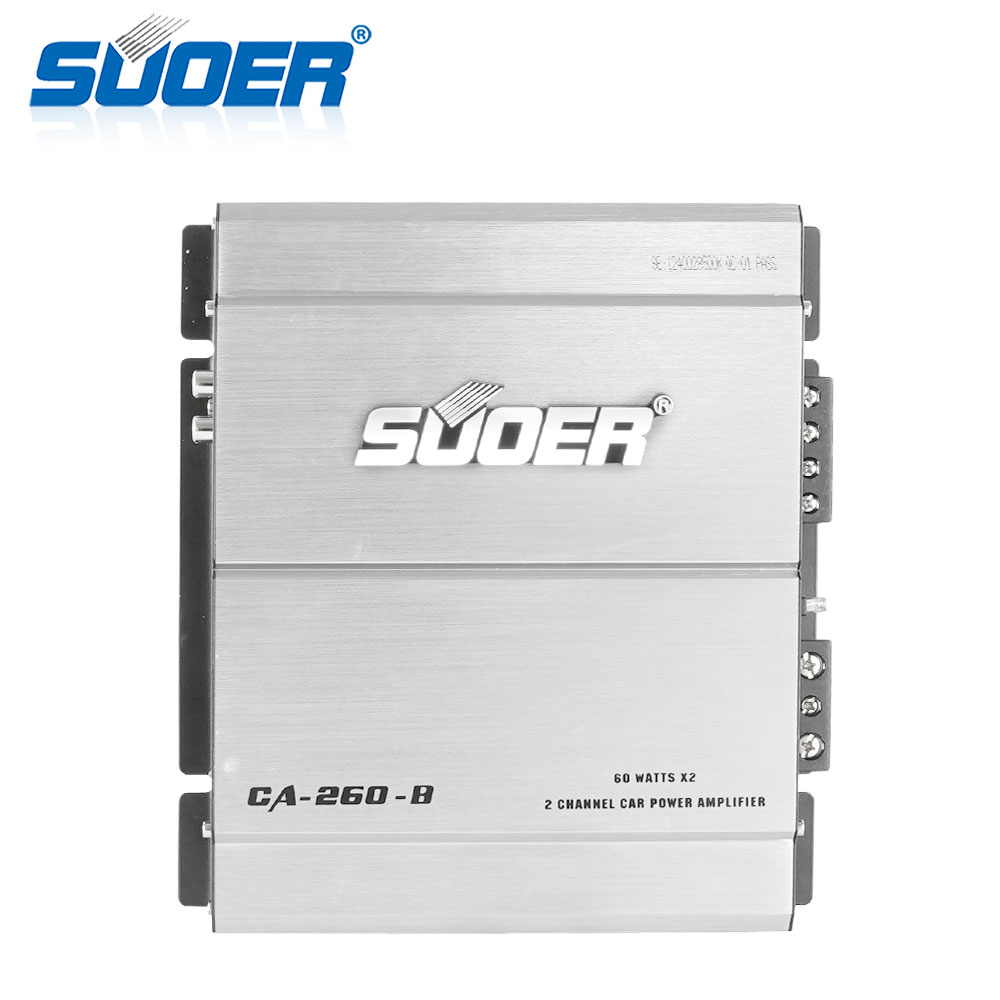

2-Channel Class AB Car Audio Amplifier
This 2-channel Class AB car amplifier is engineered to enhance audio systems in vehicles. It delivers 60 watts x 2 of power for improved sound quality.
Technical Specifications
Overview
High-Fidelity 2-Channel Car Amplification
This Class AB car audio amplifier is engineered to provide a superior balance between power efficiency and high-fidelity sound reproduction. Designed for versatile vehicle installations, it supports both stereo and bridged configurations to drive speakers or subwoofers with clarity. With integrated protection circuits and adjustable tuning controls, it offers a reliable solution for professional car audio upgrades.
Performance Metrics
Power Ratings
60 W x 2
RMS Power (4Ω)
78 W x 2
RMS Power (2Ω)
92 dB
Signal-to-Noise Ratio
Audio Tuning
Frequency Response & Filters
| Parameter | Range |
|---|---|
| Frequency Response | 15Hz - 60kHz |
| Low Pass Filter | 50Hz - 250Hz |
| High Pass Filter | 15Hz - 3kHz |
| Bass Boost | 0 - 12dB |
Technical Specifications
- Total Harmonic Distortion
- 0.01 %
- Input Sensitivity
- 0.2V - 5V
- Minimum Impedance
- 2 ohms
Physical Properties
- Dimensions
- 230mm x 200mm x 50mm
- Unit Weight
- 1.35 kg
Installation & Safety
Amplifier Topology
Class AB
- Operating Voltage
- 14.4V (9V-15V Range)
- Safety Features
- 30A FuseNegative GroundBridged Output SupportGND/REM/+12V Terminals
