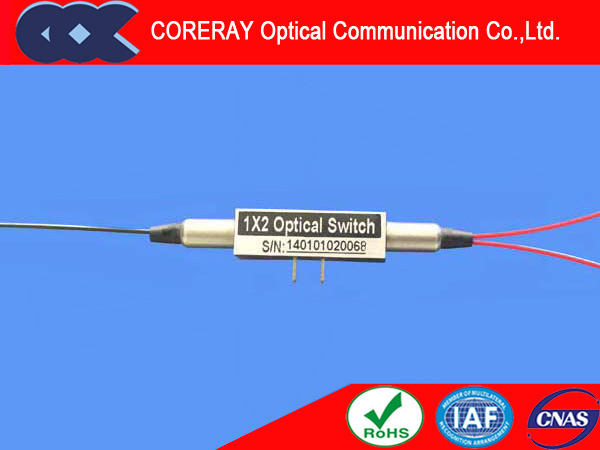

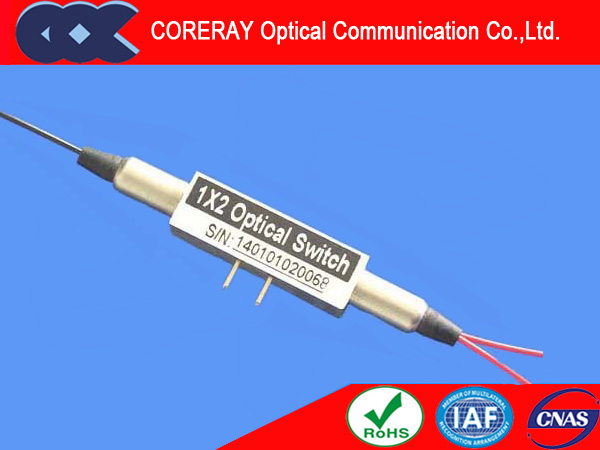

1x2 Solid-State Fiber Optic Switch
The 1x2 solid state fiber optical switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using patented non-mechanical configurations and activated via an electrical control signal.
Technical Specifications
Overview
High-Performance Optical Switching
The 1x2 solid-state fiber optical switch is a professional-grade component designed to connect optical channels by redirecting incoming signals into a selected output fiber. Utilizing a patented non-mechanical configuration activated by an electrical control signal, this device ensures high stability and reliability in demanding environments. It is an ideal solution for optical network protection, monitoring, and signal routing applications where precision and durability are paramount.
Key Features
Key Features
- Low Insertion Loss
- Wide Wavelength Range
- Low Crosstalk
- High Stability and Reliability
- Epoxy-free on Optical Path
- Latching and Non-latching options
Performance Metrics
Optical Performance
0.7 dB
Typical Insertion Loss
50 dB
Return Loss (min)
45 dB
Channel Cross Talk (min)
0.1 dB
PDL (max)
Technical Specifications
Detailed Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 1295~1325, 1520~1580 nm |
| Testing Wavelength | 1310/1550 nm |
| Insertion Loss (Max) | 1.0 dB |
Applications
- Typical Applications
- Optical Signal SwitchingNetwork ProtectionNetwork MonitoringVideo DistributionInstrumentationMilitary Communications
