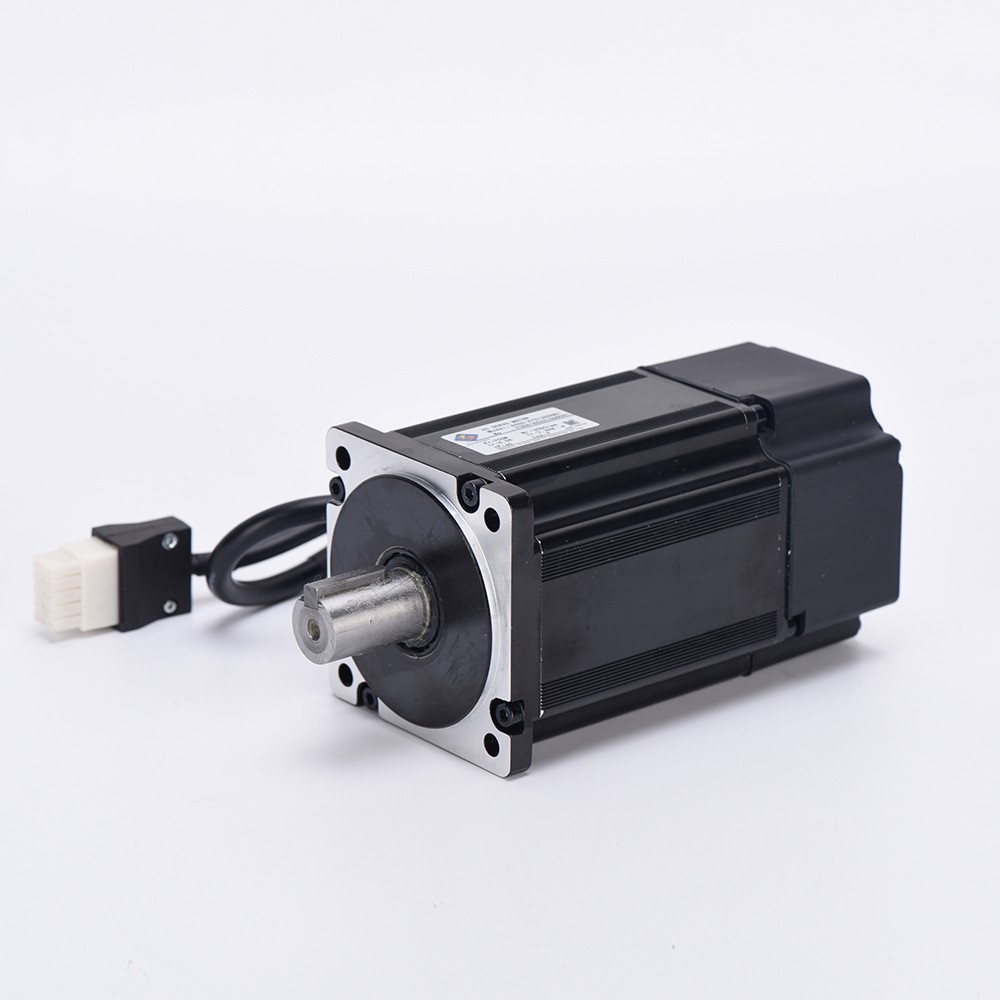

1kW AC Servo Motor 130mm Frame
This AC servo motor has a power rating of 1kW and a 130mm frame size. It operates at 220V and is designed for use in jointed robots, picking robots, and CNC equipment.
Technical Specifications
Product Overview
High-Performance 1kW AC Servo Motor
This 130mm frame AC servo motor is engineered for precision motion control in demanding industrial environments. Featuring a compact, short-body design, it integrates advanced technology to deliver reliable performance for CNC machinery, jointed robotics, and high-end electronic assembly equipment. The motor is compatible with various encoder configurations, ensuring versatile integration into existing digital control systems.
Performance Metrics
Rated Power
1 kW
Rated Power
220 V
Rated Voltage

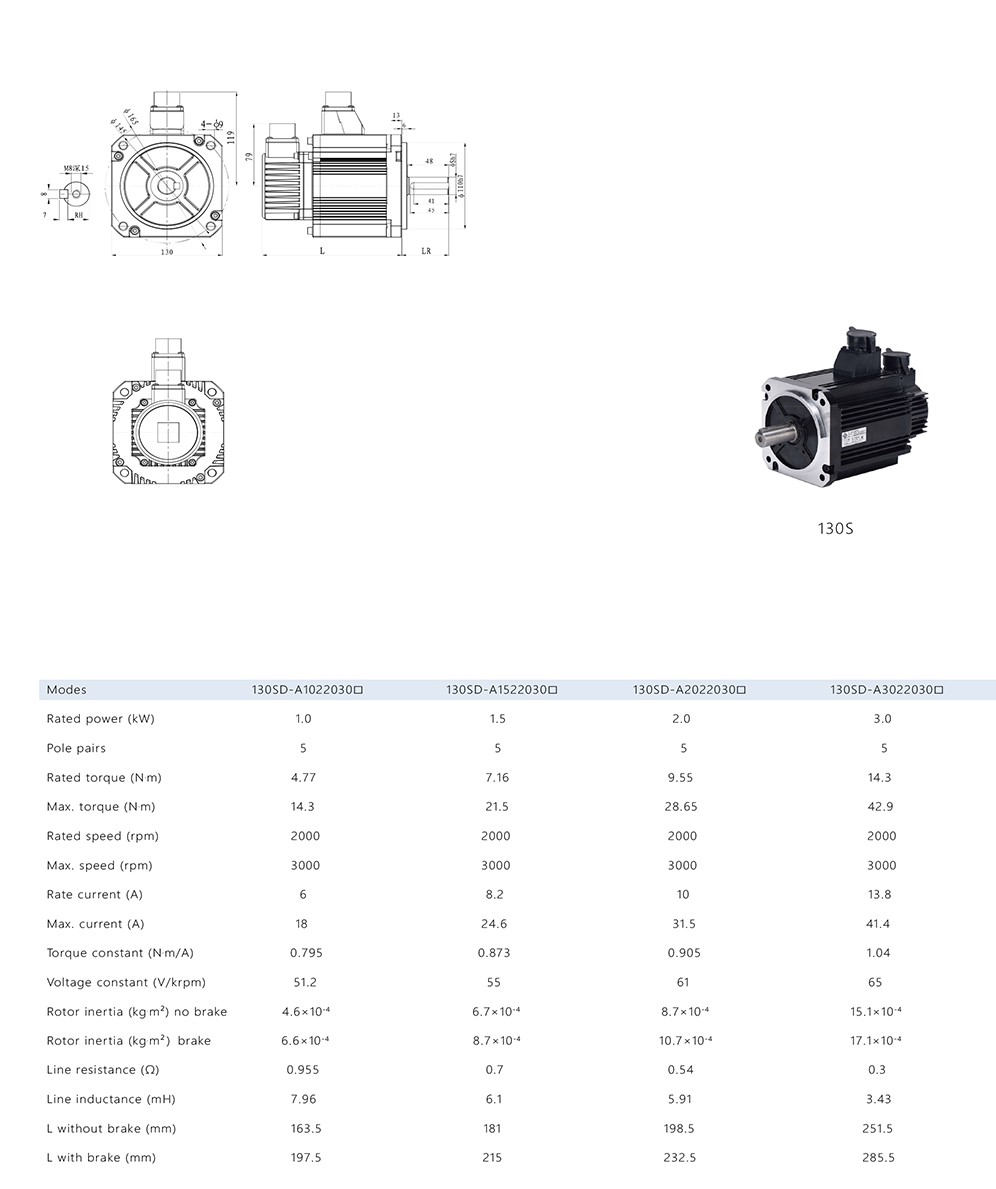

Operating Specifications
| Parameter | Value |
|---|---|
| Rated Speed | 2000 rpm |
| Rated Torque | 4.77 Nm |
| Max Torque | 14.3 Nm |
| Rated Current | 6 A |
Technical Features
- Supported Encoders
- Absolute EncoderIncremental EncoderRotary Encoder
Application Areas
Suitable Industries
- Jointed Robots
- Picking Robots
- High-End Electronic Equipment
- Milling and Engraving CNC
