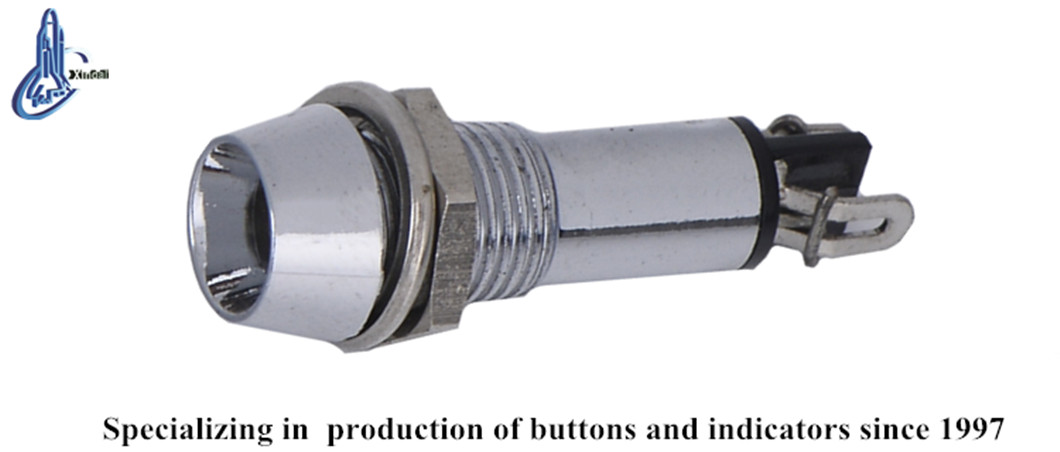

16mm LED Indicator Light
This 16mm LED indicator light is designed for panel mounting. It provides clear visual indication for various applications.
Technical Specifications
Product Overview
High-Performance 16mm LED Indicators
The AD22 series represents a modern evolution in signaling technology, utilizing high-brightness LED chips to replace traditional incandescent and neon lamps. These indicators offer significantly lower power consumption, a compact lightweight design, and exceptional reliability for long-term industrial use. Engineered with a high-intensity polycarbonate lampshade, they provide superior anti-surge performance and enhanced safety through a secure bolt-type connector design.
Key Metrics
Featured Specifications
16 mm
Mounting Diameter
2.5 kV
Frequency Voltage
2 MΩ
Insulated Resistance
Technical Specifications
Available Colors
RedGreenYellowBlueWhiteDouble-color
- Available Operating Voltages
- 6V AC/DC12V AC/DC24V AC/DC36V AC/DC48V AC/DC110V AC/DC127V AC/DC220V AC/DCAC 220VAC 380V
- Voltage Wave Allowed (AC)
- ±20%

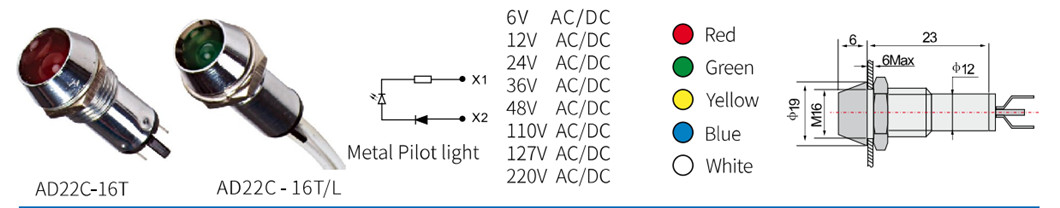

Physical Dimensions
Mechanical Dimensions
| Dimension Type | Measurement |
|---|---|
| Mounting Diameter | φ16mm |
| Front Diameter | φ19mm |
| Overall Length | 23mm |
| Max Panel Thickness | 6mm |
Applications
Target Industries
- Electrical Power Systems
- Telecommunications Equipment
- Machine Tool Signaling
- Watercraft & Marine Electronics
- Textile & Printing Machinery
- Mining Equipment
Product Features
Design & Construction
- High-intensity polycarbonate lampshade
- Anti-surge performance
- Bolt-type connector for safety
- Chrome-plated finish options
- Miniature short-base design available
