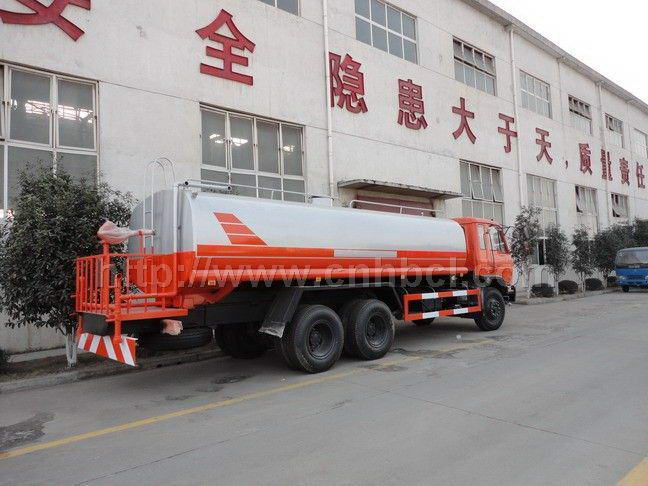

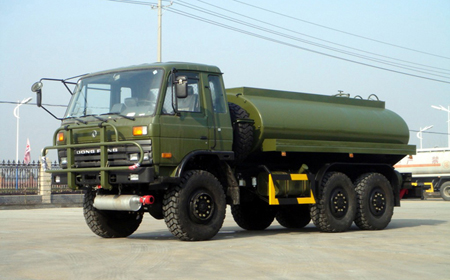

16.59 CBM Rear Double Bridge Water Truck
This rear double bridge water truck has a 16.59cbm loading capacity. Its outer dimensions are 9,950*2,490*3,350(mm) and it adopts a 210 horsepower engine.
Technical Specifications
Overview
Versatile Water Distribution Solution
This heavy-duty rear double bridge water truck is engineered for efficient water transport and versatile distribution. Equipped with a comprehensive sprinkler system including front, rear, and side nozzles, it allows for multi-directional spraying. The rear working platform features a high-performance water cannon capable of projecting a straight stream over 28 meters or a mist flow over 15 meters, making it suitable for dust suppression, irrigation, and emergency fire-fighting applications.
Technical Specifications
- Dimensions (L×W×H)
- 8900/8600 x 2470 x 3050 mm
- Total Mass
- 15795 kg
- Rated Mass
- 9525 kg
- Curb Mass
- 6075 kg
- Maximum Speed
- 90 km/h
- Approach/Departure Angle
- 16/11 degrees
Engine & Performance
Engine Power Options
- 120
- 138
Emission Standard
Euro III
- Engine Displacement
- 6618 ml
- Fuel Type
- Diesel
Chassis & Axles
Wheelbase Options
- 4,800
- 5,300
- Axle Count
- 2
- Axle Load
- 5800/9995 kg
Special Performance
Water Cannon (Straight Stream)
28 m
Effective Range
Water Cannon (Mist Flow)
15 m
Effective Range
- Spraying Capabilities
- Front SprinklersRear SprinklersSide SprinklersFire Pumper FunctionWater Draining
