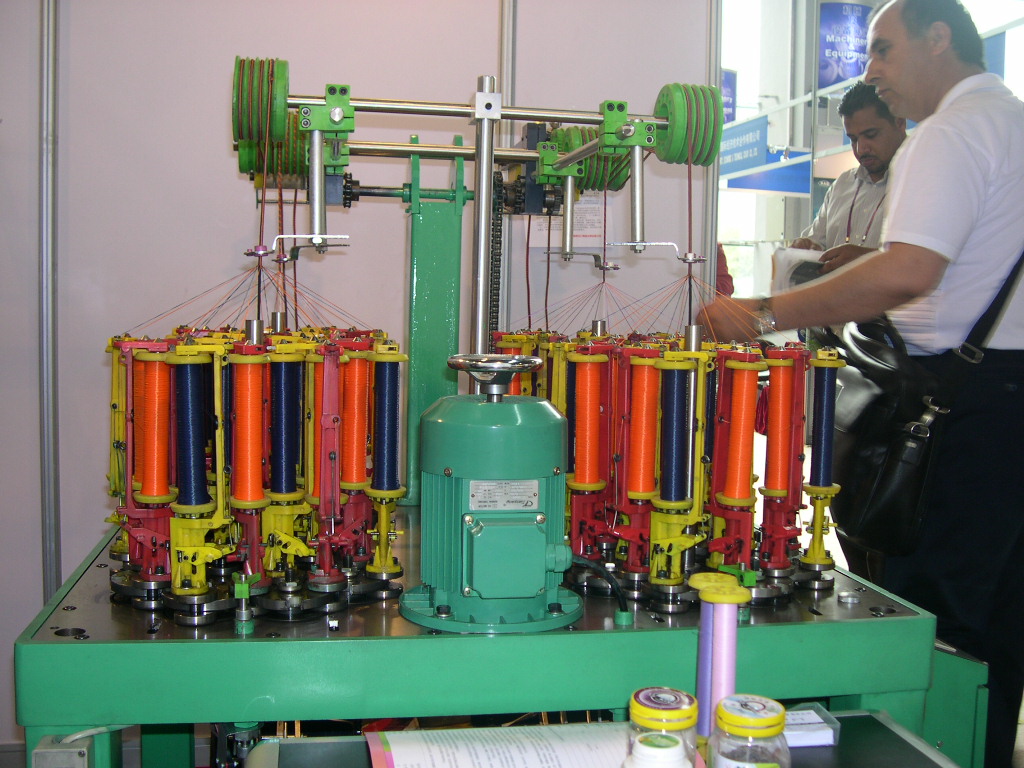

16 Spindle High Speed Lace Braiding Equipment
This high-speed braiding machine is equipped with 16 spindles for efficient lace production. It is designed to produce various round ropes, special bands, and shoelaces with consistent quality.
Technical Specifications
Overview
High-Efficiency Lace Braiding Solution
This 16-spindle high-speed braiding machine is engineered for the professional production of round ropes, special bands, and shoelaces. Featuring a four-head design, it allows for the simultaneous production of four laces, significantly increasing factory throughput. The equipment is built with high-quality shafts and a robust mechanical structure to ensure stable long-term operation and a prolonged service lifespan.
Technical Specifications
Production Capacity
4 Heads
Production Heads
16 Spindles
Carriers per Head
300 RPM
Max Speed
Power & Voltage
| Parameter | Value |
|---|---|
| Motor Power | 0.75 kw |
| Voltage | 220/380/VAC |
| Frequency | 50/60HZ |

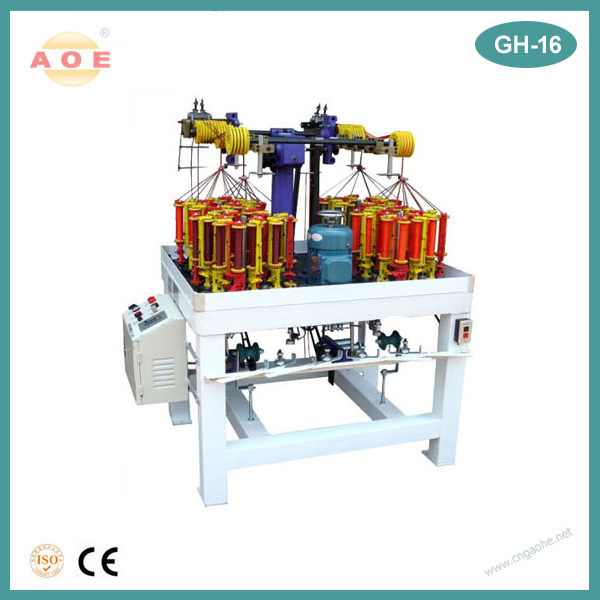

- Model
- GH-16
Construction & Materials
Component Materials
- Panel: Ductile iron 800 (aging-treated)
- Core shaft rotor: Ductile iron 600 (high-frequency surface treatment)
- Rotor nylon pad: Casted Nylon 66 with imported wearing-grease
- Base casting: Machined after aging treatment for flatness
Operational Features
- Key Features
- Auto Yarn CuttingFrequency Converter Speed ControlHumanized DesignPrecision Grinded ComponentsFast Bobbin Change
Physical Dimensions
- Machine Size
- 1080 x 950 x 1700 mm
- Bobbin Dimension
- 48 x 140 mm
Compliance & Quality
Certifications
CEISO
Applications
Suitable For
- Round Various Ropes
- Special Bands
- Shoelaces
- Decorative Trims
- Technical Braids
