1550nm Multi-Output EDFA Fiber Amplifier for PON and CATV
This 1550nm multi-output fiber amplifier is designed for PON and CATV applications, using EDFA technology to boost optical signals. It features multiple output ports for signal distribution, ensuring high performance and reliability in optical communication networks.
Technical Specifications
Product Overview
High-Performance 1550nm EDFA for PON & CATV
This series of erbium-doped fiber amplifiers (EDFA) is specifically designed for 1550nm external modulated optical transmitters, making it an ideal solution for cable TV signal transmission. By combining high-quality erbium-doped fiber with high-power pump sources and advanced control circuitry, it achieves high gain and high output power while maintaining an exceptionally low noise figure. Its robust design supports transmission distances exceeding 100km when used in front-enlarge and relay-enlarge configurations.
Key Performance Metrics
Performance Highlights
Optical Specifications
Optical Performance Data
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Working Wavelength | λc | 1530 | 1565 | nm |
| Saturated Output Power | Po | 10 | 33 | dBm |
| Input Power | Δλ | -10 | +10 | dBm |
| Noise Figure | NF | - | 4.6 (@0dBm) | dB |
Technical Features
Core Features

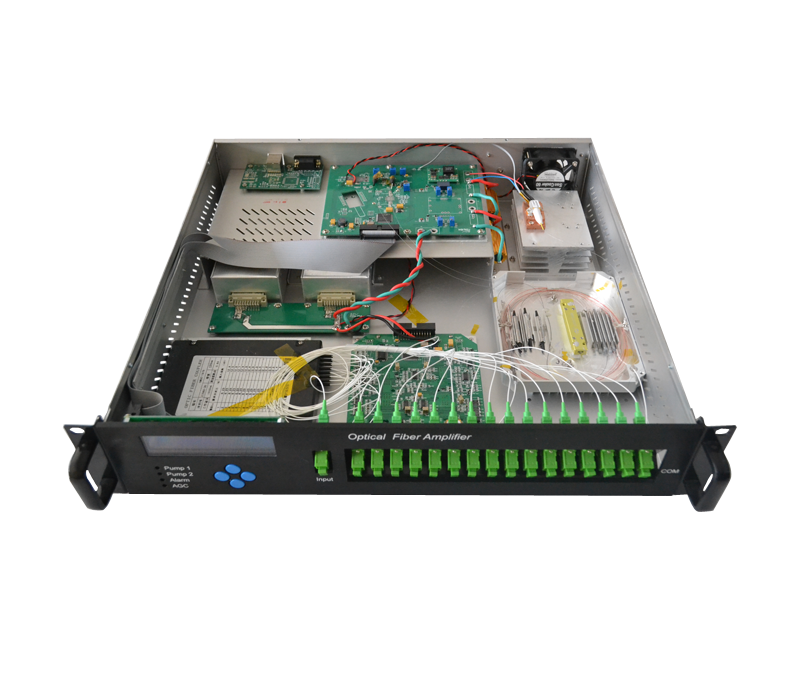

- Unique optical design with double-pump laser structure
- Real-time parameter display on front panel
- Integrated APC (Auto Power Control) circuit
- Integrated ATC (Auto Temperature Control) circuit
- High-quality switching power supply
- Auxiliary cooling fan and heat sink for thermal management
- Network management function compatibility
Connectivity & Interface
Front Panel Indicators

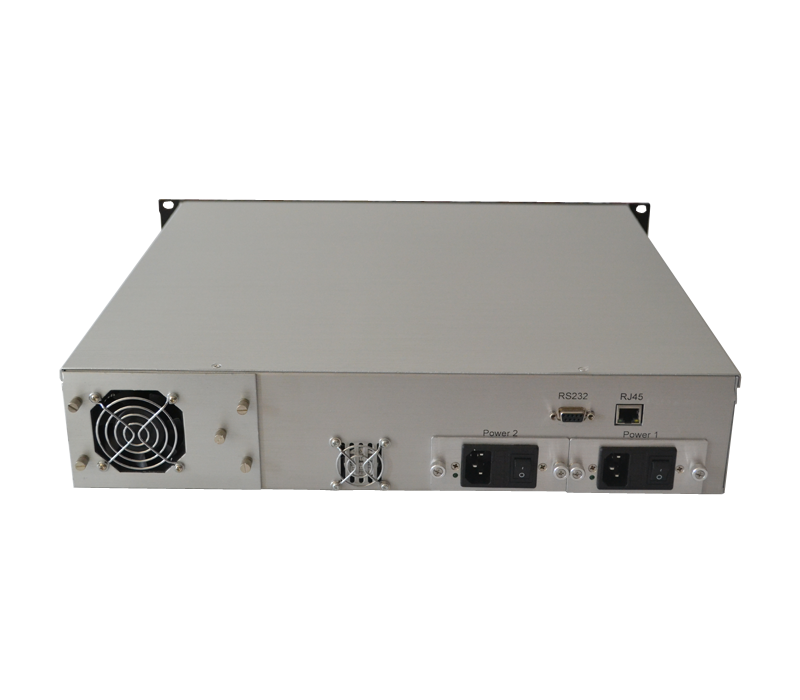

- Available Interfaces
- RS232RJ45Dual Power InputsMulti-Output PortsCOM Port
