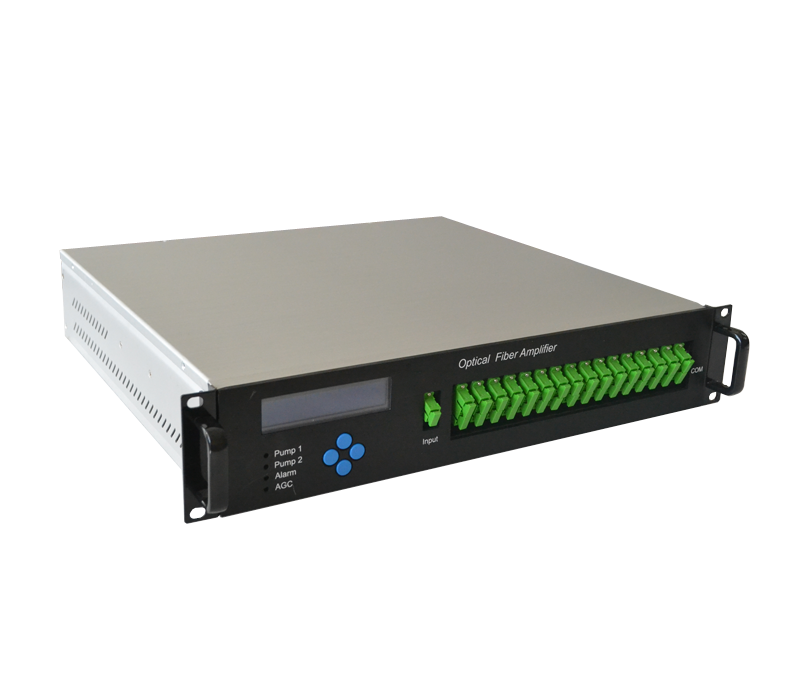

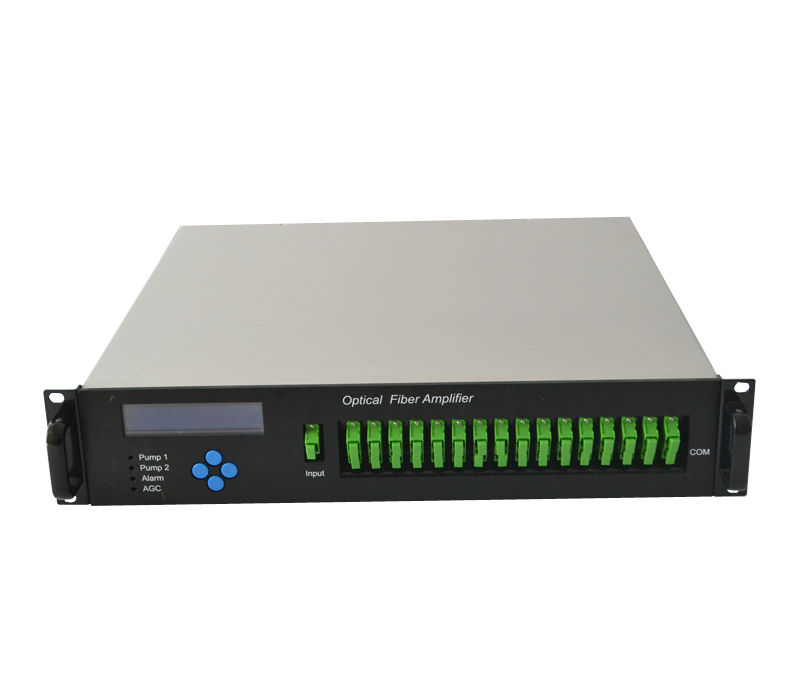

1550nm CATV Optical Amplifier
This 1550nm CATV optical amplifier provides low noise and high output for CATV signal transmission. It uses erbium-doped fiber and a high-power pump source to ensure stability and can transmit signals over 100km.
Technical Specifications
Product Overview
High-Performance 1550nm EDFA
This 1550nm CATV Optical Amplifier is a high-power Erbium-Doped Fiber Amplifier (EDFA) engineered for reliable, low-noise signal transmission in cable television networks. Featuring a robust double-pump laser structure and advanced APC/ATC control circuits, it ensures exceptional stability and signal integrity over distances exceeding 100km. Designed for professional infrastructure, it includes comprehensive network management capabilities and redundant power systems.
Optical Performance
Saturated Output Power
10 dBm
Min
33 dBm
Max
- Working Wavelength
- 1530 - 1565
- Input Power Range
- -10 to +10 dBm
- Noise Figure
- 4.6 dB
System Features
Control & Connectivity
- RS232 Port
- RJ45 Network Port
- Front-panel display
Hardware Infrastructure
Dual power supplyRedundant designActive cooling fansRack-mountable
- Core Technologies
- Double-pump laser structureAPC (Auto Power Control)ATC (Auto Temperature Control)Network management supportReal-time monitoring
