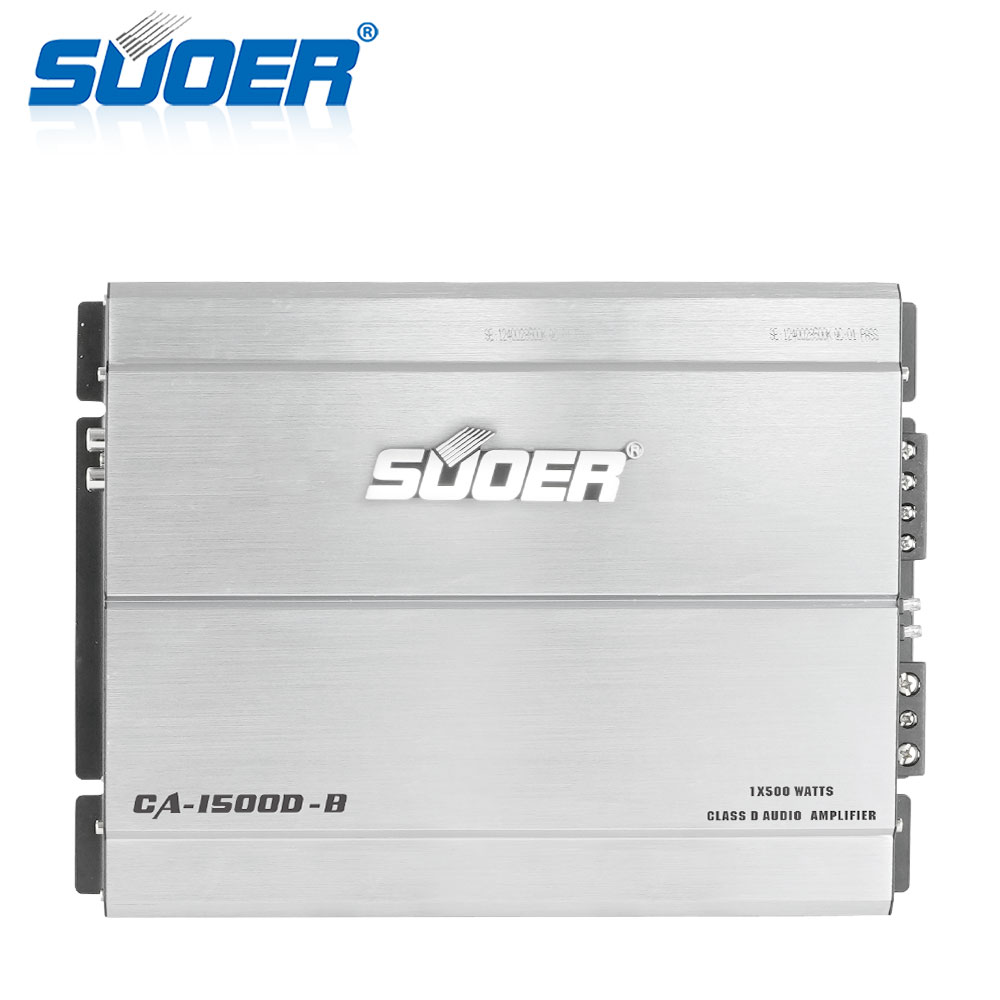

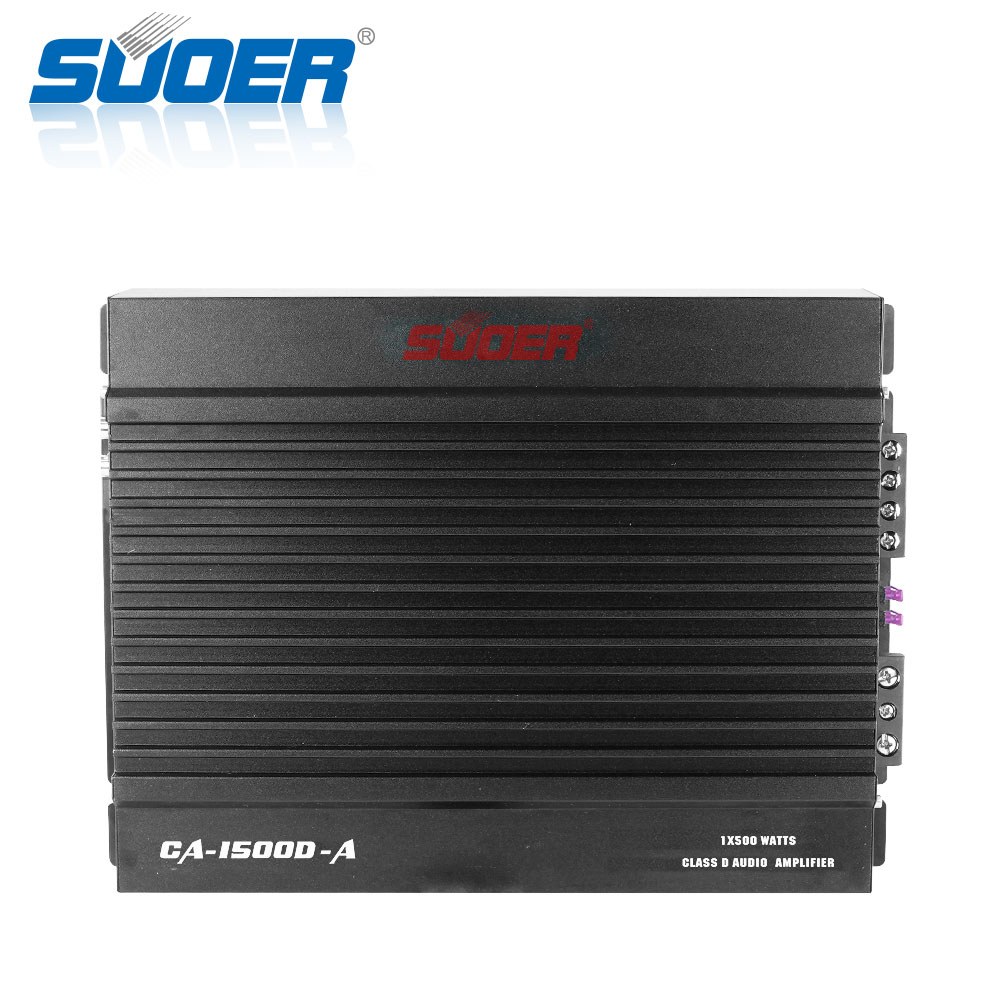

1500W Monoblock Class D Car Amplifier
This is a monoblock Class D car audio amplifier with a power output of 1500W. It is designed for efficient power delivery and compact size, suitable for driving subwoofers in car audio systems.
Technical Specifications
Overview
High-Performance Monoblock Amplification
This monoblock Class D car audio amplifier is engineered to deliver efficient and powerful performance for subwoofers and low-frequency speakers. Designed with a focus on thermal management and reliability, it features a compact chassis with a robust finned heat sink. The unit offers precise control over audio output, including adjustable gain, low-pass filtering, and bass boost, making it an ideal solution for upgrading car audio systems.
Performance Metrics
Key Performance Metrics
500 W
Output Power
101 dB
Signal-to-Noise Ratio
0.01 %
Total Harmonic Distortion
Technical Specifications
- Frequency Range
- 10Hz - 320Hz
- Input Sensitivity
- 0.2V - 6V
- Low Pass Frequency
- 30Hz - 250Hz
- Bass Boost Range
- 0 - 12dB
Electrical & Physical
- Power Supply
- 14.4V (9V-15V) Negative Ground
- Fuse Rating
- 60 A
- Dimensions
- 230mm x 316mm x 50mm
- Unit Weight
- 2.07 kg
Features
- Protection Systems
- Overload ProtectionShort Circuit ProtectionThermal Protection
