14mm Double Color Mini LED Indicator Light
This 14mm metal indicator light features a double color mini LED lamp. It is designed for indicating signals in equipment lines for electrical power, telecommunications, and various machinery.
Technical Specifications
Product Overview
High-Efficiency 14mm Dual-Color LED Indicator

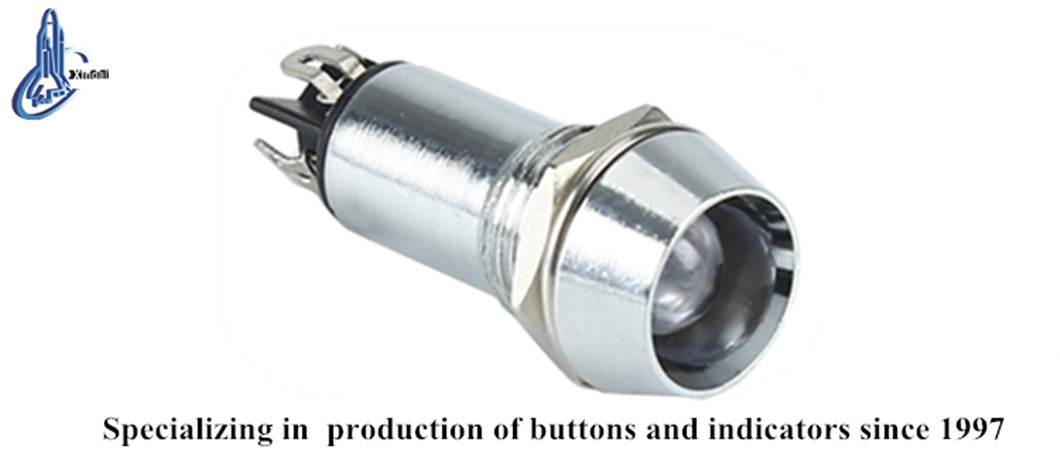

The AD22C-14TE is a compact 14mm metal indicator light designed to replace traditional incandescent and neon lamps with high-brightness LED technology. Featuring a durable metal housing and a double-color signaling system, it provides clear visual status updates for industrial control panels. This energy-efficient indicator is built for long-term reliability in demanding environments such as electrical power, telecommunications, and machine tool applications.
Key Performance Metrics
Performance Highlights
2.5 kV
Working Frequency Voltage
2 MΩ
Insulation Resistance
14 mm
Mounting Diameter
Technical Specifications
- Operating Voltage
- 6V to 220V AC/DC
- Voltage Wave Allowed
- ±20%
- Dielectric Strength
- 2.5kV (AC valid value), 1min
Design & Construction
Connection Type
Fast-connectBolt-type connector
- Housing Material
- Metal with Polycarbonate Lampshade
Operation
Dual-Color Logic
- Current through X0 and X1: Green light
- Current through X0 and X2: Red light
- Available Color Pairs
- Red & GreenYellow & GreenRed & BlueYellow & Blue
Applications
Target Industries
- Electrical Power Systems
- Telecommunications Equipment
- Machine Tools
- Watercraft & Marine
- Textile & Printing Machinery
- Mining Machinery
Physical Dimensions
Installation Data
| Parameter | Value |
|---|---|
| Installation Diameter | 14mm |
| Head Diameter | 15mm |
| Max Panel Thickness | 6mm |
| Body Diameter | 10mm |
