Technical Specifications
Product Overview
Industrial High-Speed Braiding Capability

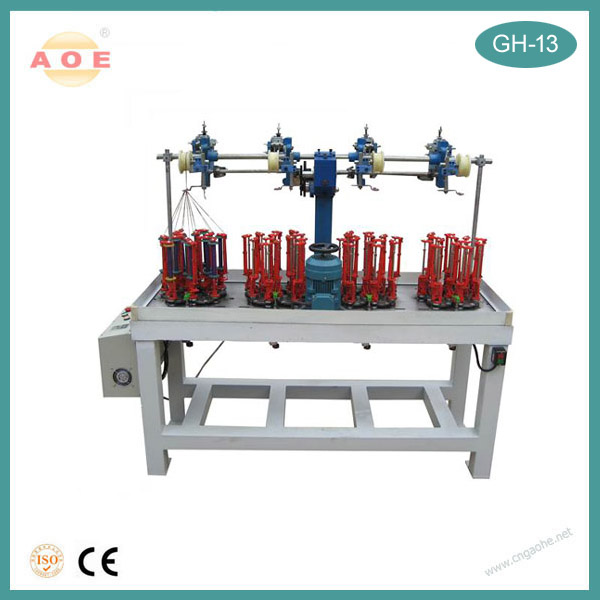

This 13-spindle high-speed braiding machine is engineered for the efficient production of flat shoelaces, piping tape, jacquard tape, elastic bands, and various rope types. It features a robust design with precision-machined components and high-frequency surface treatment on rotors to ensure durability and consistent quality. Equipped with a frequency converter for speed control and an automatic yarn-cutting device, this machine offers both operational safety and high throughput for industrial textile manufacturing.
Technical Specifications
- Model
- GH-13
- Production Heads
- 4
- Carriers Per Head
- 13
- Maximum Speed
- 300 RPM
- Bobbin Size
- 48 x 140 mm
- Machine Dimensions
- 1150 x 450 x 1700 mm
Power and Performance
Motor Power
0.75 kw
Power Rating
- Voltage Compatibility
- 220/380 VAC, 50/60 Hz
Manufacturing Standards
Materials Used
- Ductile Iron 800 (Panel)
- Ductile Iron 600 (Core shaft rotor)
- Nylon 66 (Rotor nylon pad)
- Certifications
- CE
