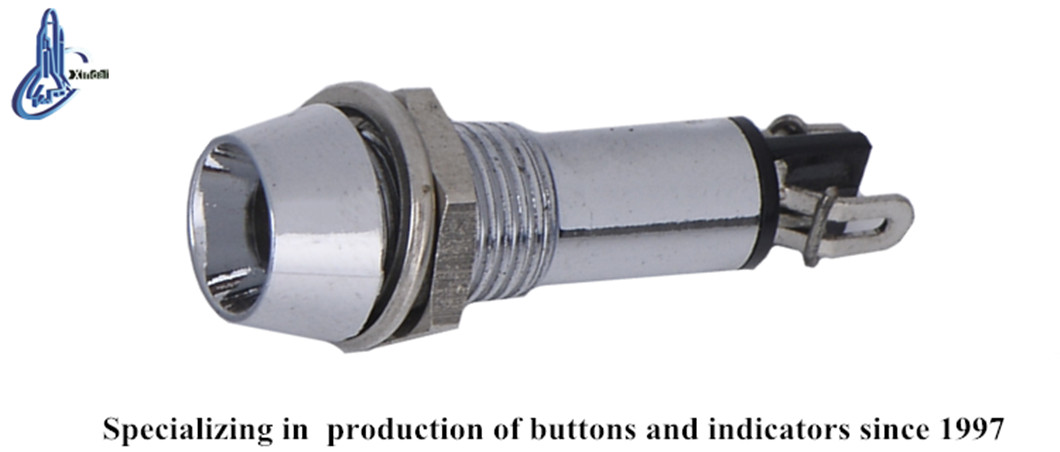

12mm LED Indicator Light
This 12mm LED indicator light is designed for panel mounting. It is suitable for use as a signal lamp in various electrical power applications.
Technical Specifications
Overview
High-Efficiency LED Signal Solution
The AD22 series 12mm LED indicator lights utilize high-brightness LED chips as a reliable light source, offering a modern replacement for traditional incandescent and neon lamps. Designed for industrial applications, these indicators feature low power consumption, a compact volume, and a lightweight profile. The polycarbonate lampshade provides high intensity and superior anti-surge performance, while the bolt-type connectors ensure a safe and convenient installation process.
Technical Performance
Key Technical Metrics
12 mm
Mounting Diameter
2.5 kV
Working Frequency Voltage
2 MΩ
Insulated Resistance
- Voltage Wave Allowance
- ±20%
Design & Construction
- Light Source
- LED Shining Chip
- Materials
- Polycarbonate LampshadeMetal HousingAnti-surge Construction
- Connector Type
- Bolt-type / Fast-connect options
Applications
Target Industries
- Electrical Power
- Telecommunication
- Machine Tools
- Watercraft
- Textile Machinery
- Printing Equipment
- Mine Machinery
Circuit Configurations
Available Circuit Types
| Indicator Type | Voltage Range |
|---|---|
| AC and DC Indicator | AC/DC 6V ~ 220V |
| AC Indicator | AC 220V, AC 380V |
| Double-color Indicator | DC, AC 110V ~ 220V |
Product Features
Core Benefits
Long LifeLow ConsumptionHigh BrightnessGood ReliabilityAnti-Surge
