Technical Specifications
Product Overview

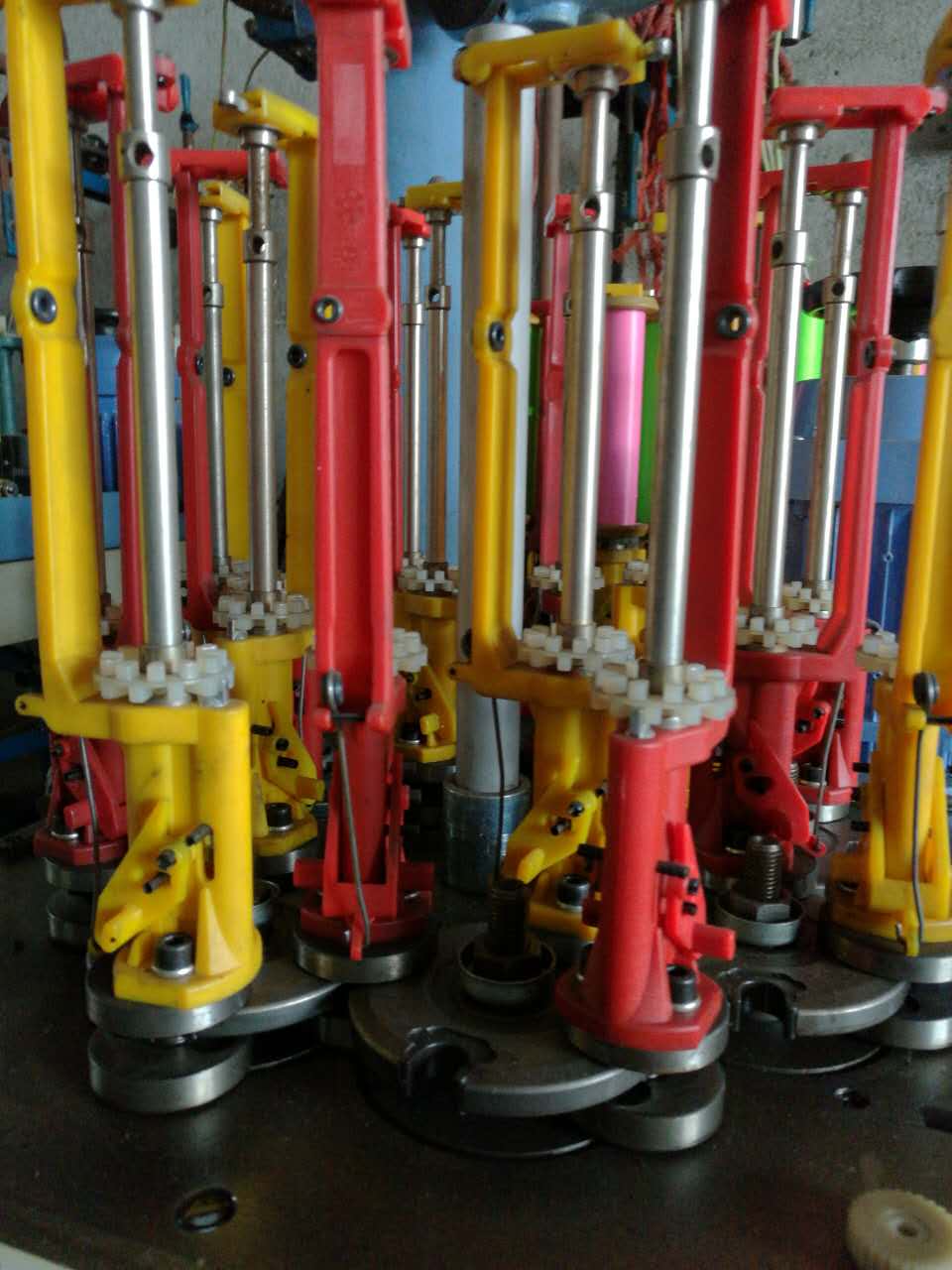

High-Performance Lace Braiding

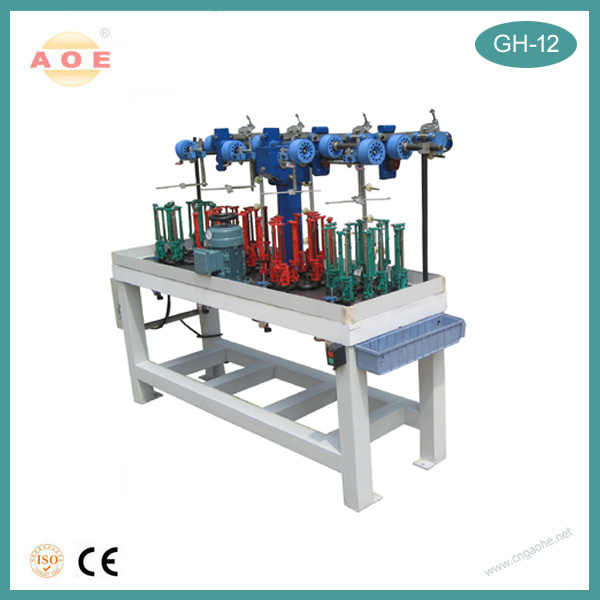

This 12-spindle high-speed braiding machine is engineered for the efficient production of intricate lace patterns and various textile braids. Designed for industrial-grade performance, it incorporates advanced features like frequency inverter-controlled speed, automatic yarn-break sensors, and a robust structural design to ensure consistent, high-quality output. It is a versatile solution suitable for manufacturing high-strength cables, safety ropes, and decorative textile components.
Technical Specifications
Performance Metrics
4 heads
Production Heads
12 pcs
Carriers Per Head
300 RPM
Max Speed
- Model
- GH-12
- Electrical Specs
- 220/380VAC, 50/60HZ
- Motor Power
- 0.75 kW
- Machine Size
- 1150 x 450 x 1700 mm
- Bobbin Dimensions
- 48 x 140 mm
Operating Features
Control System
- Frequency inverter-controlled speed
- Automatic yarn-break sensor
- Automatic stop mechanism for empty bobbins
- Precision speed settings
- Integrated control cabinet
Applications
- Applicable Products
- High strength cablesFire ropesMountaineering ropesMarine ropesSafety ropes
Supply Details
Scope of Supply
- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and spare parts
- Training and trial operation
