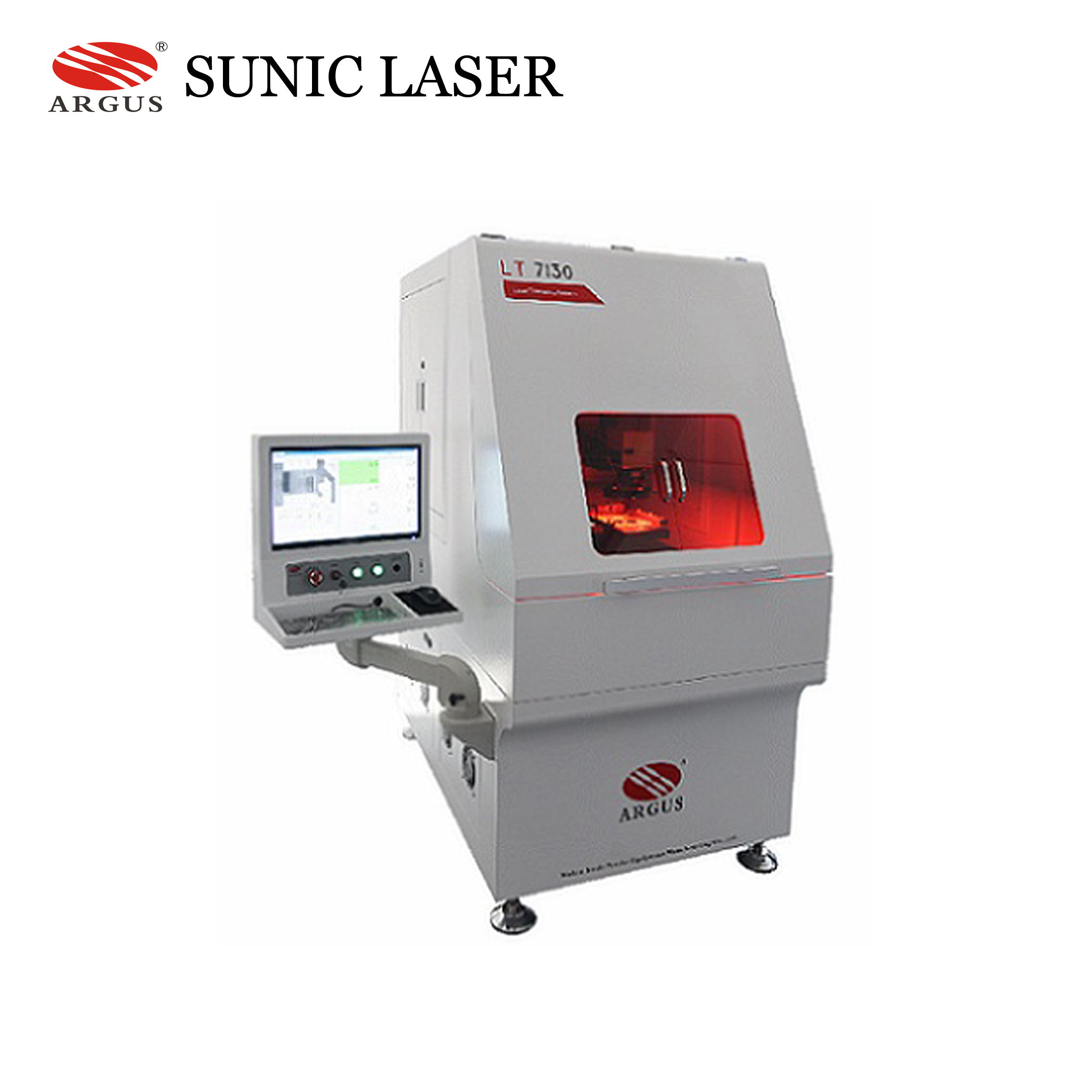

10W Resistance Laser Trimming Machine for PCB and IC Adjustment
This 10W resistance laser trimming machine is designed for adjusting resistance in PCB boards and ICs. It allows for accurate and controlled material ablation, which ensures optimal performance and reliability of electronic components.
Technical Specifications
Product Overview
High-Precision Resistance Laser Trimming
This 10W laser trimming machine is engineered for the precision adjustment of thick and thin-film resistors on PCBs and ICs. Utilizing an imported fiber laser and a high-resolution CCD surveillance system, it ensures exceptional incision quality and rapid target acquisition. The system's robust construction, featuring precision screws and dual linear guides, facilitates high-speed, repeatable trimming across a wide range of industrial electronic applications.
Technical Specifications
Supported Trimming Methods
- Plunge Trimming
- Double Plunge
- L Trimming
- U Trimming
- Double U Trimming
- Serpentine Trimming
- Laser Power
- 10 W
- Cooling System
- Air Cooling
Performance Features
Automation & Control
- Computer-controlled focal length
- Automatic focus adjustment
- Programmable probe movement
- Optional GPIB interface
- Imaging System
- High-resolution CCDMagnification lensReal-time observation
Application Scope
- Suitable Components
- Thick-film circuitsThin-film circuitsPressure transducersCurrent sensorsSunlight sensors
