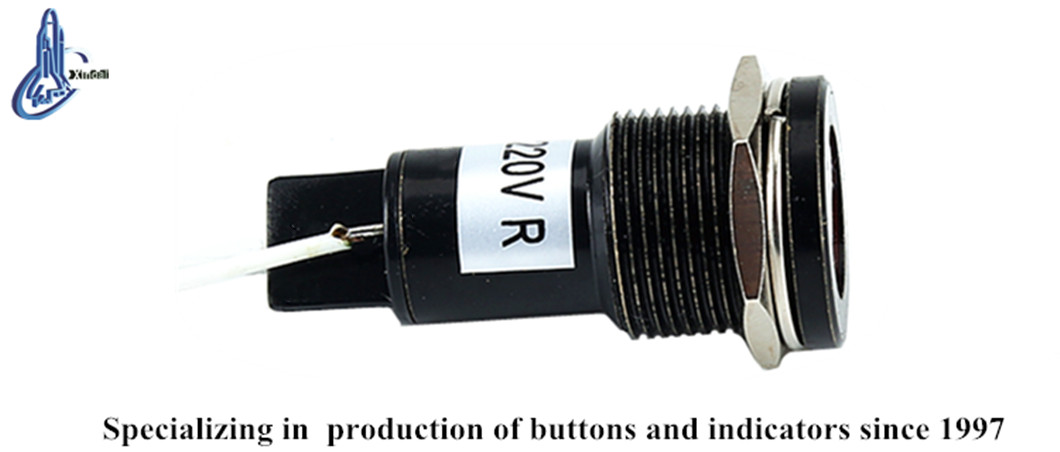

10mm LED Indicator Signal Lamp with Wire
This 10mm LED signal lamp provides clear visual indication. It features a black housing and comes pre-wired for easy installation.
Technical Specifications
Overview
High-Efficiency LED Signaling
The AD22C-10D/L is a compact 10mm LED signal indicator designed to replace traditional incandescent and neon lamps. It features high brightness, low power consumption, and a long operational life, making it an ideal choice for modern industrial control panels. Built with a durable polycarbonate lens and a black housing, it offers excellent anti-surge performance and reliable visual signaling in demanding environments.
Key Metrics
Key Performance Metrics
10 mm
Mounting Diameter
2.5 kV
Dielectric Strength
2 MΩ
Insulation Resistance
Technical Specifications
Available Colors
RedGreenYellowBlueWhite
- Available Operating Voltages
- 6V AC/DC12V AC/DC24V AC/DC36V AC/DC48V AC/DC110V AC/DC127V AC/DC220V AC/DC
- Voltage Fluctuation Tolerance
- ±20%
Physical Characteristics

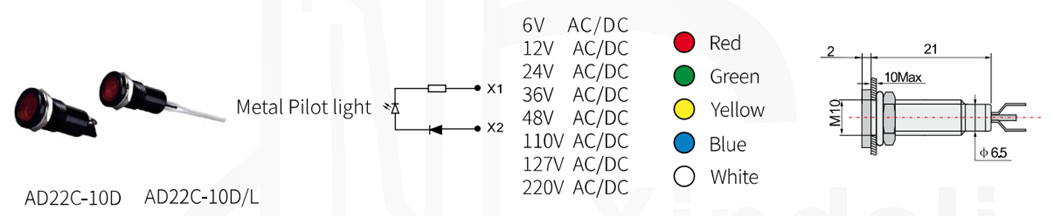

Physical Dimensions
| Feature | Specification |
|---|---|
| Mounting Hole | 10mm |
| Overall Length | 21mm |
| Max Panel Thickness | 10mm |
| Housing Color | Black |
Application Areas
Recommended Applications
- Electrical Power Distribution
- Telecommunications Equipment
- Machine Tool Status Indication
- Watercraft and Marine Panels
- Textile and Printing Machinery
- Mining Equipment
Design Features
Construction Features
- Polycarbonate lampshade with high intensity
- Anti-surge performance for circuit safety
- Pre-wired with cables for convenient installation
- Compact volume and light weight design
