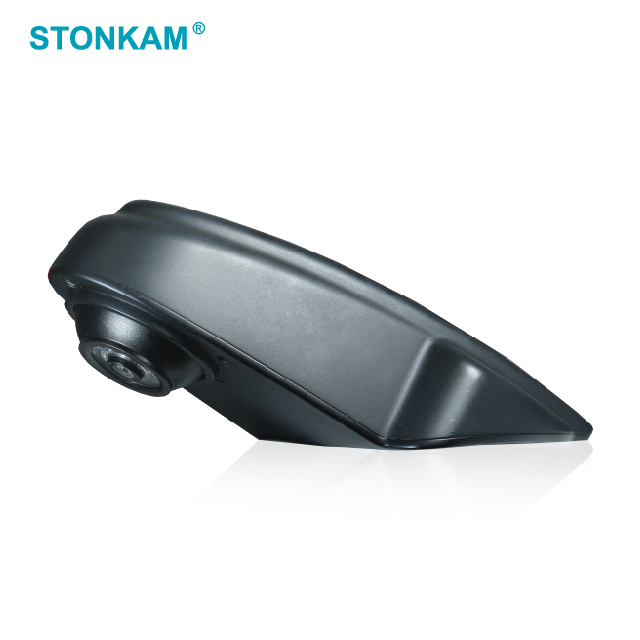

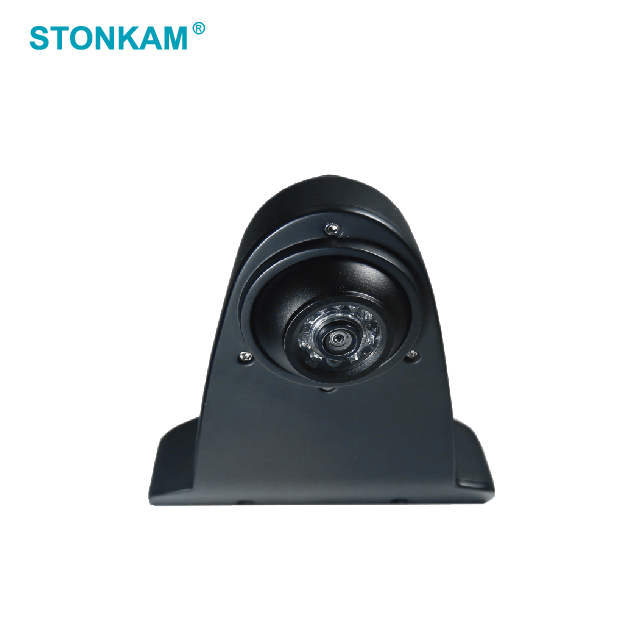

1080P Waterproof Backup Camera for Trucks
This backup camera for trucks features 1080P high definition and IP69K waterproof rating. It provides night vision and a wide viewing angle for enhanced safety.
Technical Specifications
Overview
High-Definition Vehicle Safety
This 1080P high-definition backup camera is engineered specifically for trucks and heavy-duty vehicles. It features a robust IP69K waterproof rating and anti-vibration resistance up to 17.3G, ensuring consistent performance in demanding industrial environments. With integrated night vision and multiple viewing angle options, it provides operators with the visibility needed for safe and precise maneuvering.
Imaging Performance
- Resolution
- 1080P
- Image Sensor
- 1/2.9" CMOS
- Frame Rate
- 25 fps / 30 fps
- Effective Pixels
- 1920(H) x 1080(V)
- Night Vision Distance
- 10 m
Technical Specifications
Technical Parameters
| Feature | Value |
|---|---|
| Scanning System | Progressive Scanning |
| S/N Ratio | Better than 52dB |
| Video Output | 1.0Vp-p, 75Ohm |
| Electronic Shutter | 1/25 (1/30)～1/50,000 Seconds |
Durability & Environment
Durability Metrics
69 IP
Waterproof Rating
17.3 G
Anti-Vibration
- Operating Temperature
- -20°C ~ +70°C
Installation & Options
Available Viewing Angles
- 110°
- 100°
- 70°
- 50°
- 35°
- Power Supply
- 12 V DC
- Optional Features
- Smart-IROEM ServiceODM Service
