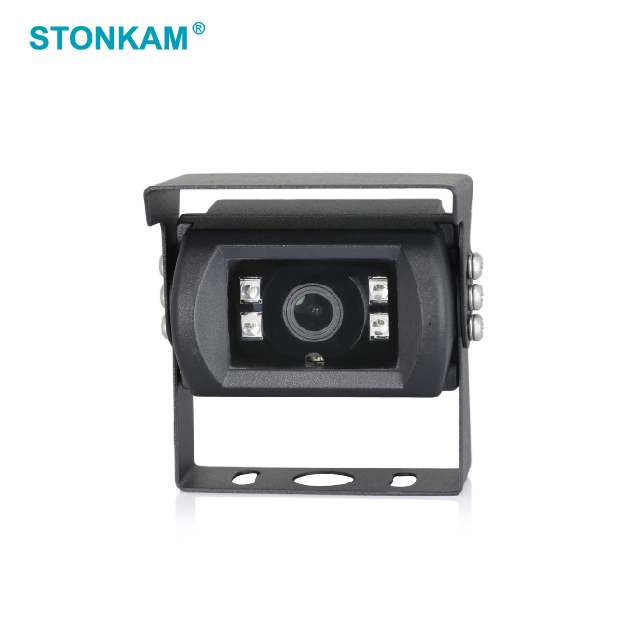

1080P IP69K Waterproof Vehicle Backup Camera
This 1080P backup camera is designed for trucks and other vehicles. It features an IP69K waterproof rating and infrared LEDs for night vision.
Technical Specifications
Overview
High-Performance Vehicle Monitoring
This 1080P high-definition vehicle backup camera is engineered for durability and clarity in demanding professional environments. With an IP69K waterproof rating and robust anti-vibration capabilities, it ensures reliable performance for trucks and heavy-duty vehicles. It features advanced night vision and flexible viewing angles, providing essential safety and visibility for maneuvering in challenging conditions.
Key Features
Available Viewing Angles
130°110°100°70°50°35°
- Core Capabilities
- 1080P ResolutionIP69K WaterproofNight VisionAnti-VibrationMirror/Normal Image Switchable
Imaging Performance
Imaging Metrics
1,080 P
Resolution
30 fps
Max Frame Rate
52 dB
S/N Ratio
Technical Specifications
Technical Data
| Parameter | Specification |
|---|---|
| Image Device | 1/2.9" CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Pixel Size | 2.8μm x 2.8μm |
| Scanning System | Progressive |
| Video Output | 1.0Vp-p, 75Ohm |
| Gamma Consumption | 0.45 |
| Electronic Shutter | 1/25 (1/30)～1/50,000s |
Environmental & Power
Operating Conditions
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -30°C to +80°C
- Humidity: 95% RH Max
- Vibration Resistance: Up to 17.3G (ISO 16750-3)
- Power Input: 12V DC
- Night Vision Range
- 10 m
