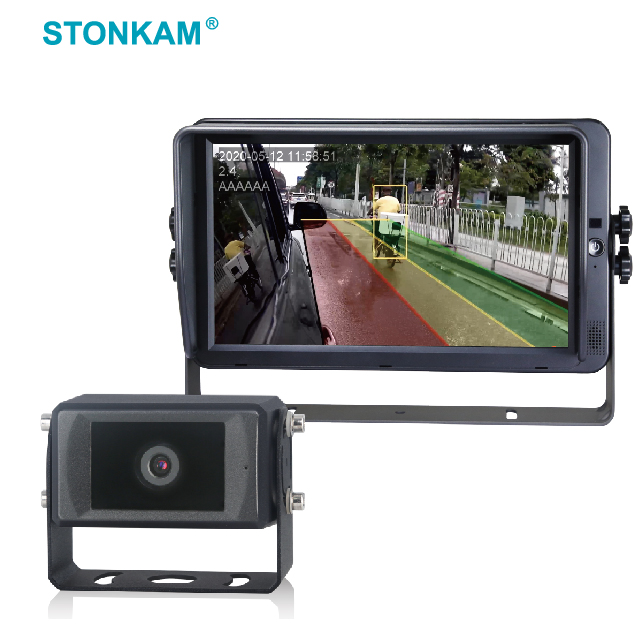

1080P HD Pedestrian Detection Camera
This 1080P HD camera uses deep learning to detect pedestrians around a vehicle. It warns drivers of potential collision risks to improve driving safety.
Technical Specifications
Overview
Intelligent Pedestrian Detection System
This advanced 1080P HD camera system utilizes deep learning technology to identify and track pedestrians in real-time. Designed to improve driving safety, it provides critical warnings for potential collision risks in front of, alongside, and behind the vehicle. The system is versatile, suitable for deployment on buses, coaches, trucks, and heavy construction machinery.
Performance & Detection
Horizontal Viewing Angles
- Side view: 52°
- Rear view: 140°
- Front/Side Detection Range
- 20 M
- Rear Detection Range
- 12 M
Technical Specifications
Frame Rate
- 25
- 30
- Resolution
- 1920 x 1080P
- Video Output
- AHD (1.0Vp-p, 75Ohm)
Electrical & Connectivity
Power Consumption
150 mA
IR Off
700 mA
IR On
- Supply Voltage
- DC10V~32V
- Interfaces
- USB 2.0Audio Alarm OutputWiFi Hotspot
Durability & Environment
Ingress Protection
IP69K
- Shock Resistance
- 5.9 G
- Operating Temperature
- -20 ~ +70°C
