1080P 360° Vehicle Surround View System
This 1080P 360° vehicle surround view system provides a comprehensive view of the vehicle's surroundings. It enhances safety by eliminating blind spots and assisting with parking and maneuvering in tight spaces.
Technical Specifications
Overview
Comprehensive Vehicle Surround View System
This 1080P 360° surround view system is engineered to eliminate blind spots and enhance safety for commercial and emergency vehicles. By utilizing multiple high-definition cameras and seamless image stitching, it provides drivers with a real-time, distortion-free view of their surroundings. The system is designed for reliability in demanding environments, offering advanced recording capabilities and flexible sensor integration to assist with parking, maneuvering in narrow spaces, and accident prevention.
Camera & Imaging

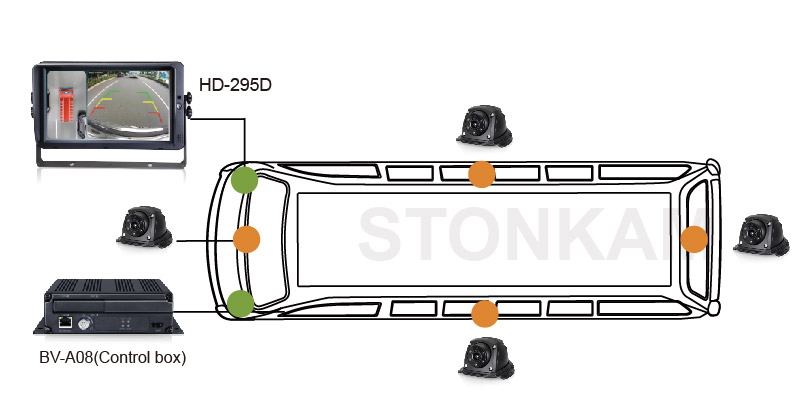

Camera Configuration
| Feature | Specification |
|---|---|
| Resolution | 1080P |

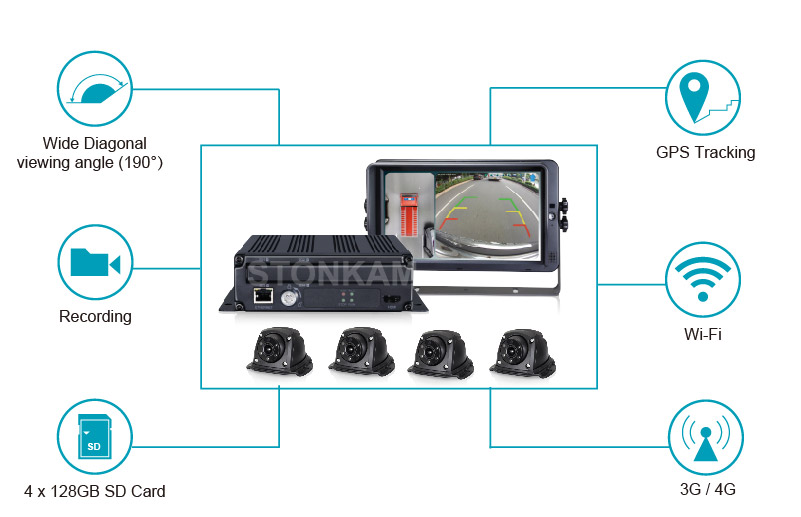

| Viewing Angle (Diagonal) | 190° |
| Horizontal Viewing Angle | >170° |
| Standard Channels | 4CH |
| Maximum Supported Channels | 8CH |

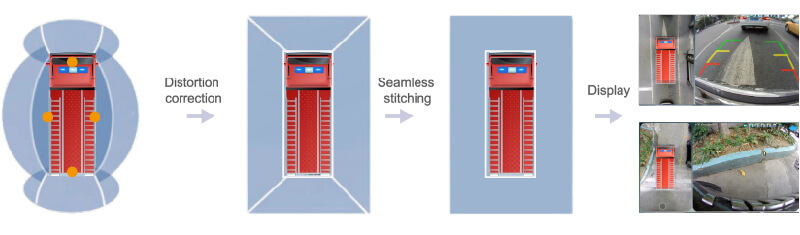

Imaging Technologies
Distortion CorrectionSeamless StitchingWide Angle Fish Eye
Recording & Storage
Recording Performance
30 fps
Frame Rate
4 CH
Recording Channels
- Storage Capacity
- 4 x 128GB SD Cards
- Video Compression
- H.264
- Pre-record Function
- 15 seconds
Connectivity & Power
Connectivity
- Wi-Fi
- GPS Tracking (Optional)
- 3G/4G Support
- Ethernet
- HDMI Output
- Power Input
- 10 ~ 32V DC
- Operating Temperature
- -20°C to +70°C
Advanced Features

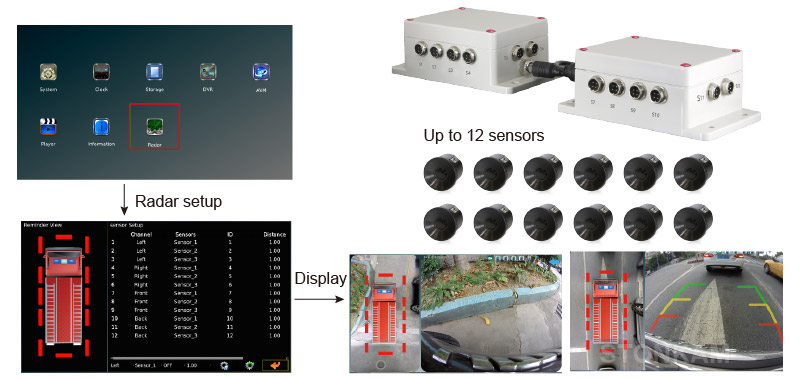

- Sensor Integration
- 12 sensors max
- Calibration
- Simplified calibration process
- Recommended Applications
- TrucksBusesEmergency VehiclesVansRVs
