10000W Mono Channel Class D Car Amplifier
This is a mono channel Class D car amplifier with a high power output of 10000W. It is designed to provide efficient and reliable performance for demanding car audio systems.

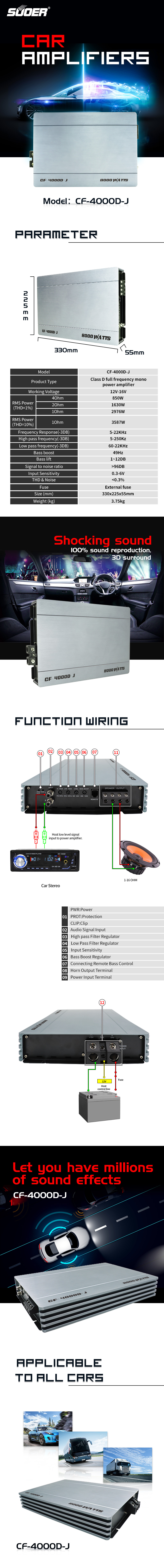

Technical Specifications
Product Overview
High-Performance Class D Mono Amplifier

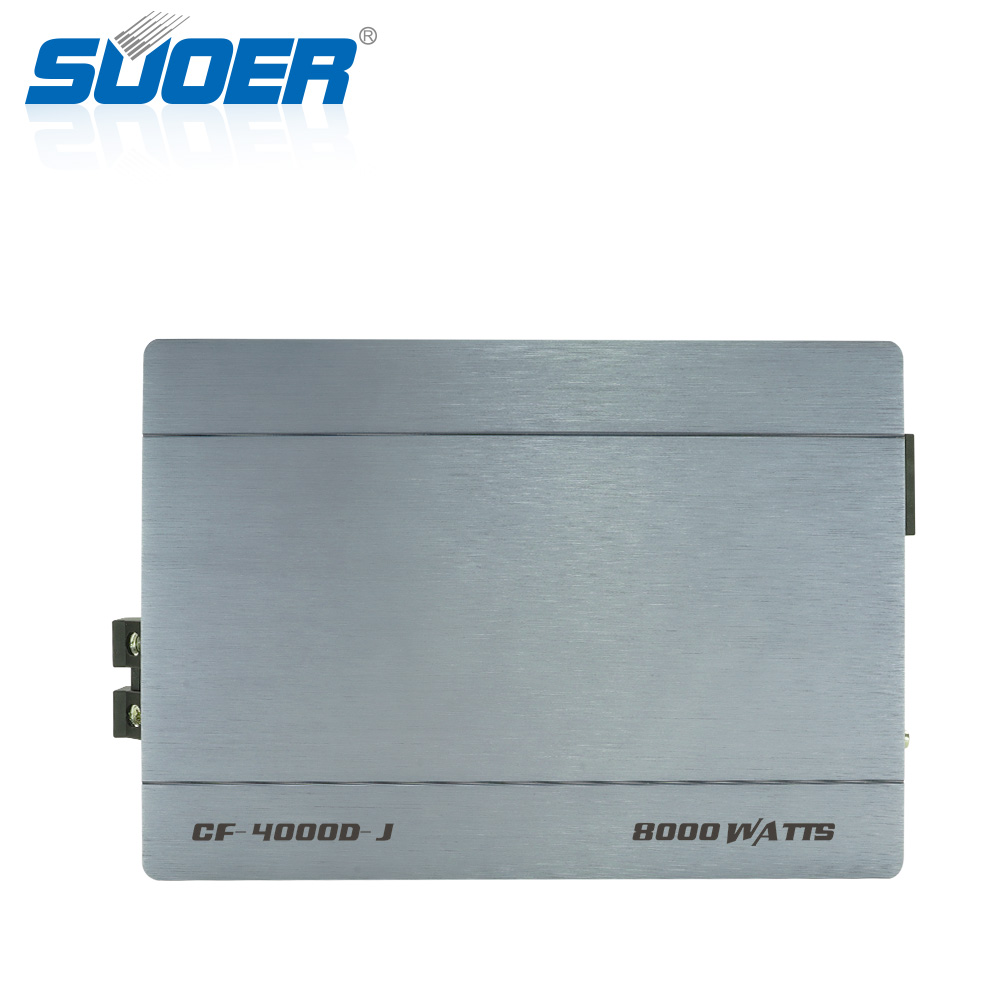

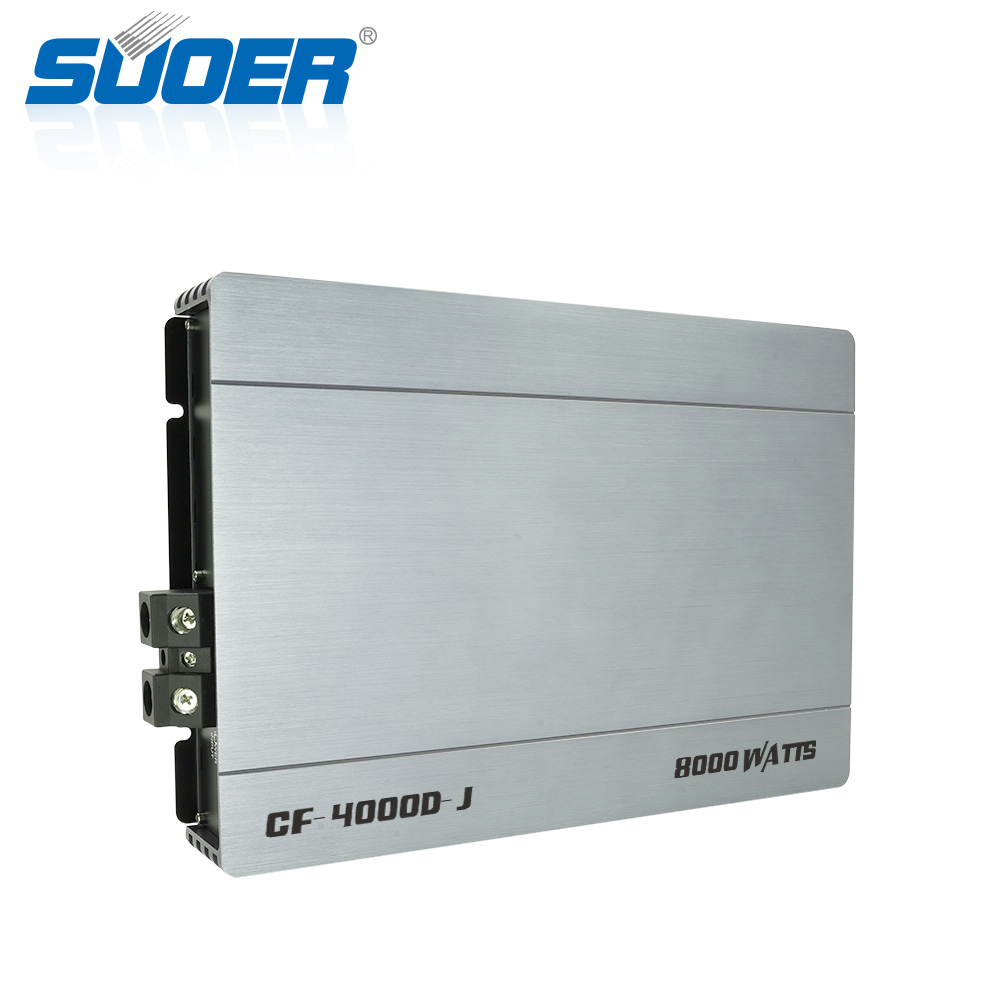

The CF-4000D-J is a powerful mono channel Class D car amplifier engineered for high-fidelity audio systems and demanding subwoofer setups. It delivers exceptional efficiency and minimal heat generation, ensuring reliable performance even at high output levels. With a robust design and versatile tuning options like bass boost and variable filters, it provides a clean and immersive 3D surround sound experience for any vehicle.
Key Performance Metrics
Power Performance
2,976 W
RMS Power (1 Ohm, THD 1%)
3,587 W
RMS Power (1 Ohm, THD 10%)
96 dB
Signal to Noise Ratio
Technical Specifications
RMS Power Output
| Impedance | Power (RMS) | Condition |
|---|---|---|
| 4 Ohm | 850W | THD=1% |
| 2 Ohm | 1630W | THD=1% |
| 1 Ohm | 2976W | THD=1% |
| 1 Ohm | 3587W | THD=10% |
- Working Voltage
- 12V-16V
- Frequency Response (-3dB)
- 5Hz - 22KHz
Audio Tuning
Filter Configurations
- High Pass Frequency: 5Hz - 250Hz (-3dB)
- Low Pass Frequency: 60Hz - 22KHz (-3dB)
- Bass Boost Center: 49Hz
- Bass Lift Range: 1-12dB
- Input Sensitivity
- 0.3V - 6V
- THD & Noise
- <0.3%
Features & Connectivity
Status Indicators
Power LEDProtection LEDClip Indicator
- Interface & Controls
- Audio Signal InputHigh Pass Filter RegulatorLow Pass Filter RegulatorInput Sensitivity AdjustmentBass Boost RegulatorRemote Bass Control PortHorn Output TerminalPower Input Terminal
Physical Dimensions
- Unit Dimensions
- 330 x 225 x 55 mm
- Net Weight
- 3.75 kg
- Circuit Protection
- External Fuse
