Technical Specifications
Overview

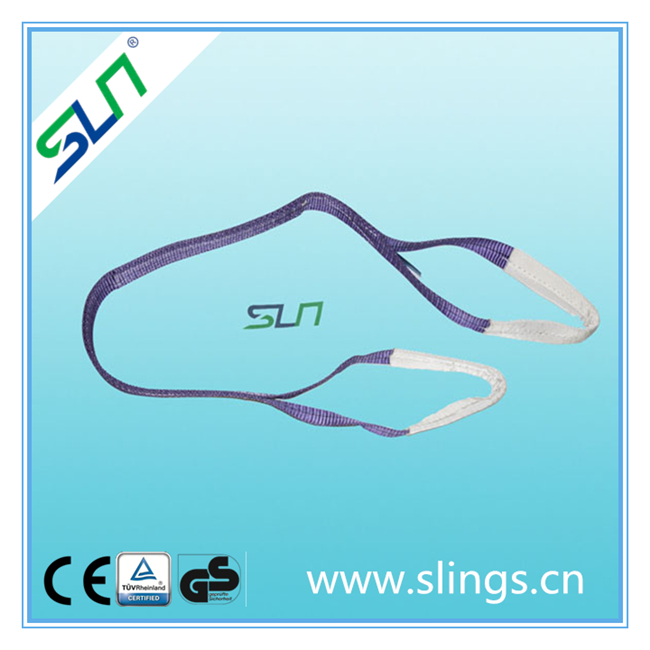

High-Strength Polyester Webbing Sling
This 1-Ton polyester webbing sling is engineered for professional lifting and rigging applications, featuring a durable eye-to-eye design for versatile connection options. Constructed from 100% high-strength polyester, it provides excellent resistance to abrasion and low elongation under load. Certified to CE and GS standards, this sling ensures high safety and reliability for industrial and construction environments.
Key Features
Available Safety Factors
5:16:17:1
- Safety Certifications
- CEGSTÜV Rheinland Certified
- Material
- 100% Polyester
Technical Specifications
Working Load Limit
1,000 kg
WLL
Sling Dimensions
- Thickness: 7.5 mm
- Minimum Length: 0.5 m
- Maximum Length: 100 m
Product Range
Model Specifications Table
| Type | WLL (KG) | Width (MM) | Weight (KG/M) 5:1 |
|---|---|---|---|
| LiftHZBD-02 | 2,000 | 25 | 0.38 |
| LiftHZBD-04 | 4,000 | 50 | 0.68 |
| LiftHZBD-06 | 6,000 | 75 | 1.28 |
| LiftHZBD-08 | 8,000 | 100 | 1.61 |
| LiftHZBD-10 | 10,000 | 125 | 2.04 |
| LiftHZBD-12 | 12,000 | 150 | 2.32 |
| LiftHZBD-16 | 16,000 | 200 | 3.3 |
| LiftHZBD-20 | 20,000 | 250 | 4.62 |
