Z-Type Bucket Elevator Conveyor

This Z-type bucket elevator conveyor provides efficient vertical transportation of materials. It is designed for high-speed operation and gentle handling of products.

Request a Quote Download PDFPDF

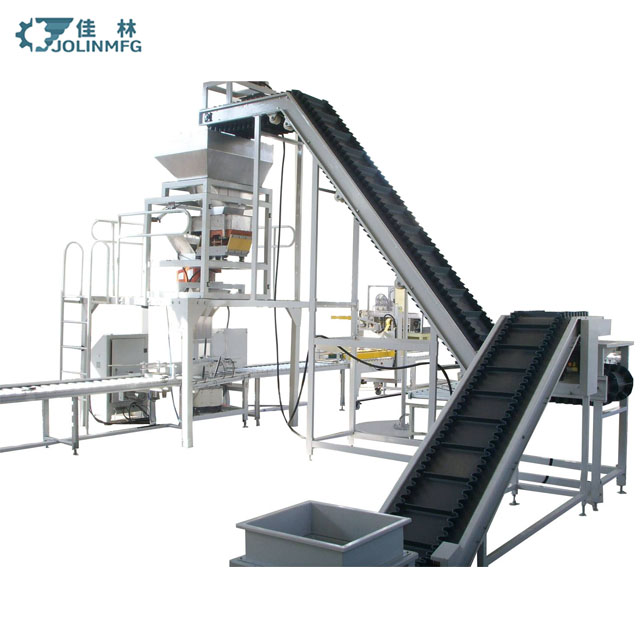

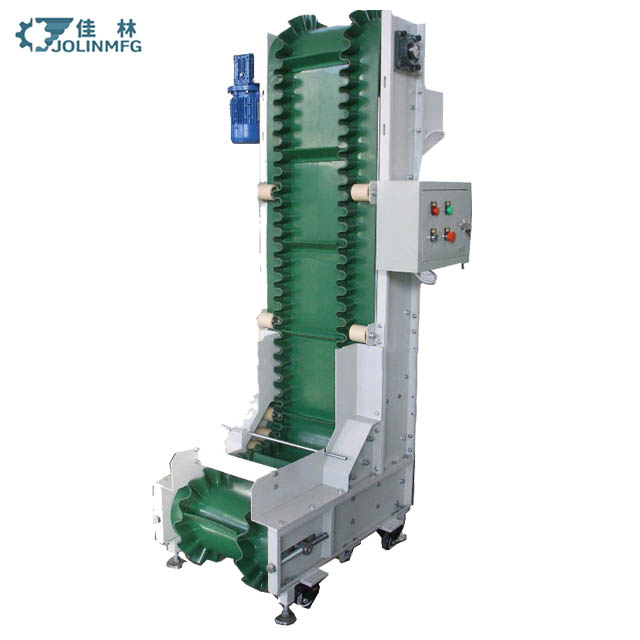

Conveyor Belt Bucket Conveyor The Price Of Factory High Speed Z Bucket Elevator Bucket Con - Image 1

Technical Specifications

Overview

High-Efficiency Z-Type Vertical Conveying

The Z-Type Bucket Elevator Conveyor is an advanced solution for high-speed vertical transportation of bulk materials in industrial environments. Designed for gentle handling, it features a continuous series of interconnected buckets that ensure efficient delivery from feeding to discharge points. Its modular construction and robust frame make it ideal for demanding applications in food processing, agriculture, and chemical industries.

Z-Type Bucket Elevator — High-speed Z-bucket elevator designed for vertical transportation of bulk materials.

Key Capabilities

Integrated Solutions

Convey & Deliver Systems
Vertical Elevation
Packing Machine Integration
Palletizer Robot Compatibility
Stereoscopic Warehouse Support
Automatic Central Kitchen Applications

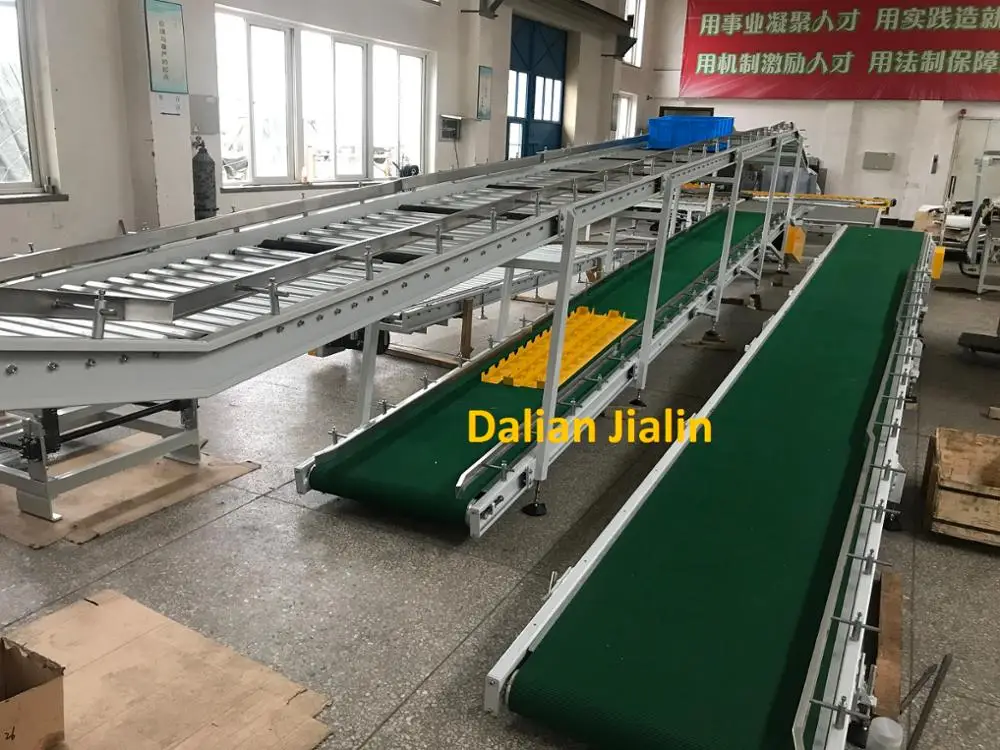

Integrated Conveyor Line — System featuring parallel belt conveyors and vertical lifting units.

Technical Features

Performance Highlights

1 Level

High-Speed Operation

1 Capability

Vertical Lifting

Conveyor Configuration: Z-Type ElevatorBucket ConveyorCorrugated Sidewall BeltRoller ConveyorModular Design

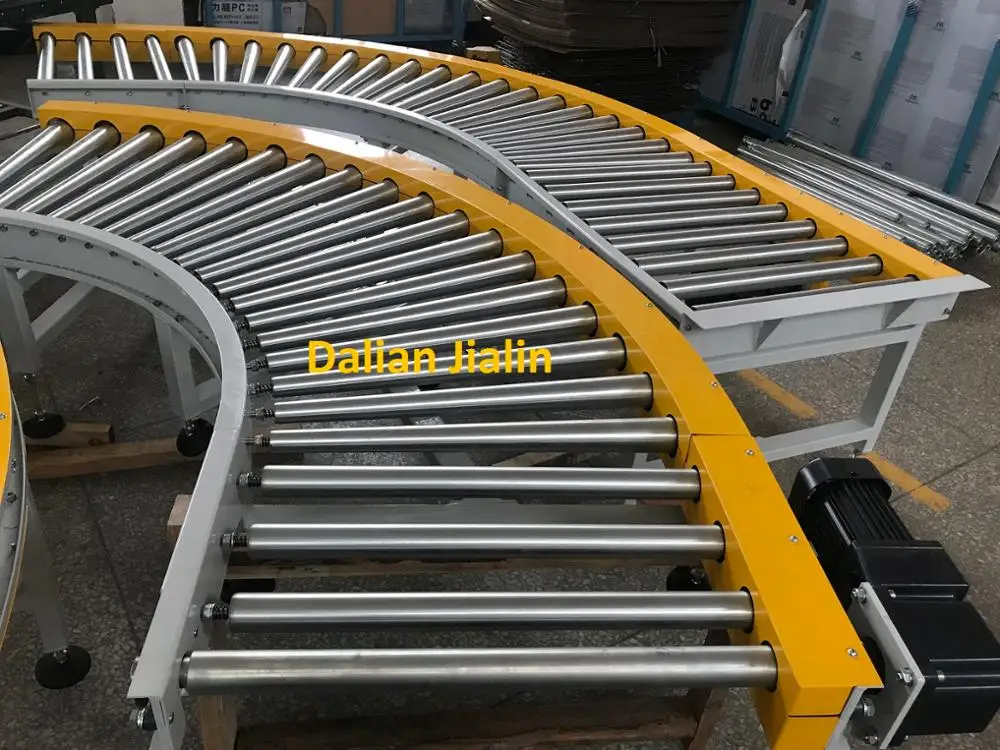

Curved Roller Section — Precision-engineered curved roller sections for smooth directional changes.

Construction & Design

Material Handling Features

Gentle handling of bulk products
Durable metal frame construction
Adjustable height supports
Integrated safety guards
Precision control panel for monitoring

Build Quality: Stainless Steel RollersAluminum RollersPainted Steel FrameCorrosion Resistant

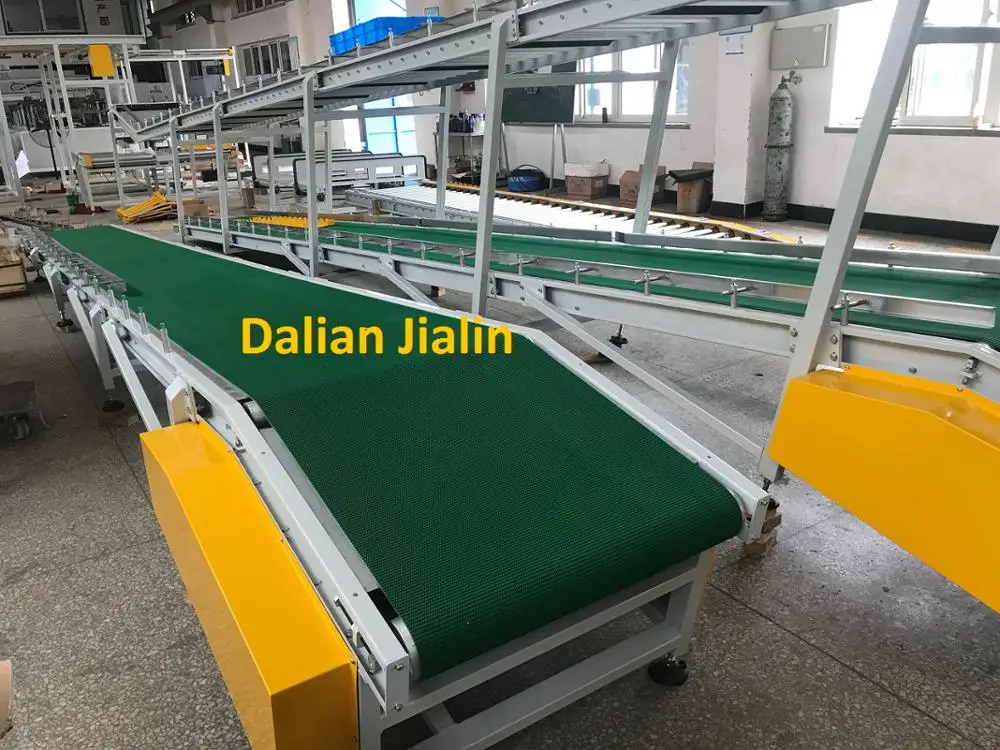

Belt Conveyor with Safety Guards — Durable green conveyor belt with integrated safety guards and robust frame.

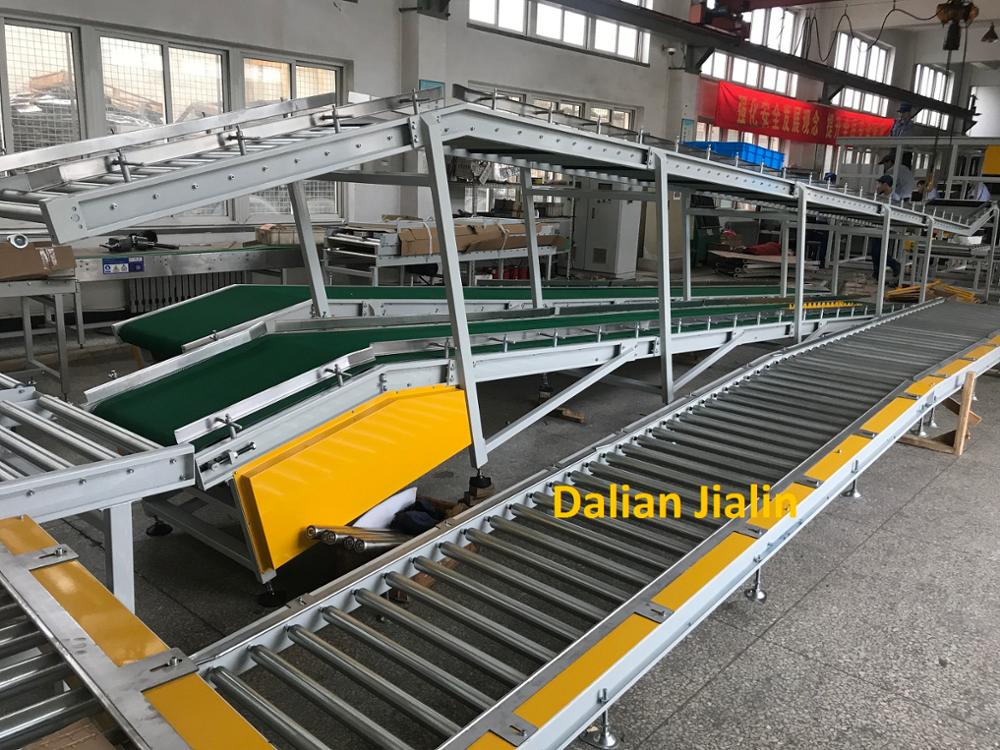

Modular Conveyor System — Combination of horizontal and inclined sections for flexible facility layouts.

Compliance & Quality

Quality Standards

ISO 9001:2000

Applications

Target Industries: Food & BeverageAgricultureChemical IndustryWarehousingDistribution CentersManufacturing

Control Systems

Compatible Control Components: MitsubishiSchneider ElectricSMCABBOmronSiemens
