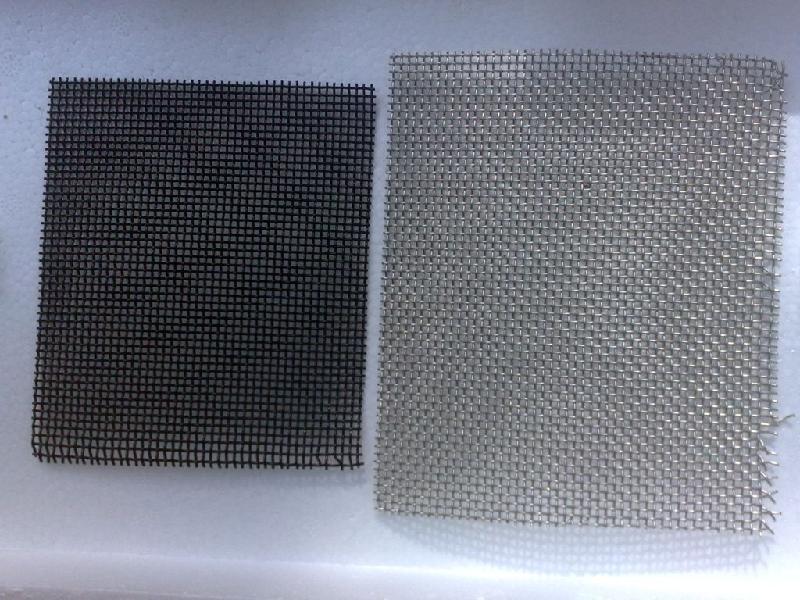

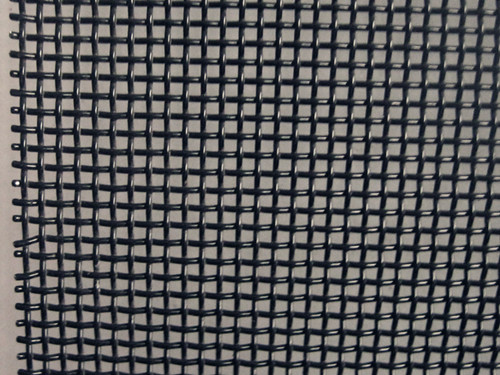

Woven Wire Mesh Security Screen
This high-tensile woven wire mesh is designed for security applications in windows and doors. It provides a robust physical barrier against intrusion while maintaining visibility and airflow.
Technical Specifications
Product Overview
High-Performance Security Screening
This woven wire mesh security screen serves as a high-strength barrier designed for residential, commercial, and industrial window and door applications. Engineered for both impact resistance and aesthetic appeal, the screen provides a transparent view from the inside while maintaining a hazy, private barrier when viewed from the outdoors. Its construction offers robust protection against intrusion, insects, and projectiles, ensuring a secure and ventilated environment.
Material & Construction
- Available Materials
- SS304SS304LSS316SS316LCarbon Steel
- Surface Finish
- Black powder coated
Specifications
Mesh & Wire Configurations
| Mesh Density | Wire Diameter |
|---|---|
| 11 mesh | 0.8 mm |
| 12 mesh | 0.7 mm |
| 10 mesh | 0.9 mm |
| 8.5 mesh | 1.0 mm |
| 4 mesh | 1.6 mm |
Standard Panel Sizes (mm)
- 1200 x 2000
- 1200 x 2400
- 900 x 2000
- 900 x 2400
- 750 x 2000
- 750 x 2400
Security & Performance
Performance Metrics
1 Strong
Impact Resistance
1 Certified
Anti-Theft
1 Yes
Bullet-Proof
Logistics
- Minimum Order Quantity
- 150 pcs
