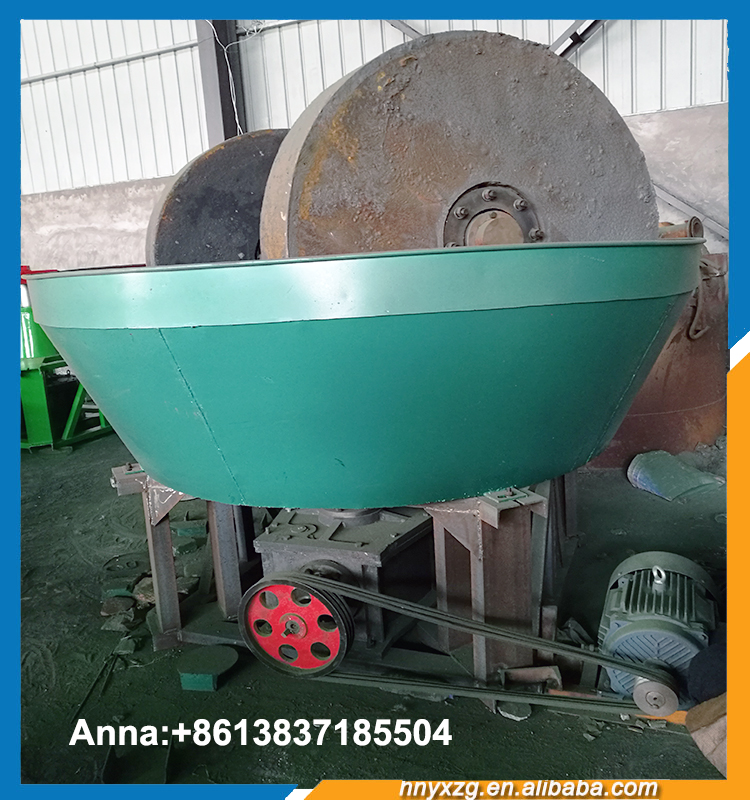

Wet Pan Mill for Gold Ore Processing
The wet pan mill is designed for grinding gold ore and other minerals into a slurry. It features heavy rollers rotating within a circular pan to effectively crush and pulverize materials.
Technical Specifications
Overview
High-Efficiency Gold Ore Grinding
The wet pan mill is a premier alternative to traditional ball mills, offering a small investment footprint with high output and low production costs. Specifically designed for small and medium-sized enterprises, it excels in processing gold, silver, lead, zinc, and copper ores. Its robust construction and easy installation make it an ideal choice for continuous operation in demanding mining environments.
Key Benefits
- Low initial investment and production costs
- High grinding efficiency and output
- Simple installation and maintenance
- Ideal for small to medium-scale beneficiation
Technical Specifications

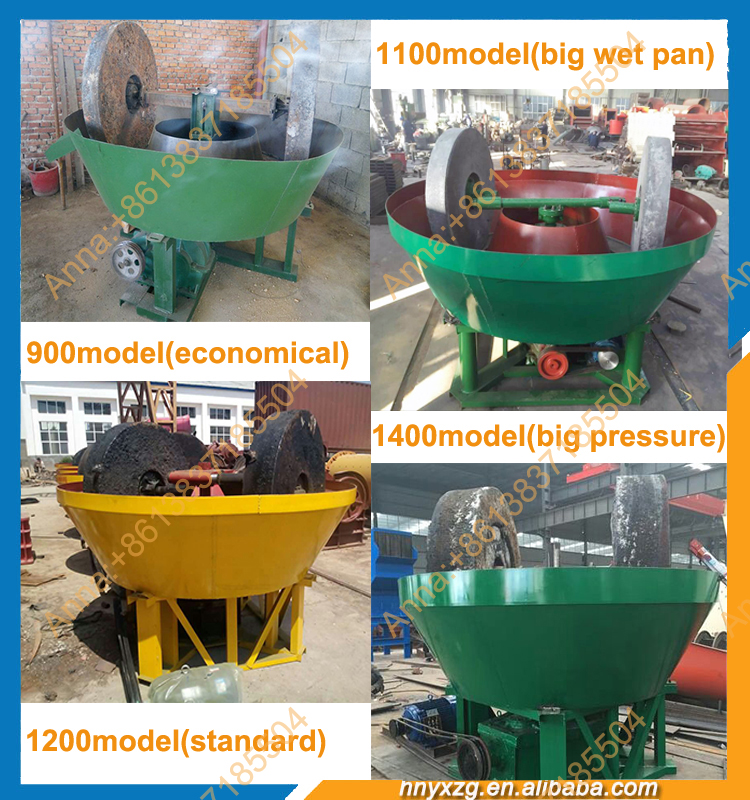

Model Specifications
| Model | Roller Dia (mm) | Roller Thickness (mm) | Base Dia (mm) | Power (kw) | Weight (t) |
|---|---|---|---|---|---|
| YX-1600A | 1600±10 | 400±10 | 2100±10 | 37 | 14.5 |
| YX-1500A | 1500±10 | 400±10 | 2050±10 | 30 | 11.5 |
| YX-1200A | 1200±10 | 250±10 | 1600±10 | 7.5-11 | 4.2 |
Performance Highlights
Applications
- Compatible Minerals
- GoldSilverLeadZincIronMolybdenumCopperAntimony
Working Principle
How it Works

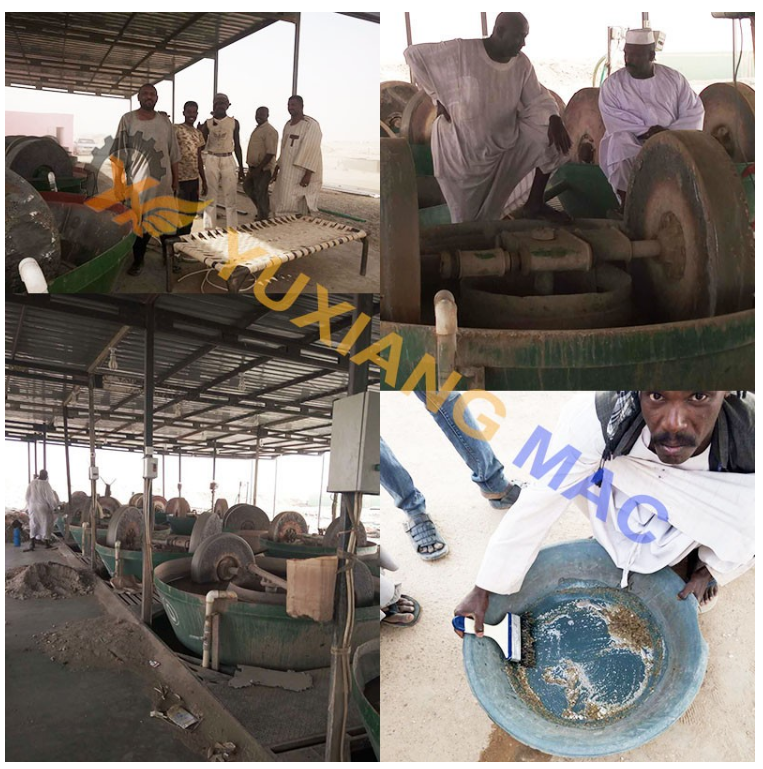

The machine utilizes the weight of heavy wheels to repeatedly squeeze and mill the ore until it is completely crushed. In gold processing, mercury is added to the water to form an amalgam with the liberated gold particles. After 24 hours of operation, the mercury is recycled and filtered through high-density cloth to recover the gold.
Construction & Parts

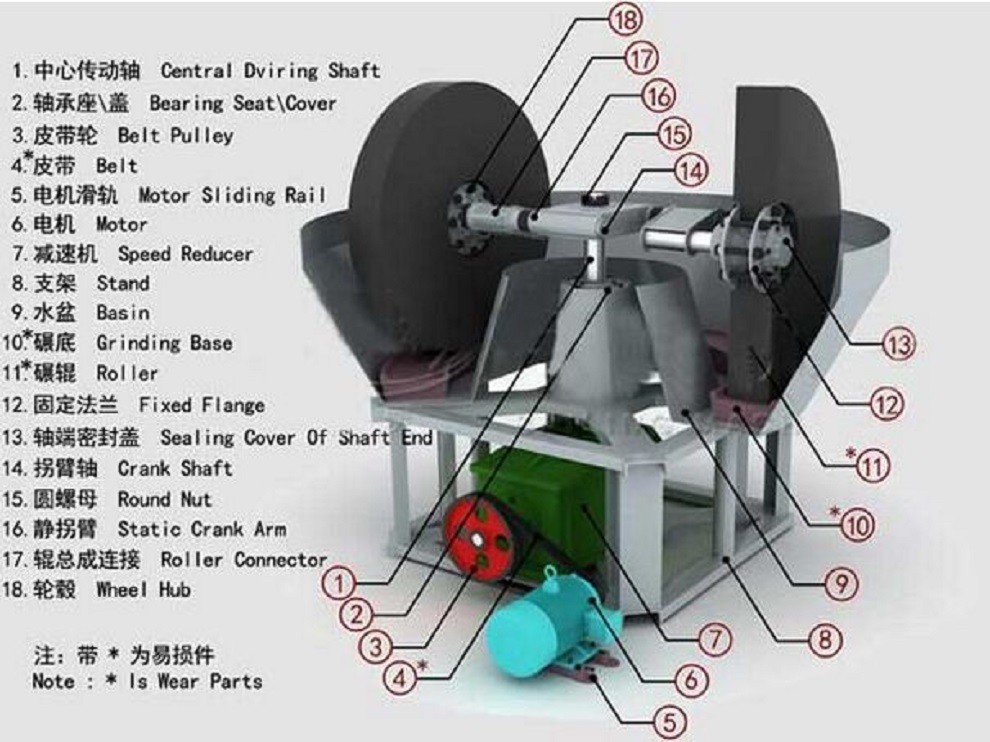

Main Components
- Central Driving Shaft
- Speed Reducer
- Grinding Base
- Heavy Rollers
- Basin
- Motor Sliding Rail
- Crank Shaft
Wear Parts
Compliance
- Quality & Compliance
- CEISO 9001Enterprise Credit AA
