Technical Specifications
Product Overview

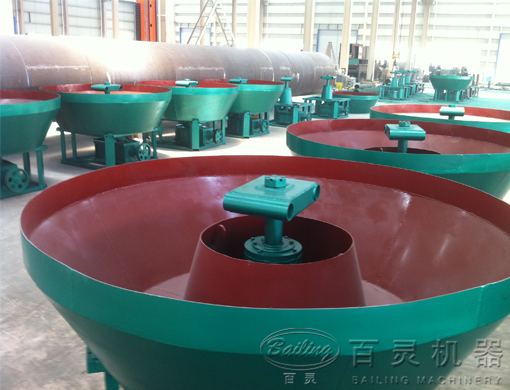

Versatile Wet Pan Grinding Mill
The wet pan grinding mill is a high-yield, cost-effective solution designed for mineral beneficiation. Featuring heavy-duty conical grinding wheels and an integrated scraper system, it maintains optimal material thickness for superior crushing and mixing efficiency. This equipment is ideal for processing various ores including gold, silver, iron, molybdenum, lead, and zinc, offering a minimum output of 150 tonnes per 24 hours.
Key Features
Performance Highlights
150 t/24h
Minimum Daily Throughput
4 cm
Optimal Material Layer
- Suitable Ore Types
- GoldSilverLeadZincIronMolybdenumAntimony
Technical Specifications
Model Specifications
| Model | Rotation Speed | Power (kW) | Weight (t) |
|---|---|---|---|
| 1600A | 20-22 r/min | 25 | 14.5 |
| 1500A | 20-22 r/min | 22 | 13.5 |
| 1500B | 20-22 r/min | 22 | 12.3 |
| 1400A | 16-18 r/min | 18.5 | 8.5 |
| 1300A | 16-18 r/min | 15 | 7.5 |
| 1200A | 17-19 r/min | 7.5 | 5.5 |
| 1100A | 17-19 r/min | 7.5 | 5 |
| 1000 | 13-15 r/min | 5.5 | 4.5 |
