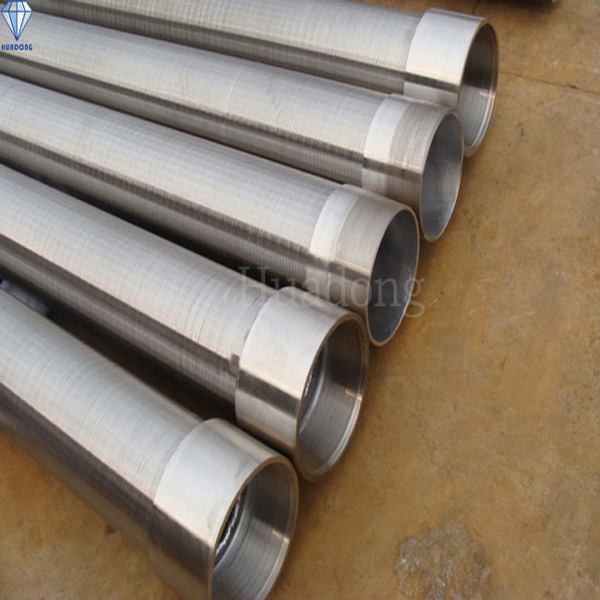

Wedge Wire Screen Tube
Wedge wire screen tubes are constructed from stainless steel wire for chemical stability and corrosion resistance. These tubes feature a trislot design and are available in common and perfect round types for various accuracy requirements.
Technical Specifications
Overview

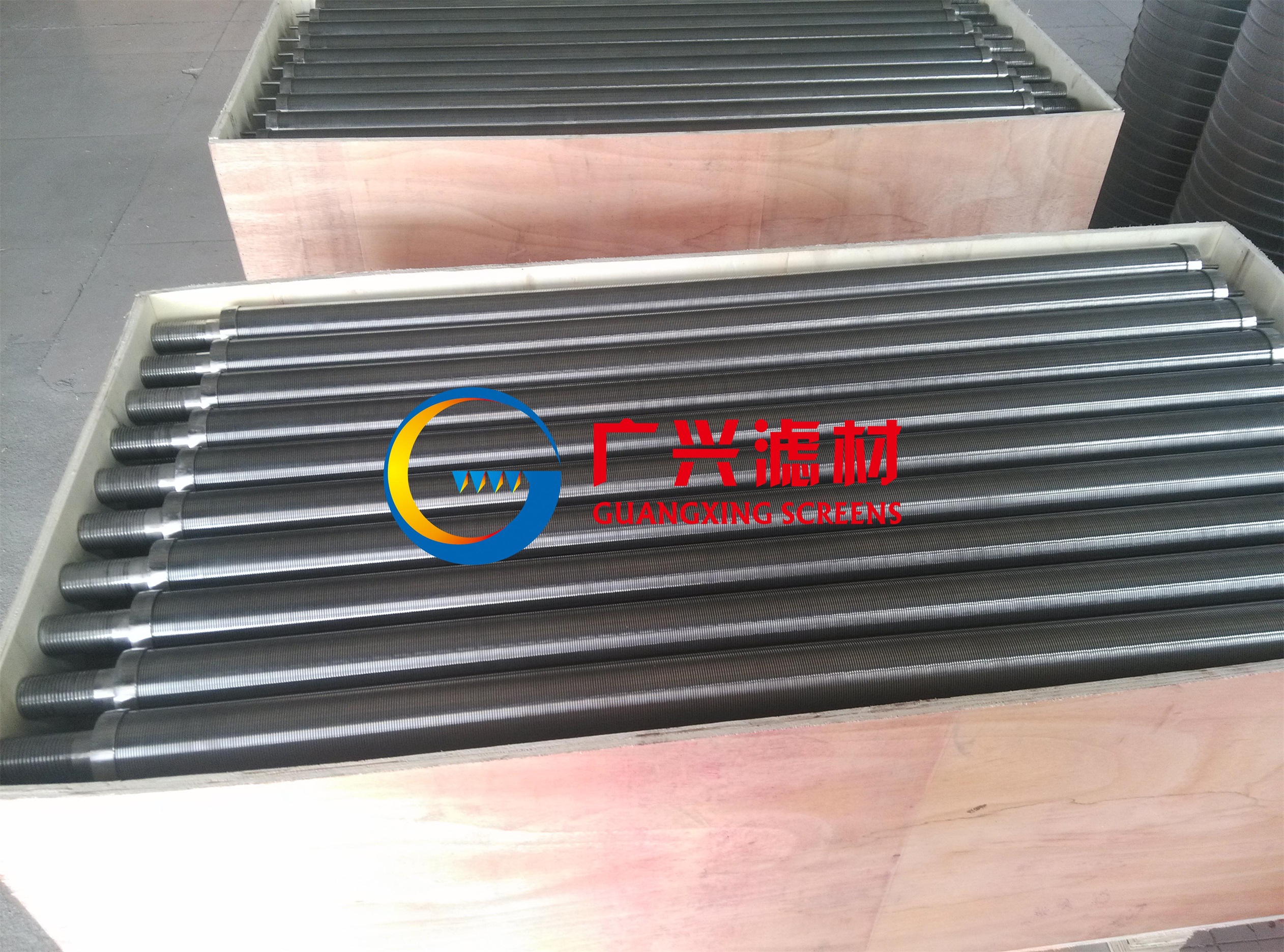

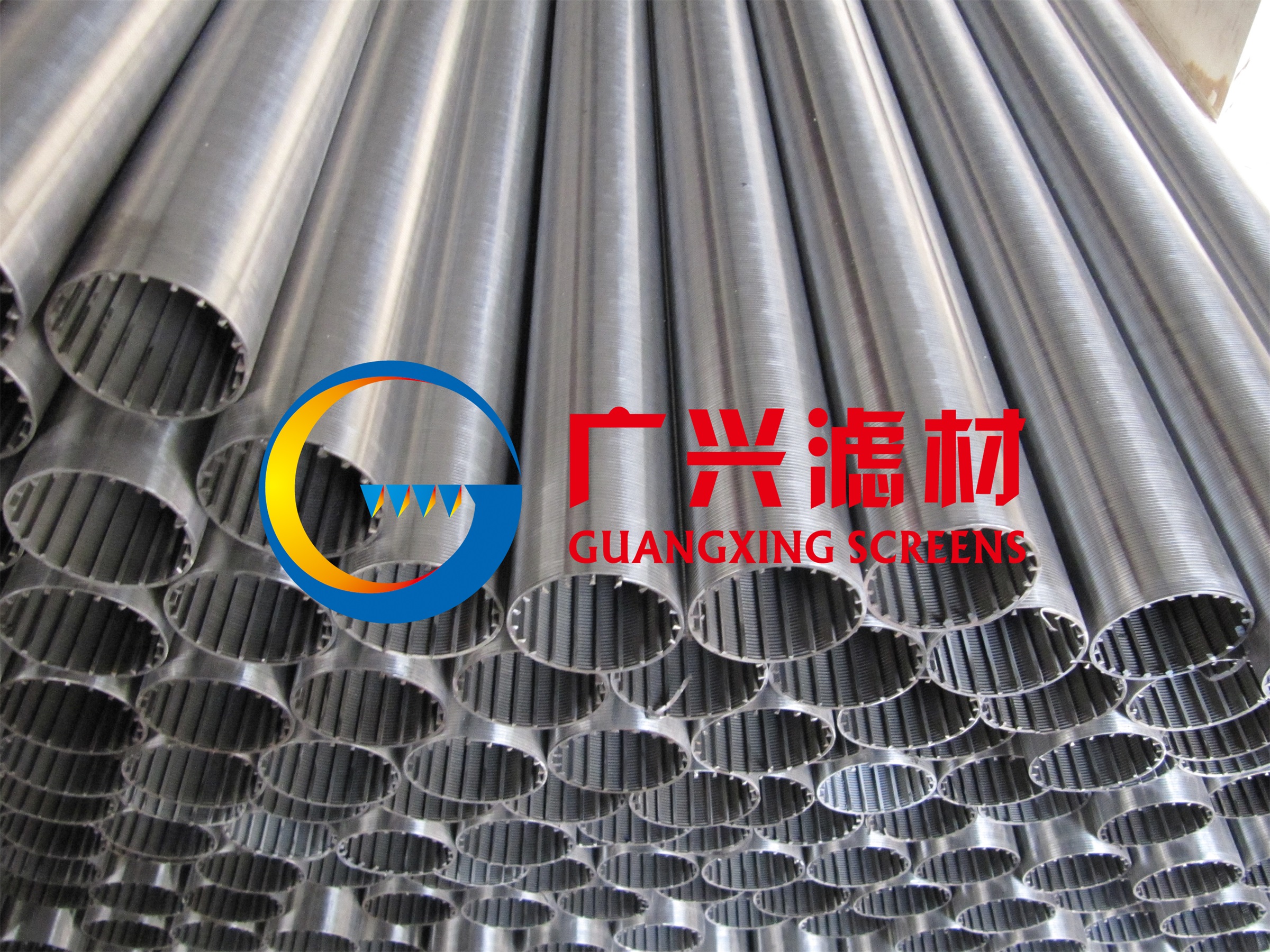

High-Performance Wedge Wire Slot Tubes
Wedge wire slot tubes, also known as trislot tubes, are engineered for high-precision filtration and separation. Constructed from spirally wound surface profiles welded onto support rods, these tubes offer exceptional structural integrity and chemical stability. They are available in both standard and high-accuracy 'perfect round' types to meet diverse industrial requirements.
Technical Specifications
Physical Dimensions
| Attribute | Range |
|---|---|
| Tube Diameter | 25mm - 1500mm |
| Tube Length | 0.3m - 2.5m |
| Slot Size | 0.015mm - 2.5mm |
Construction Details
- Surface Profile: Triangle Wire
- Support Profile: Triangle Wire, Round Wire, Flat Bar, or Wedge Wire
- Available Materials
- Stainless Steel 304Stainless Steel 304LStainless Steel 316Stainless Steel 316L2205 Austenitic Stainless SteelLow Carbon SteelHigh-Manganese SteelHastelloy
Key Features
Performance Features
100 %
Corrosion Resistance
1 High
Self-Cleaning Efficiency
Why Choose This Filter
- Accurate filtering performance
- High efficiency and throughput
- Narrow slot openings
- Customizable dimensions
- Excellent durability and long service life
Applications
Common Industry Applications
Petroleum IndustryWater TreatmentChemical ProcessingHydro-geological ExplorationDrilling ConstructionGeothermal Development
