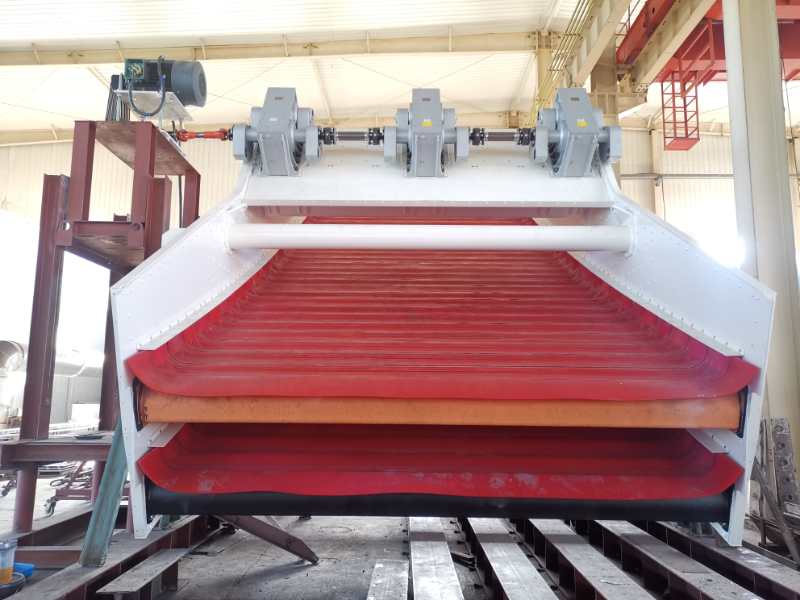

Double-Decker Banana Flip-Flop Vibrating Screen
This double-decker banana screen is designed for high-efficiency material separation. The flip-flop mechanism enhances screening efficiency and reduces clogging.
Technical Specifications
Overview
High-Efficiency Banana Flip-Flop Screen
This double-decker banana flip-flop screen is engineered for high-efficiency material separation in demanding mining and ore processing applications. The specialized banana design optimizes material bed depth and velocity, while the flip-flop mechanism significantly enhances screening efficiency and reduces clogging. Built for robust performance, this machine ensures reliable and consistent throughput in large-scale opencast mining environments.
Technical Specifications
- Model Number
- UFDB43100
- Operating Speed
- 712 RPM
- Motor Power
- 90 KW
- Total Weight
- 40000 Kg
- Dimensions (L x W x H)
- 10123 x 6528 x 6434 mm
Performance Metrics
Vibration Amplitude
9 mm
Fixed Frame Max
18 mm
Floating Frame Max
Application Details
Key Features
- Double-decker configuration for multi-size fraction separation
- Banana screen design for optimized material flow
- Flip-flop mechanism to minimize clogging
- Heavy-duty construction for mining environments
- Primary Applications
- Opencast MiningOre ProcessingMaterial Separation
