Weatherproof Electrical Plug
This weatherproof electrical plug is designed for reliable electrical connections in demanding environments. Its robust construction ensures protection against water and dust ingress for long-lasting performance.
Technical Specifications
Overview
Industrial Weatherproof Connection Solution

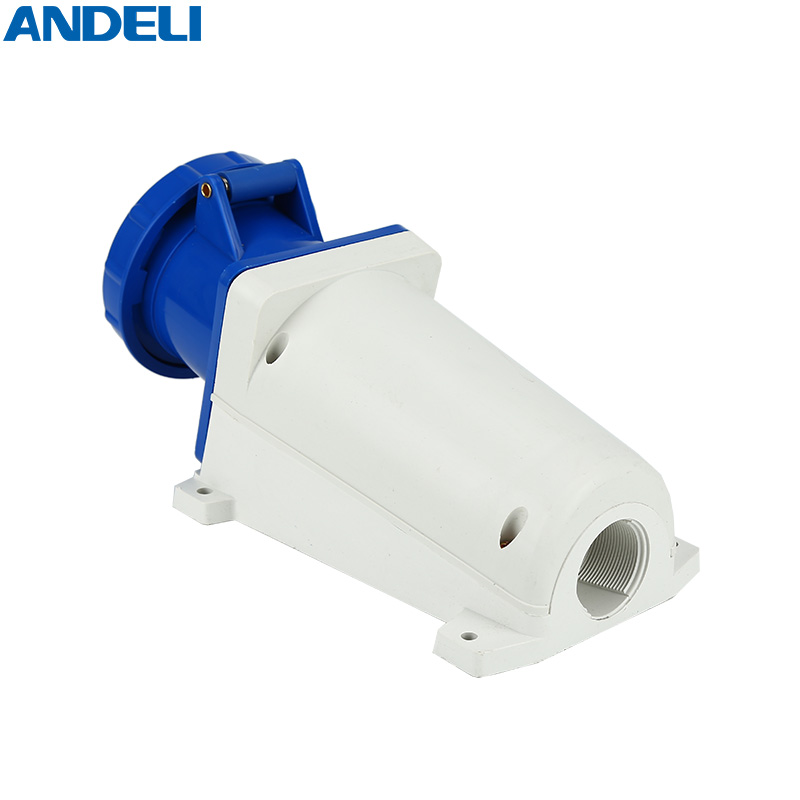

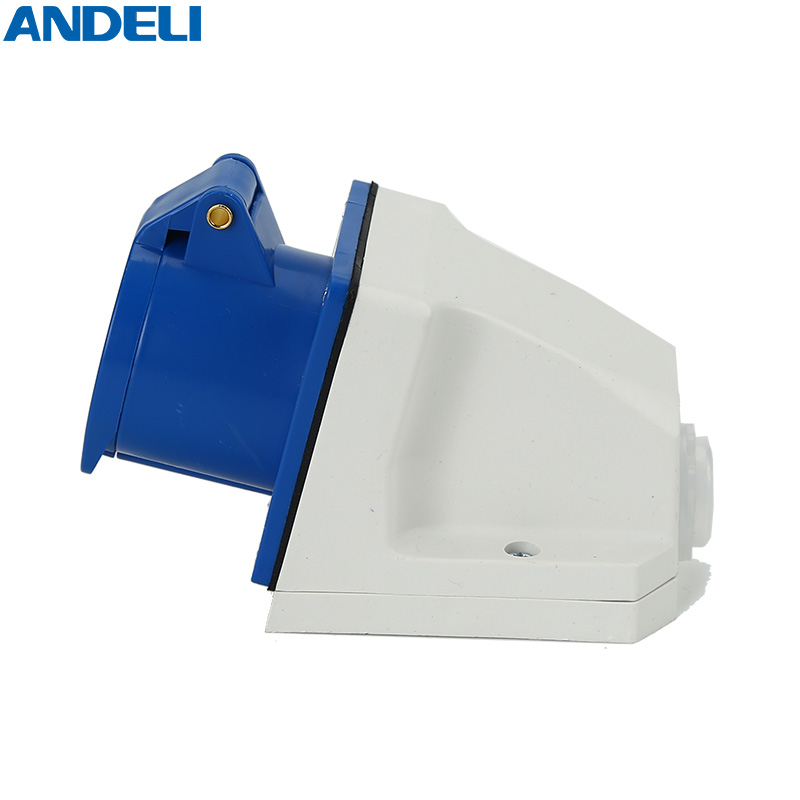

The AM series weather-proof plug is engineered for robust and reliable electrical connections in demanding industrial and outdoor environments. Its durable construction provides essential protection against dust and water ingress, ensuring long-lasting performance for power tools and transmission equipment. Featuring a secure locking mechanism and ergonomic design, it minimizes accidental disconnections while allowing for easy installation and removal.
Key Features
Ingress Protection
IP67WeatherproofDust-proof
Safety & Design
- Secure locking mechanism to prevent accidental disconnection
- Protective cover for water and dust resistance
- Ergonomic design for easy handling
- High-quality material construction
Technical Specifications
Rated Current Options
16 A
Minimum Current
125 A
Maximum Current

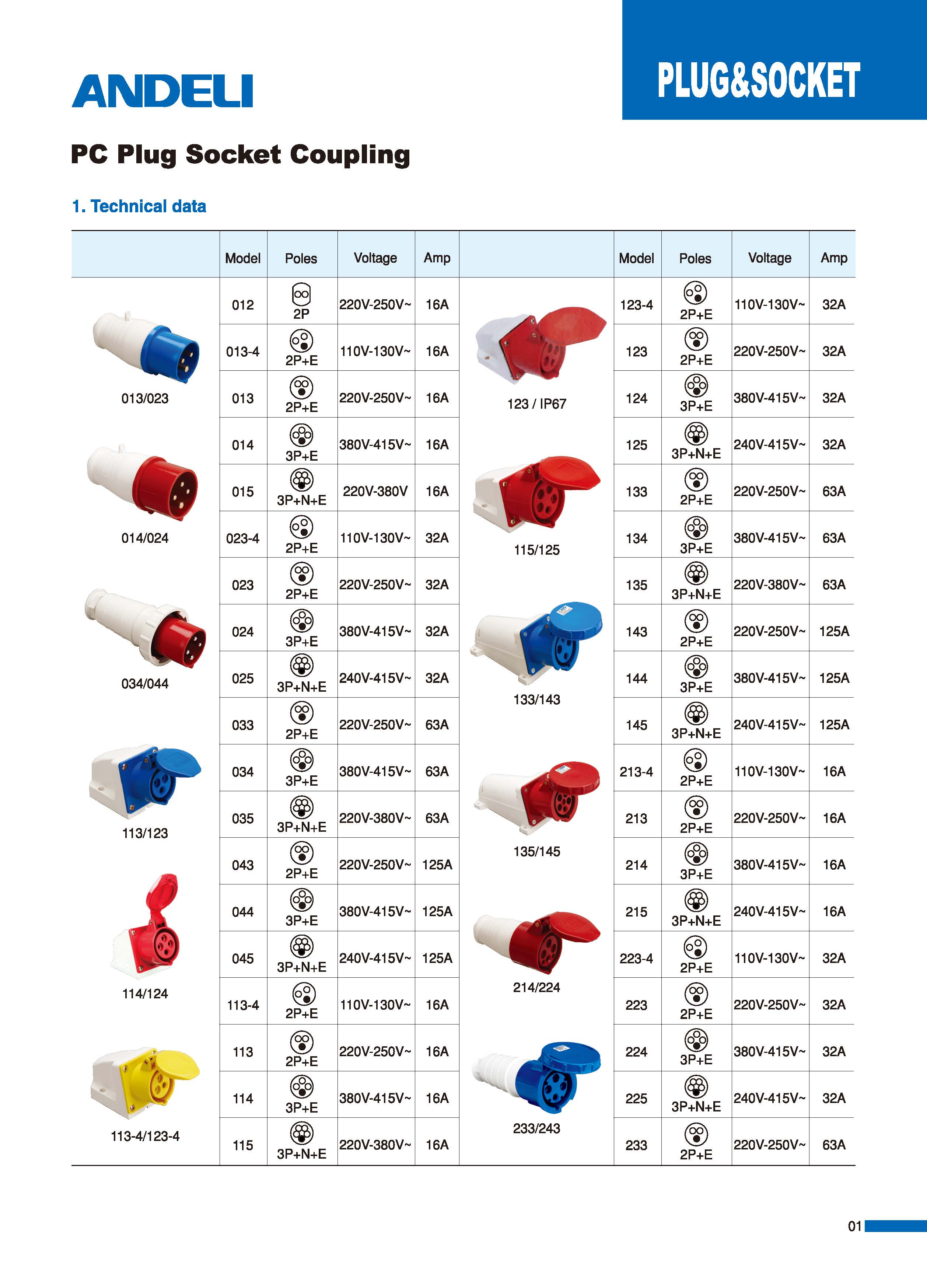

Model Specifications Reference
| Current (A) | Poles | Voltage (V) |
|---|---|---|
| 16 | 2P+E | 220V-250V |
| 32 | 3P+E | 380V-415V |
| 63 | 3P+N+E | 220V-380V |
| 125 | 3P+N+E | 240V-415V |
- Voltage Range
- 110V-130V~220V-250V~380V-415V~220V-380V~240V-415V~
- Available Poles
- 2P2P+E3P+E3P+N+E
Applications
Recommended Applications
- Electric power tools
- Industrial power distribution
- Outdoor electrical installations
- Commercial transmission equipment
