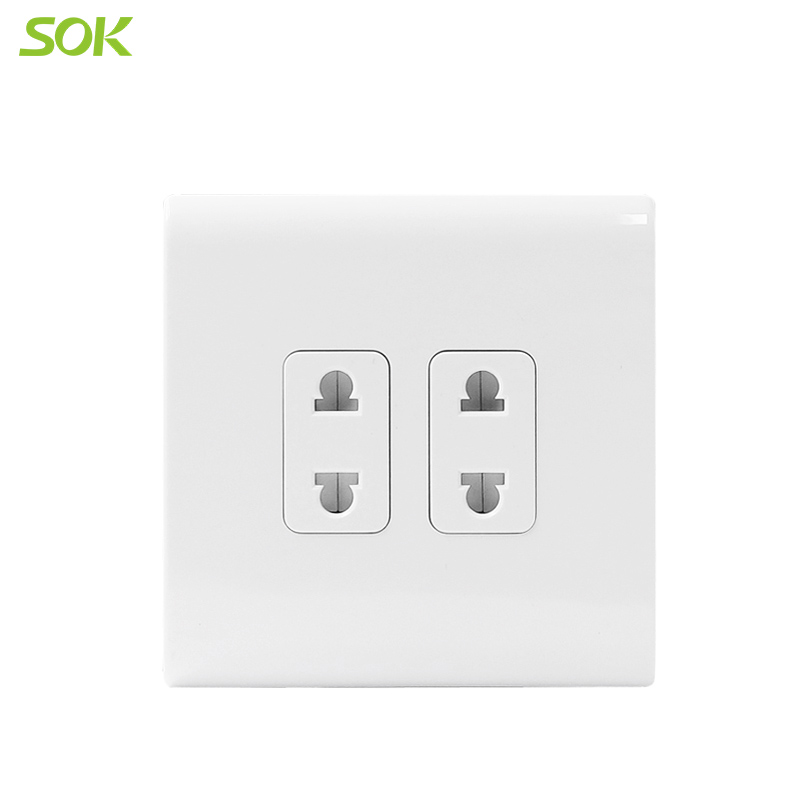

2-Gang 2-Pin 10A 250V Socket Outlet
This 2-gang socket outlet is rated for 10A at 250V. It features a slim profile, smooth edges, and child-proof shutters for enhanced safety.
Technical Specifications
Product Overview
Premium 2-Gang 2-Pin Socket Outlet
This 10A 250V socket outlet features a slim, modern profile with a glossy finish and concealed fixing screws for a clean aesthetic. Built with high-polymer fire-resistant PC material and child-proof shuttered outlets, it ensures a safe and durable solution for residential and commercial environments. The design prioritizes easy installation with large wiring space and a convenient locking mechanism between the cover plate and chassis.
Technical Specifications
Electrical Ratings
10 A
Rated Current
250 V
Rated Voltage
60 Hz
Frequency
- Network Frequency
- 50/60Hz
- Number of Gangs
- 2
Design & Construction
- Construction Materials
- PCPPCopperBrass ContactsZinc-plated Screws
- Physical Dimensions
- 86mm x 86mm
- Embedding Depth
- 20 mm
Installation & Safety
Safety & Protection
- Child-proof shuttered outlets
- Fire-resistant material (850℃)
- Earthed metal frame
- IP20 protection degree
Mounting & Connection
| Feature | Specification |
|---|---|
| Mounting Type | Flush wall mounted |
| Fixing Mode | Concealed screws (M3.5) |
| Terminal Type | Screw pillar terminal (M3*6.5mm) |
Environment & Standards
Compliance Standards

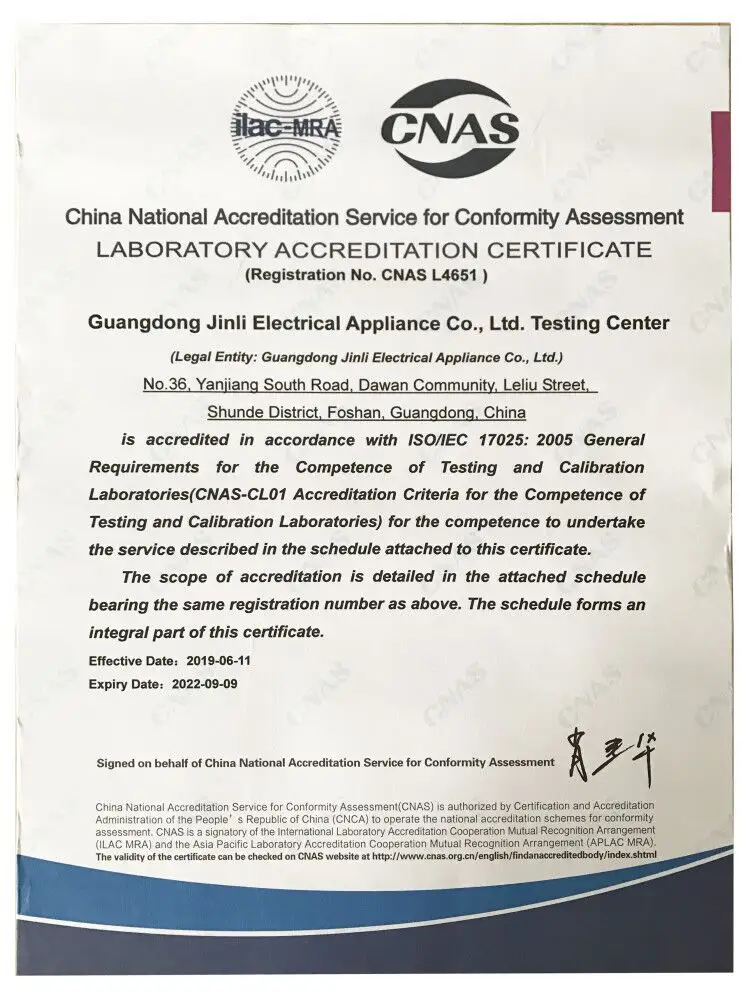

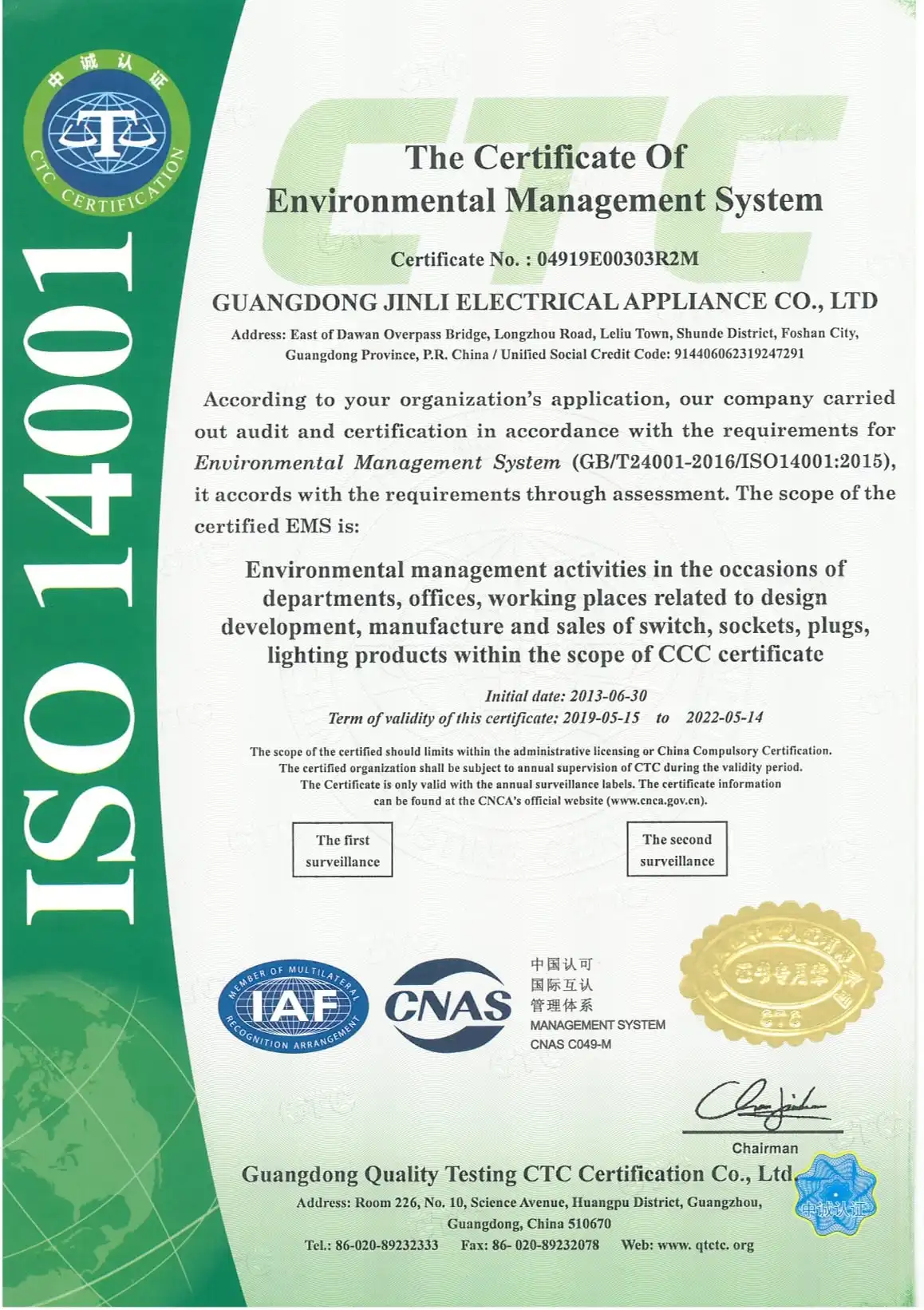

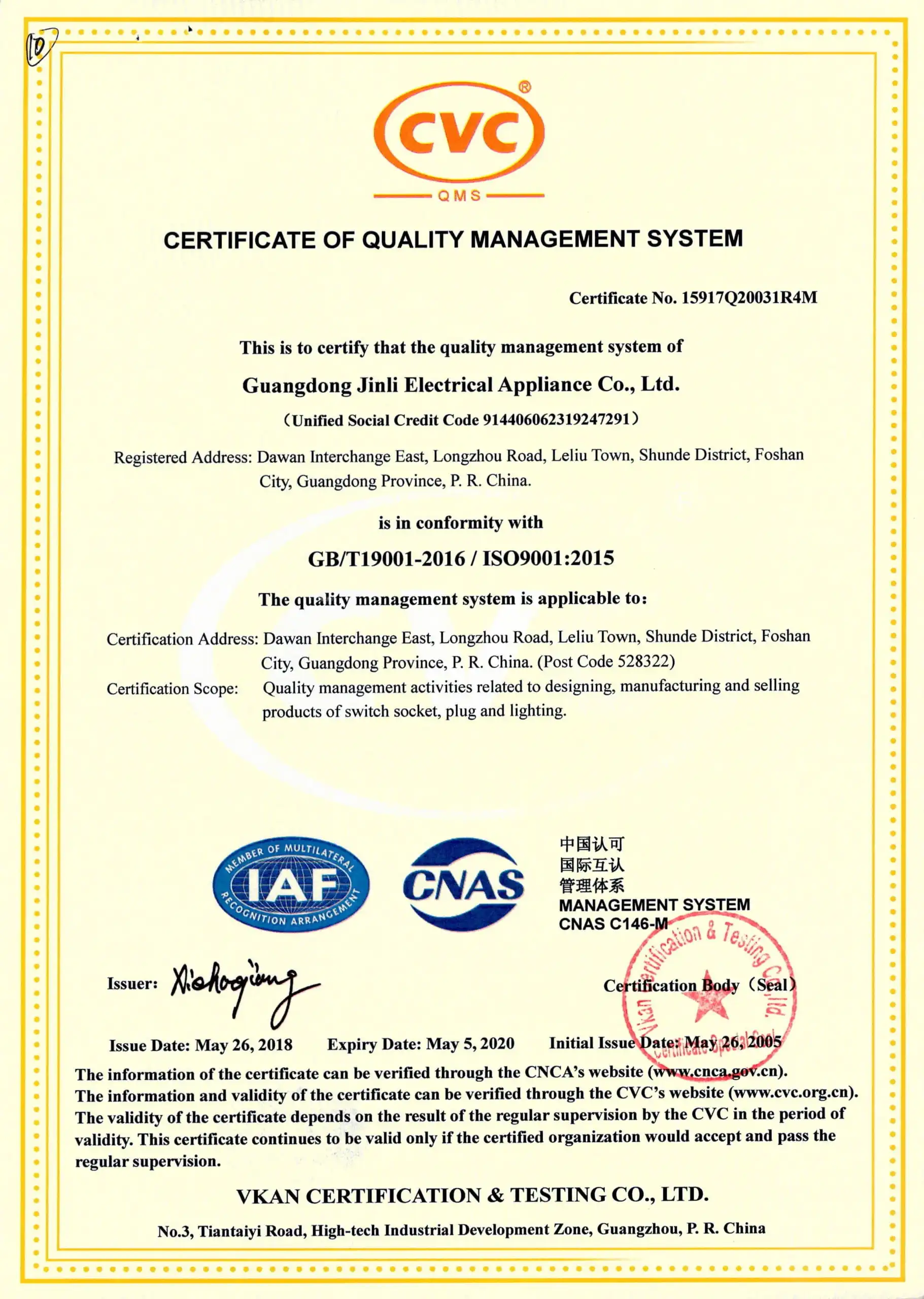

British StandardISO 9001:2015ISO 14001:2015CNAS Certified Lab Tested
- Operating Temperature
- -5°C to 40°C
- Recommended Applications
- ResidentialCommercialHotelsHospitalsIndustrial
Manufacturing & Warranty
- Contractual Warranty
- 10-year worry-free warranty
- Monthly Production Capacity
- Over 10 million pieces
