Waxed Chipboard Screw
These pozi-drive chipboard screws are designed for secure fastening in wood and composite materials. The waxed coating minimizes driving torque, ensuring smooth installation.
Technical Specifications
Product Overview
High-Performance Pozi-Drive Chipboard Screws
These professional-grade chipboard screws are engineered for secure and efficient fastening in wood and composite materials. Featuring a specialized waxed coating, they significantly minimize driving torque to ensure smooth installation and reduce tool wear. The sharp point design facilitates easy starting while minimizing the risk of material splitting, making them ideal for high-precision furniture assembly and general woodworking tasks.
Material & Design
- Key Features
- Pozi-drive RecessWaxed CoatingReduced FrictionSplit-resistant Tip

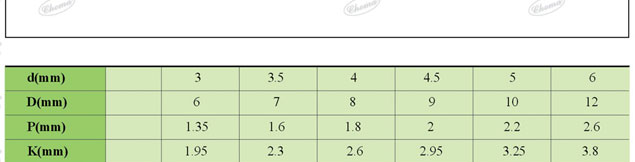

Technical Dimensions
Standard Dimensional Specifications
| Diameter d (mm) | Head D (mm) | Pitch P (mm) | Height K (mm) |
|---|---|---|---|
| 3 | 6 | 1.35 | 1.95 |
| 3.5 | 7 | 1.6 | 2.3 |
| 4 | 8 | 1.8 | 2.6 |
| 4.5 | 9 | 2.95 | 2.95 |
| 5 | 10 | 2.2 | 3.25 |
| 6 | 12 | 2.6 | 3.8 |

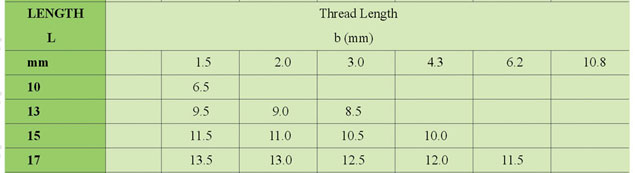

Thread Specifications
Thread Length (b) vs Screw Length (L)
| Length L (mm) | Thread Length b (mm) |
|---|---|
| 10 | 6.5 |
| 13 | 9.5 |
| 15 | 11.5 |
| 17 | 13.5 |
