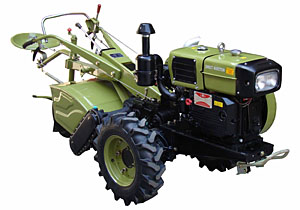

Walking Tractor
The walking tractor is a versatile agricultural machine designed for various farming tasks. Its compact design allows for maneuverability in tight spaces, making it suitable for small to medium-sized farms.
Technical Specifications
Overview
Versatile Agricultural Walking Tractor
This walking tractor is a robust, single-axle, dual-purpose machine designed for both traction and drive applications on small to medium-sized farms. Featuring a powerful horizontal 4-stroke diesel engine, it offers reliable performance for a variety of tasks including plowing, tilling, and transport. Its compact design and adjustable handlebars ensure excellent maneuverability in confined spaces and operator comfort during extended use.
Performance Metrics
Engine Power Ratings
12.65 hp
1-Hour Rated Output (DF-12L)
11.29 hp
12-Hour Rated Output (DF-12L)
14.3 hp
1-Hour Rated Output (DF-15L)
13.33 hp
12-Hour Rated Output (DF-15L)
Technical Specifications
Machine Dimensions and Weight
| Metric | DF-12L | DF-15L |
|---|---|---|
| Structure Weight (kg) | 353 | 363 |
| Working Weight w/ Rotavator (kg) | 493 | 508 |
| Rototilling Width (mm) | 600 | 600 |
| Overall Dimensions (mm) | 2680x960x1250 | 2680x960x1250 |
Optional Farm Implements
- Anti-skid steel wheel Model 100-640
- Double-furrow plough Model 1LS-220
- Disk plough Model 1LS-220Y
- Power driven disk plough Model 1LYQ-320
- Sprinkler Model 8Y-80
- Swather/reaper Model 4GL-120
- Trailer 7C-1.5 (Standard)
- Trailer 7C-1.5BH (Hydraulic)
Operational Details
- Transmission and Cooling
- Horizontal 4-strokeCondenser CoolingBelt-drivenMultiple forward/reverse gears
