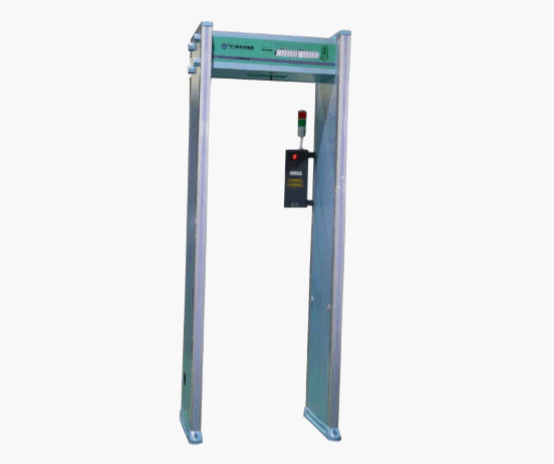

Walk-Through Temperature Screening Door
This walk-through temperature screening door uses thermal infrared imaging to detect elevated body temperatures. It provides a fast, non-contact method for screening individuals in public venues.
Technical Specifications
Overview
High-Efficiency Temperature Screening
This walk-through temperature screening door utilizes advanced thermal infrared imaging technology to provide rapid, non-contact body temperature monitoring. Designed for high-traffic environments, it ensures efficient flow with a capacity of 40-60 people per minute. The system features an adjustable, ergonomic design to accommodate different heights, ensuring accurate and reliable inspection for every individual.
Performance & Features
Passing Rate
40 people/min
Minimum
60 people/min
Maximum
Working Modes
- Normal passing mode
- Slow side mode
- Stop and stay mode
- Detection Distance
- 0.5 m
- Power Consumption
- 13 W
- Key Features
- Thermal ImagingUltrasonic PositioningReal-time TrackingIntelligent StatisticsSound & Light AlarmAdjustable Sensitivity
Technical Specifications
Operating Environment
| Parameter | Value |
|---|---|
| Working Temperature | -20 ~ 55 °C |
| Working Humidity | 95% (non-condensing) |
| Voltage | AC220V, 50Hz |
- Measurement Range
- 25°C - 48°C
- Measurement Error
- ± 0.5°C
- Physical Dimensions
- 1990 x 700 x 510 mm
