Parking Barrier Gate with Advertising Display
This parking barrier gate provides automated vehicle access control. It features an integrated advertising panel for displaying promotional content.
Technical Specifications
Overview

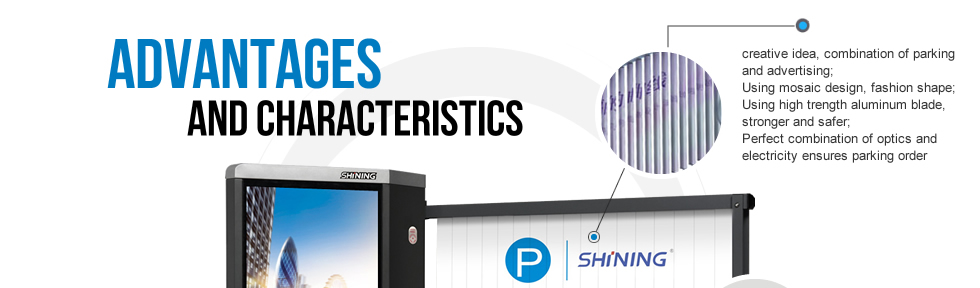

Innovative Dual-Purpose Barrier Gate
This advanced parking barrier gate integrates high-visibility advertising displays directly into the boom arm, transforming standard access control into a revenue-generating asset. Built with a high-torque, low-noise motor, the system is designed for 100% duty cycles and heavy-duty usage ranging from 5 to 8 million cycles. Its robust design combines durability with automated fault-detection and safety sensors for reliable, round-the-clock performance in demanding commercial environments.
Technical Specifications
Key Performance Metrics
140 W
Motor Power
30 m
Remote Control Range
5 s
Standard Opening Speed
Environmental Resilience
- Operating Temperature: -30℃ to +80℃
- Relative Humidity: ≤95%
- Input Voltage: 220V +10%

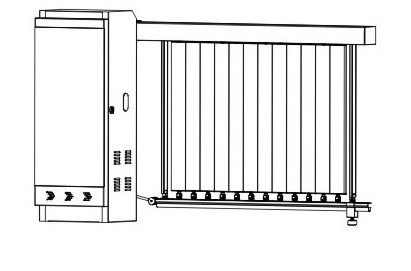

Barrier Physical Data
| Dimension | Value |
|---|---|
| Unit Dimensions | 450mm * 800mm * 1245mm |
| Beam Center Height | 1050mm |
| Max Boom Length | 3.7 meters |

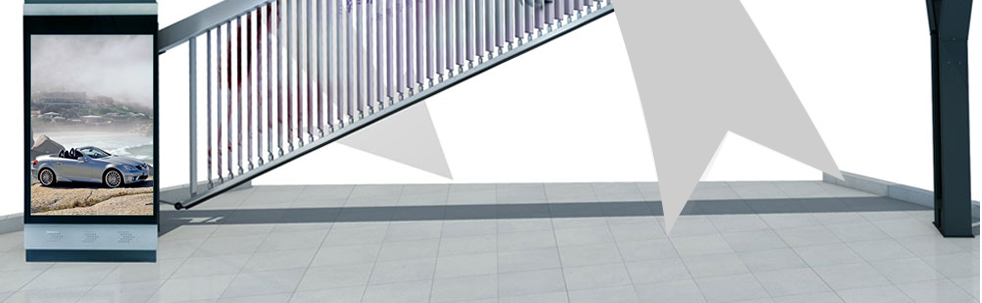

Advertising Display
Display Configuration
| Boom Length | Panel Quantity | Board Dimensions |
|---|---|---|
| 3.2M | 29 | 2730mm * 830mm |
| 3.7M | 34 | 3280mm * 830mm |
Features
- Core Functionalities

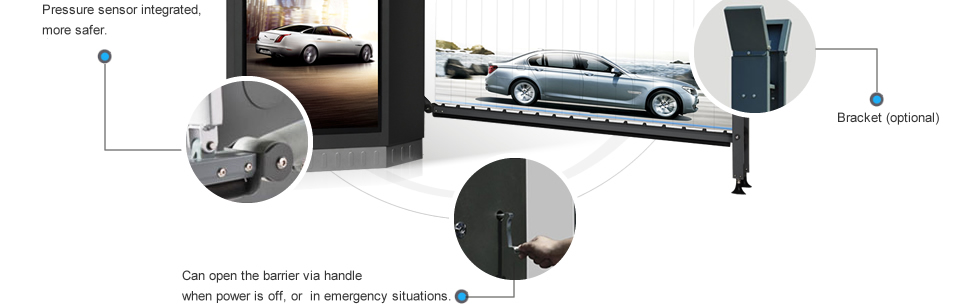

- Auto Fault-Detect100% Duty CycleRS485 CommunicationManual Emergency ReleaseIntegrated Pressure Sensors
