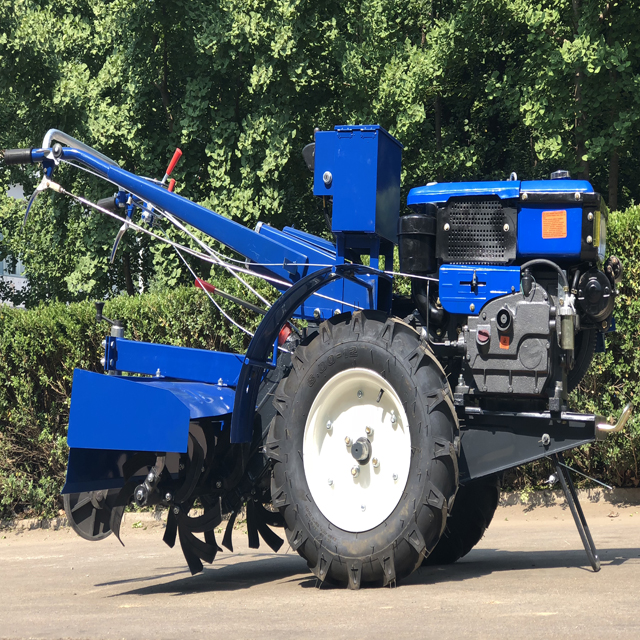

Walk-Behind Tractor for Agriculture

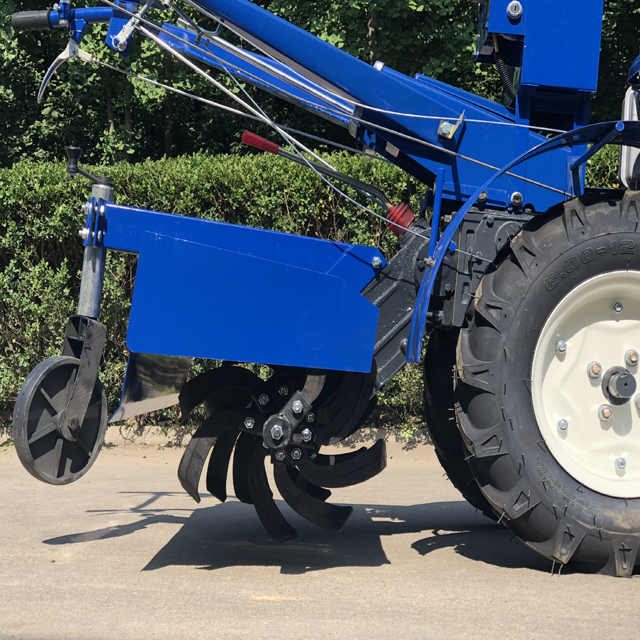

This walk-behind tractor is a robust machine designed for various agricultural tasks. Equipped with a powerful engine and adjustable rotary tiller, it offers exceptional performance and efficiency in tilling, plowing, and cultivating soil.
Technical Specifications
Product Overview
Versatile Walk-Behind Tractor
This walk-behind tractor offers a robust solution for diverse agricultural needs, compatible with diesel engines ranging from 8HP to 18HP. Designed for simplicity and ease of use, it is ideal for paddy fields, dry land, and orchards in both flat and mountainous regions. With support for multiple implements, it serves as a multi-functional workhorse for tasks including ploughing, sowing, harvesting, and irrigation.
Engine Specifications
Rated Power
5.88 kw
Rated Power
2,000 rpm
Rated Speed
- Engine Model
- R180 Diesel
- Engine Type
- Single cylinder, 4-stroke, diesel
Technical Performance
Dimensions & Physical Specs
| Attribute | Value |
|---|---|
| Overall Dimensions (LxWxH) | 2950 x 980 x 1240 mm |
| Working Weight | 430 kg |
| Net Weight | 510 kg |
| Ground Clearance | 210 mm |
Forward Speeds
- 1.39
- 2.47
- 4.15
- 5.14
- 9.12
- 15.3
Key Features
- Suitable Terrain
- Paddy FieldsDry LandOrchardsMountain AreasPlains
- Supported Applications
- PloughingTrenchingSowingHarvestingIrrigationTransportation
- Night Operation Ready
- Yes
