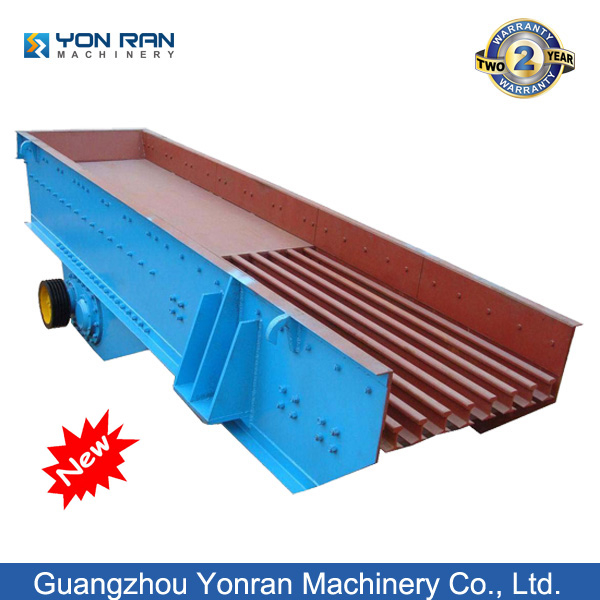

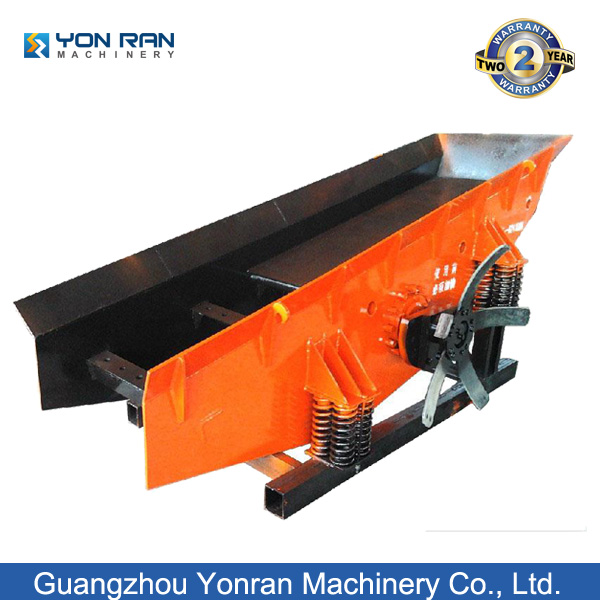

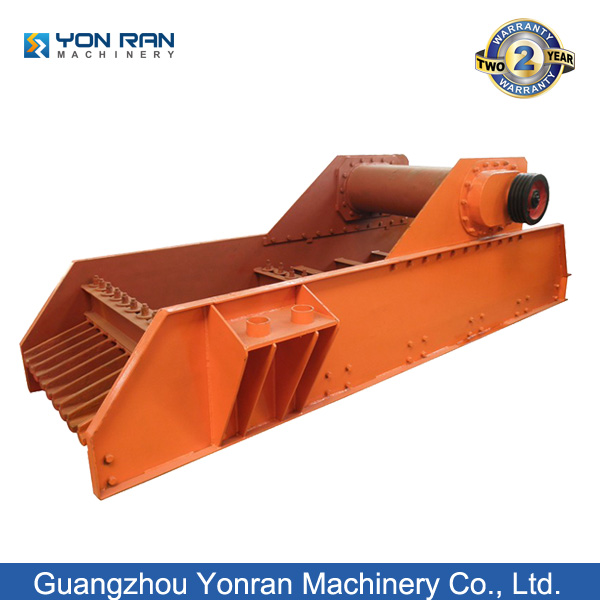

Vibrating Feeder for Stone and Rock
This vibrating feeder ensures stable operation and a long service life. It is designed for easy adjustment, reliable performance, and minimal maintenance.
Technical Specifications
Product Overview
High-Efficiency Vibrating Feeder
This vibrating feeder is designed for stable, long-term operation in demanding stone and rock processing environments. It features a reliable, low-noise vibration mechanism that ensures consistent material flow to crushers and other downstream equipment. The unit is easy to maintain, offers simple adjustment capabilities, and operates in a pollution-free manner to support eco-friendly industrial sites.
Key Features
- Benefits
- Long service lifeLow noise operationEasy maintenancePollution-freeAdjustable flow
Technical Specifications
Model Specifications
| Model | Size | Max Feed (mm) | Capacity (t/h) | Power (kW) | Weight (kg) |
|---|---|---|---|---|---|
| GZD-850x3000 | 850x3000 | 400 | 80-120 | 7.5 | 3,895 |
| GZD-960x3800 | 960x3800 | 500 | 120-210 | 11-15 | 3,980 |
| GZD-1100x4200 | 1100x4200 | 580 | 200-430 | 11-15 | 4,170 |
| GZD-1100x4900 | 1100x4900 | 580 | 280-500 | 15-18.5 | 4,520 |
| GZD-1300x4900 | 1300x4900 | 650 | 450-600 | 18.5-22 | 5,200 |
Warranty
Quality Certification
2-Year Quality WarrantyISO9001 CertifiedEU CE Certified
