Vertical Turbine Fire Pump
This fire pump set is engineered to meet fire pump standards. It consists of impellers, guide casings, water pipes, transmission shafts, pump base motors and other components.
Technical Specifications
Product Overview
Professional Deep Well Fire Pump
This deep well fire pump set is engineered in compliance with GB6245-2006 performance requirements for fire protection equipment. The unit utilizes a multi-stage centrifugal impeller and guide casing design to provide consistent flow and pressure for industrial and commercial fire suppression. With a modular structure involving the pump base, motor, and transmission shafts, it is designed for reliable installation above water sources.
Technical Standards
- Certifications
- GB6245-2006Fire Protection Certified
Operating Conditions
- Max Water Temperature
- 40 °C
- pH Range
- 6.5 - 8.5
- Max Solid Content
- 0.01 %
- Max Hydrogen Sulfide
- 1.5 mg/L
Construction Details
System Architecture
- Working Part (Guide shell, Impeller, Tapered sleeve, Shaft)
- Water Pipe Part (Transmission shaft, Couplings, Brackets)
- Well Upper Part (Base, Motor, Motor bracket)
- Shaft Material Options
- 2Cr13Stainless Steel
Performance Data
- Available Capacity Ranges
- 1-5 L/S10-15 L/S20-15 L/S40-80 L/S90-110 L/S
Installation Data

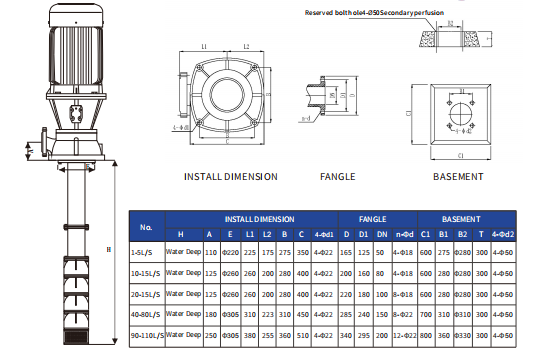

Installation Dimensions Reference
| Capacity | H Dimension | A Dimension | E Dimension |
|---|---|---|---|
| 1-5 L/S | 110 | 220 | 225 |
| 10-15 L/S | 125 | 260 | 260 |
| 20-15 L/S | 125 | 260 | 260 |
| 40-80 L/S | 180 | 305 | 310 |
| 90-110 L/S | 250 | 305 | 380 |
