Vertical Shaft Engine 79cc-224cc
This vertical shaft engine is designed for lawn and garden equipment. It features overhead valve (OHV) technology for increased efficiency and reduced emissions.

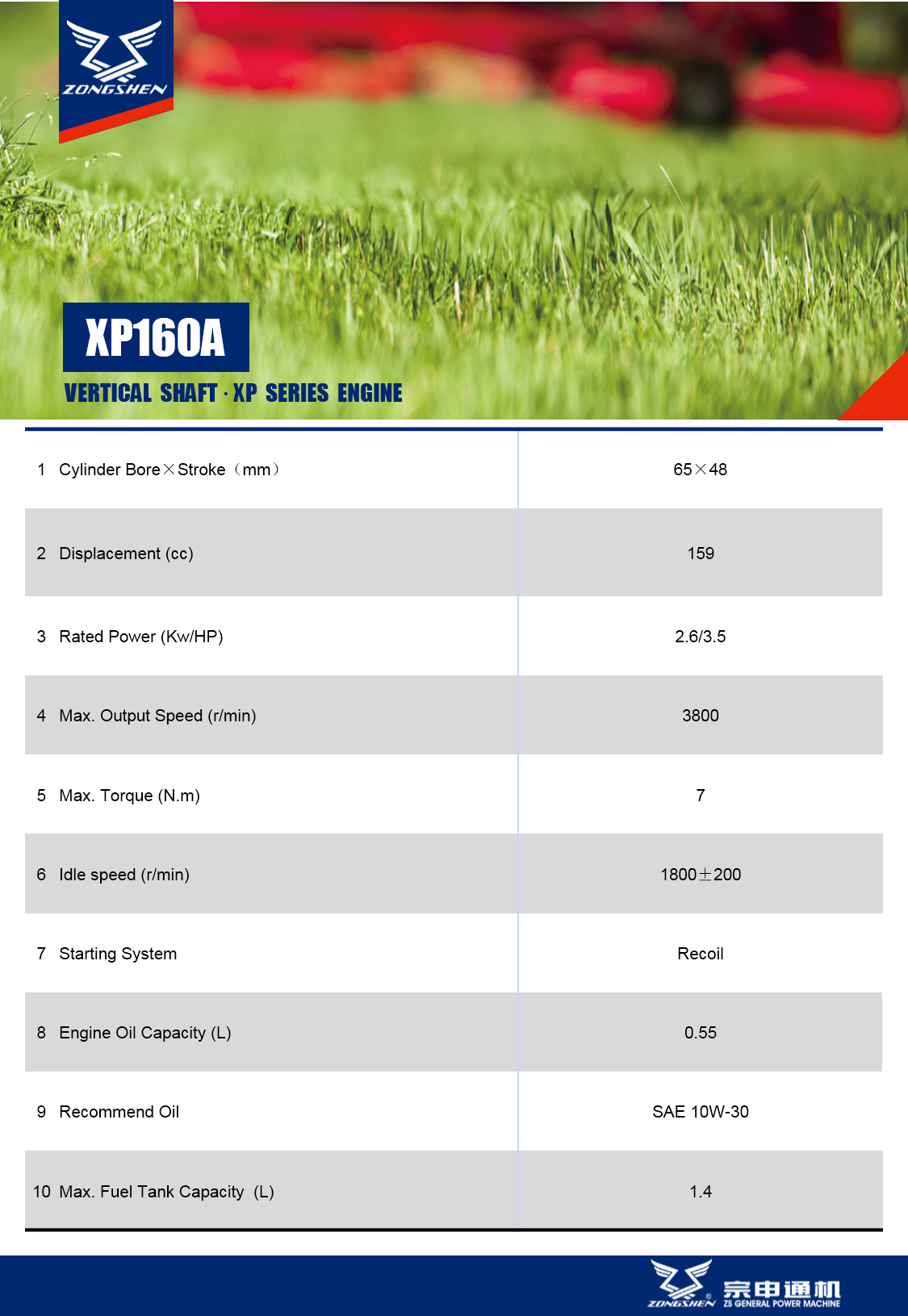

Technical Specifications
Product Overview
High-Performance Vertical Shaft Engine
This vertical shaft engine is engineered for reliable operation and excellent performance in lawn and garden equipment. Utilizing advanced overhead valve (OHV) technology, it delivers increased efficiency and reduced emissions for modern outdoor power applications. The unit features an easy-start system for consistent performance and a durable construction designed to extend the service life of your equipment.
Technical Specifications
Rated Power
2.6 kW
Rated Power
3.5 HP
Rated Power
Performance Metrics
| Metric | Value |
|---|---|
| Max Output Speed | 3800 r/min |
| Max Torque | 7 N.m |
| Idle Speed | 1800±200 r/min |
Physical Dimensions
- Bore x Stroke: 65 x 48 mm
- Engine Oil Capacity: 0.55 L
- Fuel Tank Capacity: 1.4 L
- Displacement Range
- 79cc - 224cc
Operation & Maintenance
Starting System
RecoilEasy Start
- Recommended Oil
- SAE 10W-30
Applications
- Suitable Applications
- Lawn MowersTillersOutdoor Power Equipment
